Multi-Pole Breakers - EMPORIA VUE Installation Manual

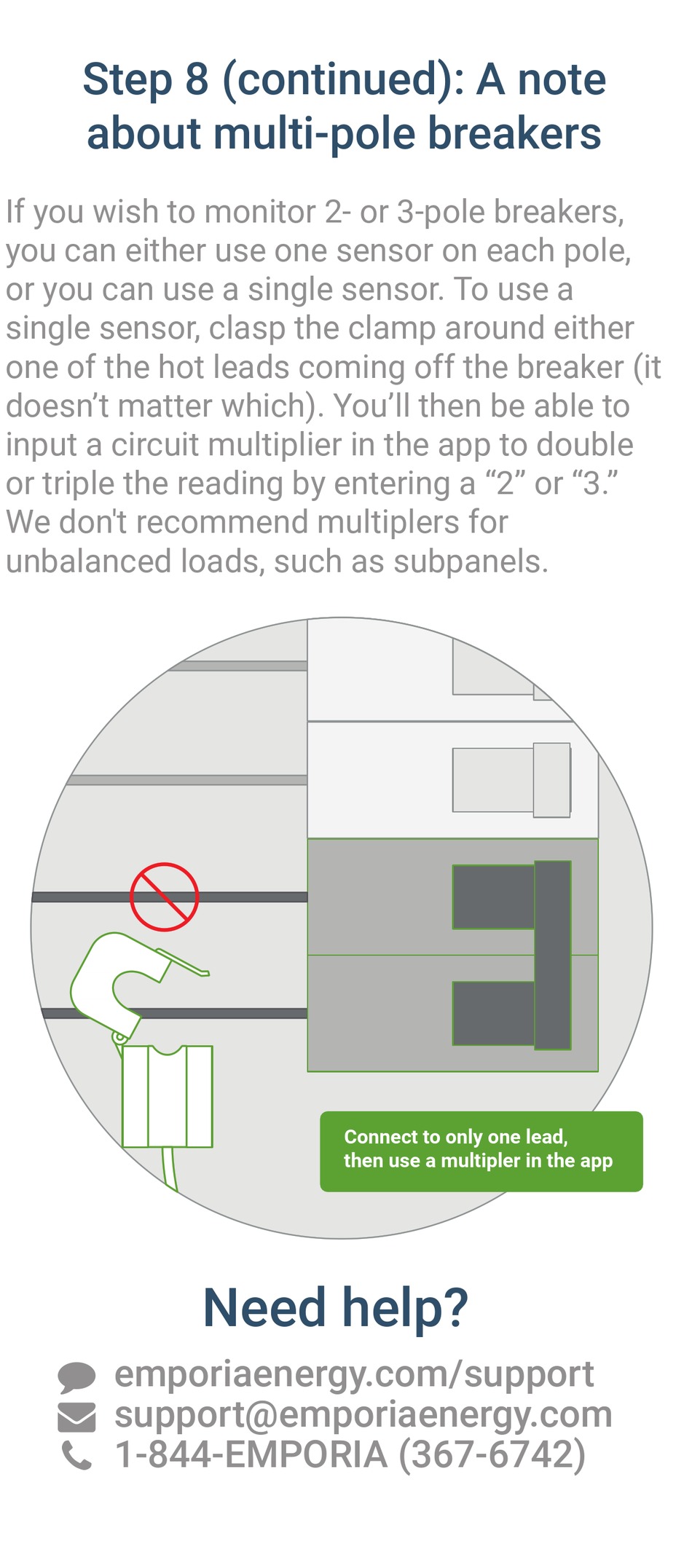

Step 8 (continued): A note
about multi-pole breakers
If you wish to monitor 2- or 3-pole breakers,
you can either use one sensor on each pole,
or you can use a single sensor. To use a
single sensor, clasp the clamp around either
one of the hot leads coming off the breaker (it
doesn't matter which). You'll then be able to
input a circuit multiplier in the app to double
or triple the reading by entering a "2" or "3."
We don't recommend multiplers for
unbalanced loads, such as subpanels.
emporiaenergy.com/support

support@emporiaenergy.com

1-844-EMPORIA (367-6742)

Need help?
Connect to only one lead,
then use a multipler in the app
