Step 5: Plug in and connect
the 200A current sensors

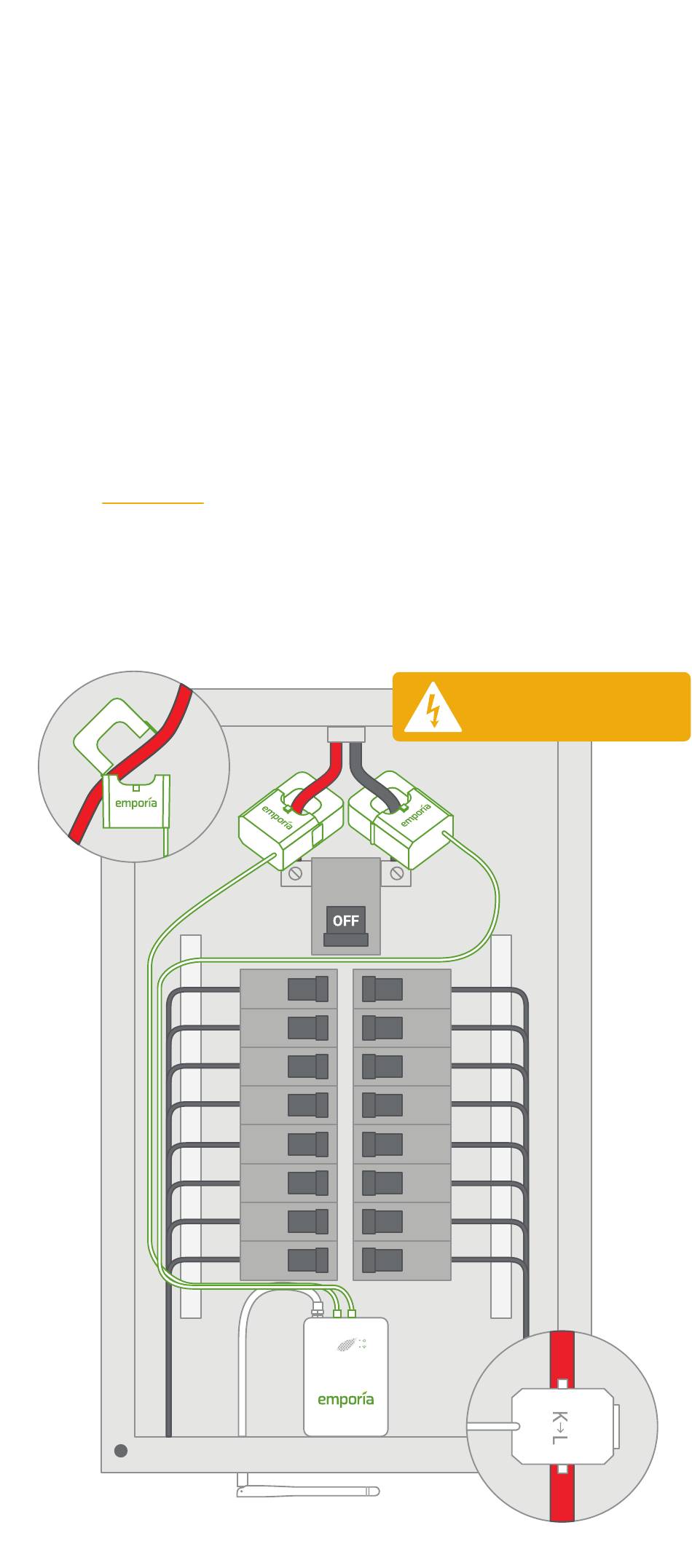

Your system will have 1, 2, or 3 main service
cables (a typical 2-main system is shown
below). Open the clasps on the sensors and
place each sensor clamp around one of the
main service cables. Then shut the clasps to
secure the sensors.
imprint on the bottom of the sensors should
point toward the breakers.
200A current sensor plugs into the ports on
the top of the energy monitor.
IMPORTANT! The K→L
Then, insert the
WARNING: The service
mains are always live!
Meter
Breakers
