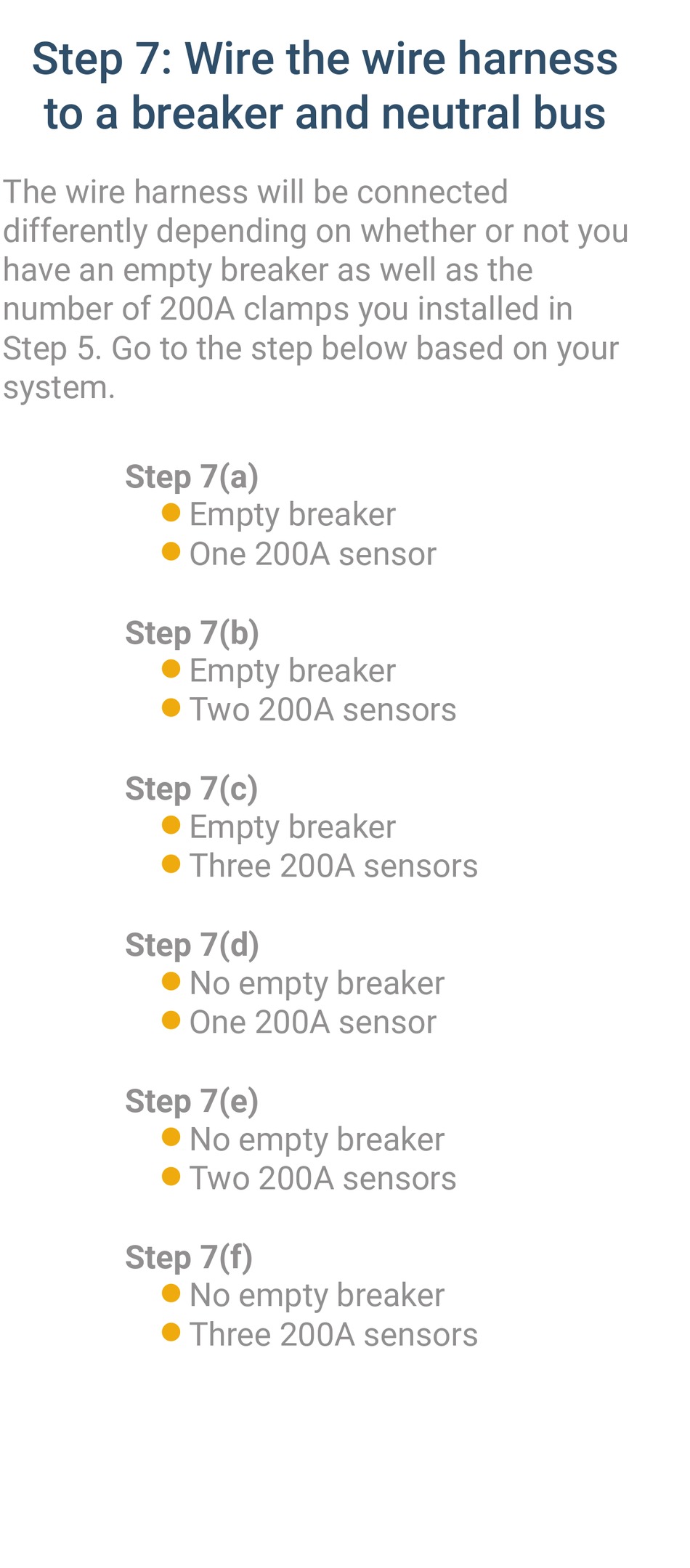

Step 7: Wire the wire harness
to a breaker and neutral bus
The wire harness will be connected
differently depending on whether or not you
have an empty breaker as well as the
number of 200A clamps you installed in
Step 5. Go to the step below based on your
system.
Step 7(a)
Empty breaker

One 200A sensor

Step 7(b)
Empty breaker

Two 200A sensors

Step 7(c)
Empty breaker

Three 200A sensors

Step 7(d)
No empty breaker

One 200A sensor

Step 7(e)
No empty breaker

Two 200A sensors

Step 7(f)
No empty breaker

Three 200A sensors

