SR-WM-PPH Series

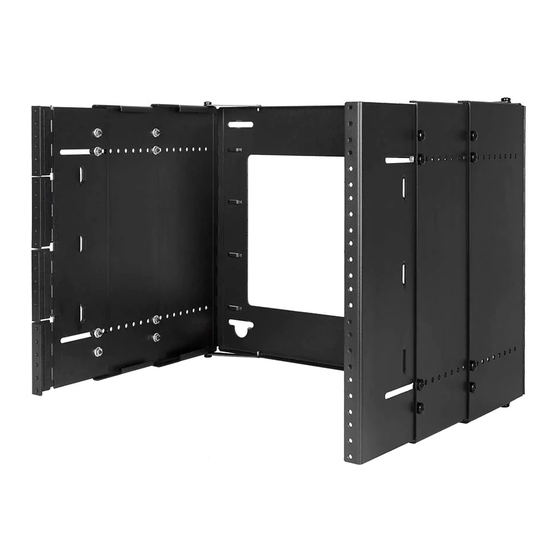

Wall-Mount Adjustable-Depth Patch Panel Rack
Package Contents
• 1 × Wall Mount Patch Panel Rack
• 1 × Mounting Template
• 5 × 8×63mm Lag Bolts (A)
• 5 × 8.4×19×2mm Lag Bolt Washers (B)
• 44 × #10-32 Screw with Washers (C)
• 4 × Hook and Loop Strips (D)
• 5 × Concrete Anchors (E)
Package Contents
• 1 × Wall Mount Patch Panel Rack
• 1 × Mounting Template
• 5 × 8×63mm Lag Bolts (A)
• 5 × 8.4×19×2mm Lag Bolt Washers (B)
• 28 × #10-32 Screw with Washers (C)
• 4 × Hook and Loop Strips (D)
• 5 × Concrete Anchors (E)
• 8 × #10-32 Flange Nuts
Package Contents
• 1 × Wall Mount Patch Panel Rack
• 1 × Mounting Template
• 5 × 8×63mm Lag Bolts (A)
• 5 × 8.4×19×2mm Lag Bolt Washers (B)
• 44 × #10-32 Screw with Washers (8 preinstalled) (C)
• 4 × Hook and Loop Strips (D)
• 5 × Concrete Anchors (E)
• 8 × #10-32 Flange Nuts
Tools Required for Installation
• Power Drill
• 3/32" drill bit
• Phillips screwdriver
• 1/2" (13mm) wrench
SR-WM-PPH-8U-6-15
Maximum Weight
Capacity: 35lbs
SR-WM-PPH-4U-6-15
Maximum Weight
Capacity: 35lbs
SR-WM-PPH-2U-6
Maximum Weight
Capacity: 35lbs
• level
• stud finder
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Strong SR-WM-PPH Series
Summary of Contents for Strong SR-WM-PPH Series
- Page 1 SR-WM-PPH Series Wall-Mount Adjustable-Depth Patch Panel Rack Package Contents • 1 × Wall Mount Patch Panel Rack • 1 × Mounting Template • 5 × 8×63mm Lag Bolts (A) • 5 × 8.4×19×2mm Lag Bolt Washers (B) • 44 × #10-32 Screw with Washers (C) •...
- Page 2 Mounting This product is designed to mount on a wood or sheetrock wall. Maximum Weight Capacity: 35lbs 1. Locate the studs in the wall to be used for mounting. 2. Place the cutout template in the desired position. Ensure it is level. 3.
- Page 3 Adjustment The 4U and 8U models are equipped with extendable sides. These can be adjusted in or out to hold needed equipment or to minimize the space the rack occupies. The mount comes with two screws installed on each of the sides. Remove these to extend the arms. When extending the sides, best practice is to extend the middle section first, and the final section last.
- Page 4 Snap One, LLC (formerly known as Wirepath Home Systems, LLC), in the United States and/or other countries. Control4 and Strong are also registered trademarks or trademarks of Snap One, LLC. Other names and brands may be claimed as the property of their respective owners. Snap One makes no claim that the information contained herein covers all installation scenarios and contingencies, or product use risks.
