1) INSTALLATION

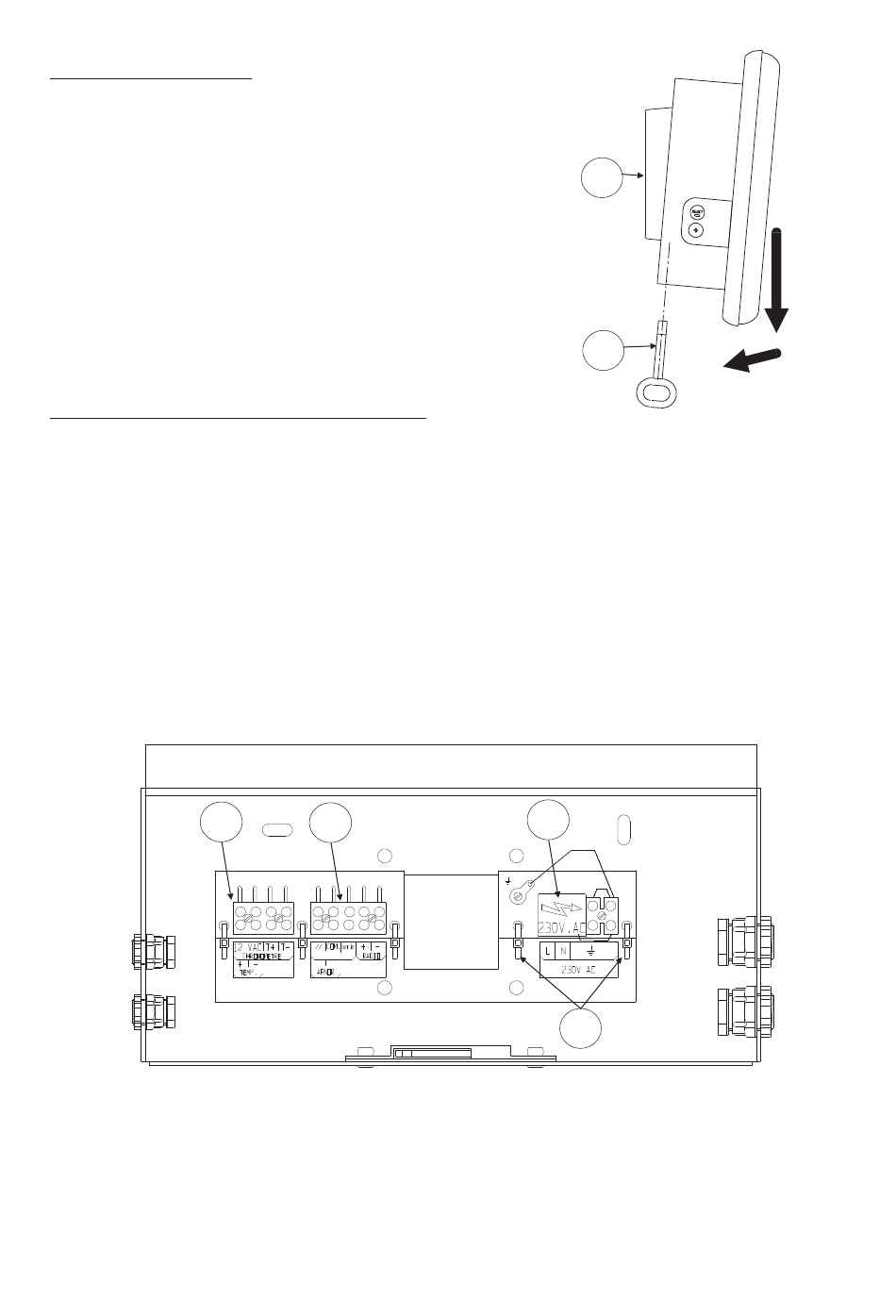

Unhook the wall support (A) from the clock using the
key (B), then remove the plug-in connectors.
Fix the support (A) to the desired spot using the 4 wall
plugs and the 4 screws provided.
- Hooking onto a vertical bracket or side bracket :
support (A) fits onto bracket reference no. 935001, and
also to the chain suspension reference no. 935002.
- A table support is also available, reference no. 935003.

2) ELECTRICAL POWER SUPPLY

- Remove the black protective cover on the terminal block (C). Connect the mains power
supply - 115 or 230 Volts 50/60 Hz depending on the model - to the terminal block
(maximum wire cross section 1.5 mm
Replace the protective cover. Block the wires with cable clamps (S).
N.B.: The Style clocks have been designed for a mains power supply of 115 or 230 Volts
+/- 10 % (depending on the model). This clock is protected by a 1,25 A - 250 V fuse (F1).
The mains supply unit for this clock must include a 10 A interlocked circuit breaker.
This circuit breaker has to be switched off in case of maintenance operation.
E.g. 230 V clocks will work equally well in countries where the nominal mains voltage is 220
or 240 Volts.
E
- If the clock is a part of a time distribution network, or if it has a built in radio antenna (Radio
FI or DCF) or to a timer control unit, please follow the instructions in Chapters 3 to 7.
- Carry out configuration, set the time and adjust the clock's light intensity as indicated in
Chapters 8 to 10.
- If the display "sticks" at a particular time, check that the operating mode that you have
selected is "Ind" (cf. Chapter 8).
