Supplement

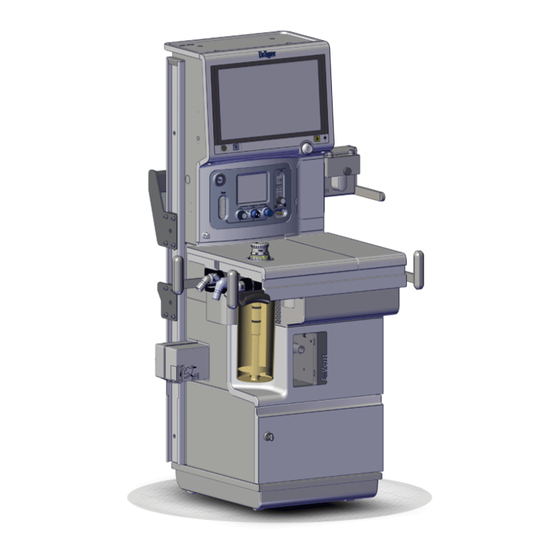

Atlan

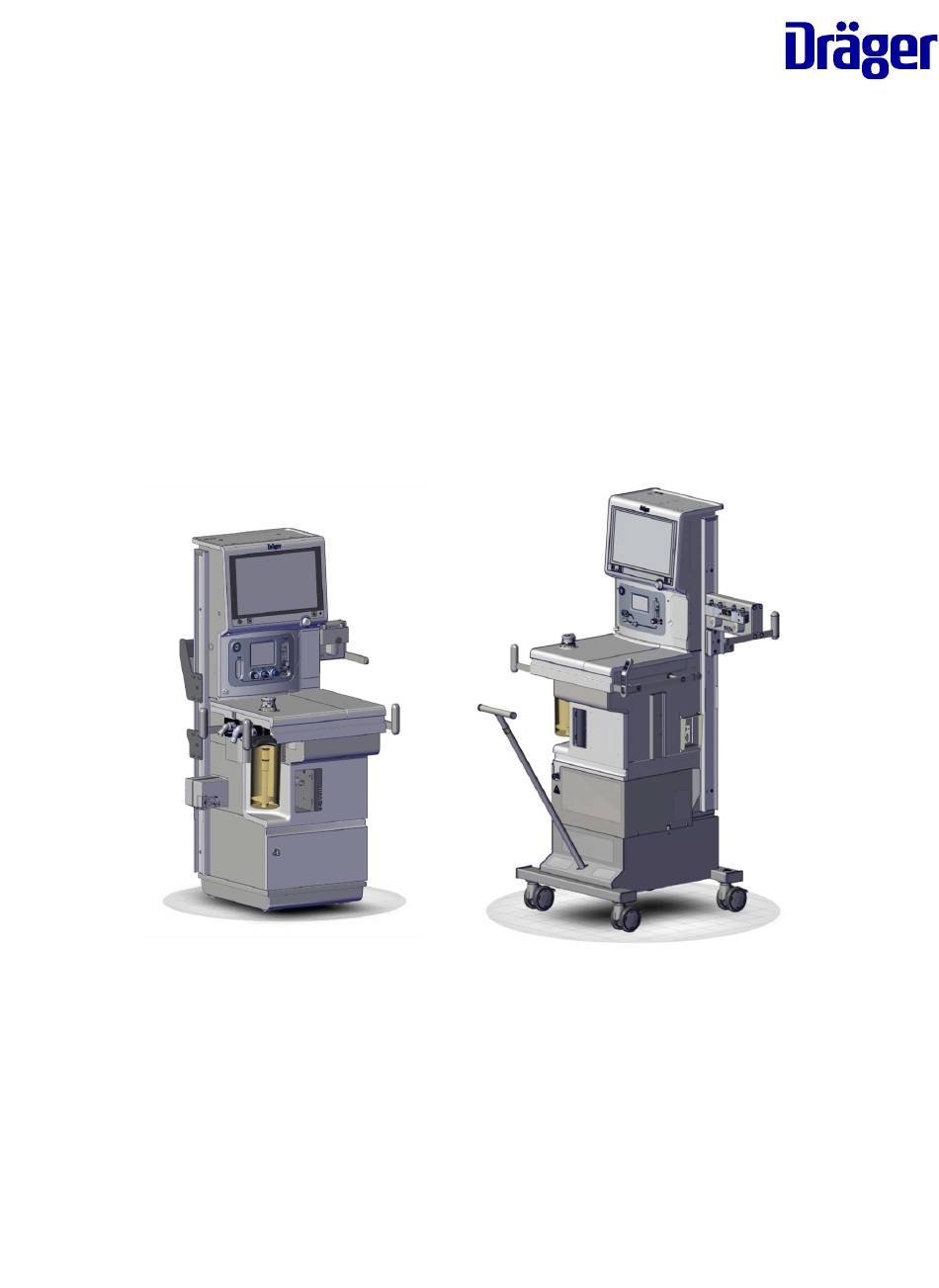

A300, A350 ceiling-mounted versions and wall-mounted
version
WARNING
To properly use this medical device,
read and comply with
the instructions for use and this
supplement.
Anesthesia workstation
Atlan A300, A350 ceiling-mounted versions and wall-mounted version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Atlan A300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dräger Atlan A300

Summary of Contents for Dräger Atlan A300

  • Page 1 Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version Anesthesia workstation WARNING To properly use this medical device, Atlan A300, A350 ceiling-mounted versions and wall-mounted version read and comply with the instructions for use and this supplement.

  • Page 2: Table Of Contents

    Contents Contents Atlan A300, A350 ceiling-mounted versions and wall-mounted version Anesthesia workstation Supplement to the instructions for use..........Information about this document ............Typographical conventions ............. Illustrations..................Product variants for the ceiling or wall version ....... Safety-related information............... User group requirements ..............
  • Page 3 Safety instructions ................Definition of service terminology............. Inspection ..................8.3.1 Safety checks ..............Maintenance ................... Repair ..................... Technical data ..................Operating characteristics ..............10 Annex ......................10.1 Symbols ..................10.2 Product labels ................. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 4: Supplement To The Instructions For Use

    This symbol indicates information that will facilitate the use of the product. Illustrations Illustrations of products and screen content in this document may differ from the actual products depending on configuration and design. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 5: Product Variants For The Ceiling Or Wall Version

    – Each user group has been trained to perform the task. – Each user group has read and understood the relevant chapters in this document. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 6: User Groups

    Warning sign Signal word Consequences of non-compliance WARNING May result in death or serious injury. CAUTION May result in moderate or minor injury. NOTICE May result in property damage. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 7: Safety Instructions

    Modifications to the product may lead to malfunctions and unforeseen risks. This may result in injury to the patient or the user or in property damage. ► Do not modify this product. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 8: Ceiling-Mounted Version With Service Cart

    (functions dependent on the type of the ceiling supply unit). Connectors Provides connectors for power cable, potential equalization, and interfaces. Used for data exchange between external devices, additional components, and net- works. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 9: Rear

    Ceiling-mounted version with service cart 4.1.2 Rear Designation Description Mount Used for docking to the ceiling supply unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 10: Service Cart

    Patients may not be connected to the ceiling-or-wall version while it is attached to the service cart. Designation Locking lever Key holder Push bar Guide plate Double castor with brake Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 11: Key Switch

    Horizontal position Enables docking and operation of other trolley versions of Dräger devices, e.g., the ceiling- mounted version of Atlan with integrated castors. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 12 Horizontal position Enables docking and operation of other trolley versions of Dräger devices, e.g., the ceiling- mounted version of Atlan with integrated castors. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 13: Assembly And Preparation

    Keep the key in a safe place, e.g., on the service cart. ► Make sure that the key switch is only in the diagonal position for docking or undocking when necessary. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 14 This transport position is required for inclines greater than 5°. ► Take particular care when moving the device, as it can tip over under certain circumstances. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 15: Combination With Ceiling Supply Units

    Combination with ceiling supply units The ceiling-or-wall version can be docked to suitable ceiling supply units. To do this, the media column on the ceiling supply unit must be fitted with a key switch (1). Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 16: Docking To The Ceiling Supply Unit

    2. Check that the floor below the ceiling supply unit is level and cleared. There must be no objects below the ceiling supply unit. 3. Check the distance (4) between the ceiling supply unit and the floor. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 17 Using the arrow keys (6), position the ceiling supply unit so that the lower edge of the mount (7) on which the trunnions are located is approximately 85 cm (33.5 in) above the floor. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 18 Ceiling-mounted version with service cart 5. Fold down the support flap (8). 6. Use the service cart to push the device to the ceiling supply unit. Pay attention to the direction of pushing. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 19 8. Insert the push bar in the hole provided on the service cart and lock it by turning it clockwise. 9. Align the mount (9) on the device over the trunnions (10) on the ceiling supply unit. Engage the brakes on the service cart. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 20 Establish the connection (14) to the central gas supply system. c. Establish the power supply (15). d. Establish further cable connections if necessary. 12.Set the key switch (16) to the diagonal position and hold it there. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 21 During the upward movement of the ceiling supply unit, make sure that the mount on the device is aligned over the trunnions on the ceiling supply unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 22 ► Make sure that the key switch is in the vertical position. 14.Set the key switch (20) to the vertical position. Remove the key and fasten it to the key holder (21). Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 23 Moving the locking lever requires a certain amount of force. 16.Press the Up arrow key (24). If the ceiling supply unit does not move upwards, the device has been incorrectly docked. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 24 17.Stop lifting once the device has been lifted completely out of the service cart. 18.Release the brakes on the service cart. 19. Push the service cart to the parking place provided. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 25: Undocking From The Ceiling Supply Unit

    5. Using the arrow keys (1), position the ceiling supply unit so that the bottom edge of the device is within the area marked with green arrows (2) on the service cart. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 26 ► Take care that your hands do not get into the area between Atlan and the service cart. 6. Push the service cart underneath the device from the front until the guide plate (4) is touching the housing (5). Engage the brakes. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 27 If the LED is red, lift the ceiling supply unit until the LED turns green. 9. Lock the locking lever (7). To do this, move the locking lever to position (8). Moving the locking lever requires a certain amount of force. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 28 11. Fully lower the ceiling supply unit. a. Set the key switch (11) to the diagonal position and hold it there. b. Press the Down arrow key (12) on the control panel. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 29 Disconnect the connection (14) to the central gas supply system. c. Unplug the system cable (15). d. Disconnect any other cable connections. 14.Bring the key switch (16) back to its vertical position. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 30 16.Release the brakes. 17.Pull the device away from the ceiling supply unit. If necessary, remove the push bar. 18.Move the device to the desired location. Pay attention to the direction of pushing. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 31: Operating Concept

    Down arrow key for lowering the ceiling supply unit ● Keep key (3) or (4) pressed and then release it as soon as the ceiling supply unit has reached the desired position. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 32 Meaning Green LED flashing. The control system of the ceiling supply unit has a mal- function. Red LED lights. The device is not properly connected mechanically with the ceiling supply unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 33: Wall-Mounted Version

    Wall-mounted version Wall-mounted version Overview 5.1.1 Front Designation Description Remote control The remote control is only functional in combination with a ceiling supply unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 34: Rear

    Wall-mounted version 5.1.2 Rear Designation Description Mount Used for docking to the wall mount. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 35: Wall Mount

    Allows moving the lifting unit upward or downward by means of a crank handle. Ventilation slots Provided for the exchange of air. Potential equalization pin Allows connecting the potential equalization cable. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 36: Service Cart

    ► The device may only be docked, undocked, and moved by appropriately trained personnel. ► While a patient is connected to the device, it is forbidden to adjust the height of the device. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 37 ► Make sure that there are no objects in the area underneath the device when lowering the unit. The device may hit the obstacle, be knocked off the mount and fall down. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 38: Docking To The Wall Mount

    ► If neither of these options is feasible, the compressed gas hose for oxygen can be detached from the central gas supply system and connected to a suitable compressed gas cylinder. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 39 5. Using the crank handle, lower the lifting unit of the wall mount until the trunnions are below the level of the mount on the device. 6. Insert the push bar in the hole provided on the service cart and lock it by turning it clockwise. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 40 8. Using the crank handle (7), move the lifting unit upward. During the upward movement of the lifting unit, make sure that the mount on the device is aligned above the trunnions (8) on the lifting unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 41 If the service cart is lifted together with the device, the service cart may fall down and cause personal injury and property damage. ► Unlock the service cart to ensure that it will not be lifted with the device when the lifting unit is moved upward. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 42 12.Using the crank handle, continue to raise the device. 13.Stop lifting once the device has been lifted completely out of the service cart. 14.Release the brakes on the service cart. 15.Push the service cart to the parking place provided. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 43 This may cause the stop screw to break. WARNING Danger due to unauthorized use Leaving the crank handle on the wall mount may lead to personal injury or property damage. ► Always remove the crank handle after use. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 44: Undocking From The Wall Mount

    6. Insert the push bar in the hole provided on the service cart and lock it by turning it clockwise. Move the service cart to the device. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 45 8. Push the service cart underneath the device from the front until the guide plate (3) touches the housing (4). Engage the brakes. 9. Use the crank handle (5) to lower the device until it is resting on the service cart. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 46 The device may tip over if it is not properly secured. ► Before finally undocking the device, make sure that the locking lever has been moved to the end stop and is thus in the locked position. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 47 15.Pull the device away from the wall mount. 16.Check the rear panel, hoses and cables for damage. Do not operate a damaged device. The damage must be repaired by service personnel before the device is used. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 48 17.Only if the device and all of its components are in full working order, move the device to the desired location. If necessary, remove the push bar. Pay attention to the direction of pushing. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 49: Ceiling-Mounted Version With Integrated Castors

    Ceiling-mounted version with integrated castors Ceiling-mounted version with integrated castors Overview 6.1.1 Front Designation Description Castors Used to move and position the device. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 50: Rear

    Ceiling-mounted version with integrated castors 6.1.2 Rear Designation Description Mount Used for docking to the ceiling supply unit. Castors Used to move and position the device. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 51: Key Switch

    Horizontal position Enables docking and operation of other trolley versions of Dräger devices, e.g., the ceiling- mounted version of Atlan with integrated castors. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 52 Horizontal position Enables docking and operation of other trolley versions of Dräger devices, e.g., the ceiling- mounted version of Atlan with integrated castors. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 53: Assembly And Preparation

    ► Refer to the instructions for use of the ceiling supply unit and observe the maximum total weight. ► In addition to the nominal weight and any other accessories (such as carrying systems or monitors), these loads must be considered when calculating the total weight. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 54: Combination With Ceiling Supply Units

    When using a ceiling supply unit with a key switch, it may be required to put the key switch into horizontal position. The key switch must remain in this position. The ceiling supply unit must have an adequate maximum load. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 55: Docking To The Ceiling Supply Unit

    – Central supply hoses (1) – Power cable (2) 2. Check that the floor below the ceiling supply unit is level and cleared. There must be no objects below the ceiling supply unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 56 The ceiling supply unit can only be moved up and down when the support flap is folded up. 4. Lower the ceiling supply unit using the Down arrow key (4) until the trunnions are below the mount on the device. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 57 Since the ceiling-mounted version with integrated castors does not have a brake, its movements may get out of control during transport. ► The device must always be moved by 2 people. 6. Move the device to the ceiling supply unit. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 58 When the trunnions (7) on the ceiling supply unit have been pushed into the mount on the device and the device is no longer in contact with the floor, stop the upward movement. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 59 Establish the connection (8) to the central gas supply system. b. Establish the power supply (9). c. Establish further cable connections if necessary. 11. Raise the ceiling supply unit further until the desired height is reached. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 60: Undocking From The Ceiling Supply Unit

    – If the device is being undocked from a ceiling supply unit with a key switch, the key switch must be in the horizontal position. 1. Check that the floor under the device is level and cleared. There must be no objects under the device. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 61 Remove all objects from the writing tray and the work surface. e. Position the breathing bag arm (if present) close to the device. f. Push in and lock the drawers. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 62 3. Use the Down arrow key (1) to lower the ceiling supply unit. 4. Continue the downward movement until the trunnions (2) have completely left the mount on the device and the device is in contact with the floor. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 63 Since the ceiling-mounted version with integrated castors does not have a brake, its movements may get out of control during transport. ► The device must always be moved by 2 people. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 64: Reprocessing

    The following summary provides an overview of the reprocessing procedures defined for each device component and hand contact point. Further information on the defined reprocessing procedures can be found in the instructions for use for Atlan A300, A300 XL, A350, and A350 XL. Components Surface disinfection...

  • Page 65: Service

    Regular specified measures intended to maintain the functional integrity of a product Repair Measures intended to restore the functional integrity of a prod- uct after a failure A service contract with Dräger is recommended. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 66: Inspection

    Repair Repairs may only be performed by specialized service personnel. Only original Dräger parts are allowed to be used for repairs. Repairs must be carried out by Dräger. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 67: Technical Data

    Service cart for the ceiling-or-wall version Width 615 mm (24.2 in) Height 576 mm (22.7 in) Depth 625 mm (24.6 in) Weight Approx. 50 kg (110 lb) Maximum load 300 kg (661 lb) Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 68: Annex

    Docking or undocking the ceiling-or-wall version of Atlan or the ceiling-mounted version of Perseus with service cart Docking or undocking the ceiling-or-wall version of Atlan or the ceiling-mounted version of Perseus with service cart (As depicted on older product labels) Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...

  • Page 69: Product Labels

    Service cart: total weight 345 kg Permissible total weight: 345 kg (760 lb) max. load 300 kg Maximum load: 300 kg (661 lb) Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 70 The docking and undocking process of the Atlan device must be carried out by service personnel. Do not use the device for ventilation while it is undocked. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
  • Page 71 This page has been left blank intentionally. Supplement Atlan A300, A350 ceiling-mounted versions and wall-mounted version...
