HWH 325 Series Operator's Manual

Touch panel-controlled leveling system
Hide thumbs Also See for 325 Series:
1
2
3
4
5
6
7
8
9
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR'S MANUAL
HWH TOUCH PANEL-CONTROLLED
325 SERIES LEVELING SYSTEM
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
Ph: 800/321-3494 (or) 563/724-3396 | Fax: 563/724-3408
AP40340
H H
W
CORPORATION
R
FEATURING:
Touch Panel Leveling Control
BI-AXIS Hydraulic Leveling
R
Straight-Acting Jacks
Optional Suspension Air Dump
HWH HYDRAULIC LEVELING
ON
NOT IN
PARK/
BRAKE
STORE
DUMP
OFF
CAUTION!
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH CORPORATION
(On I-80, Exit 267 South)
2096 Moscow Road | Moscow, Iowa 52760
www.hwh.com
R
ML40341/MP04.1962
05MAR07

Advertisement

Table of Contents
loading

Related Manuals for HWH 325 Series

Summary of Contents for HWH 325 Series

  • Page 1 CORPORATION OPERATOR’S MANUAL HWH TOUCH PANEL-CONTROLLED 325 SERIES LEVELING SYSTEM FEATURING: Touch Panel Leveling Control BI-AXIS Hydraulic Leveling Straight-Acting Jacks Optional Suspension Air Dump HWH HYDRAULIC LEVELING NOT IN PARK/ BRAKE STORE DUMP CAUTION! UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.

  • Page 2: How To Obtain Warranty Service

    HWH CORPORATION personnel will contact you to the problem quickly. If the dealer has difficulty solving determine whether or not your claim is valid. If it is, HWH the problem, he should immediately contact the Customer CORPORATION will authorize repair or replacement of the Service Department, at HWH CORPORATION.

  • Page 3: Control Functions

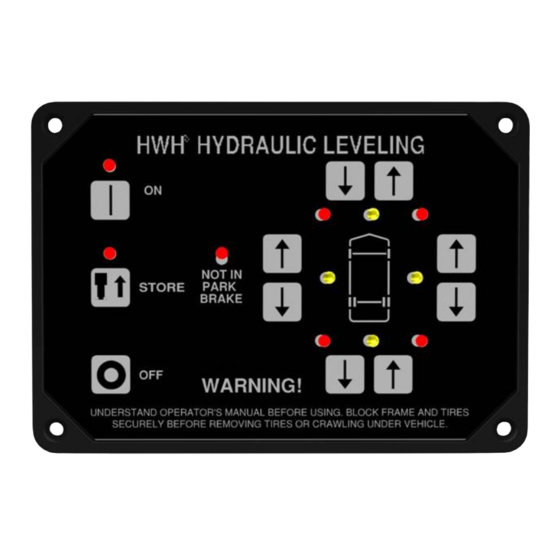

    325 - CONTROL IDENTIFICATION LEFT SIDE EXTEND BUTTON FRONT RETRACT BUTTON HWH HYDRAULIC LEVELING POWER ON LIGHT FRONT EXTEND BUTTON "ON" BUTTON WARNING LIGHTS (4-Red) RIGHT SIDE EXTEND BUTTON STORE LIGHT NOT IN PARK/ "STORE" BUTTON BRAKE RIGHT SIDE RETRACT BUTTON...

  • Page 4: Operating Procedures

    OPERATING PROCEDURES GENERAL INSTRUCTIONS GENERAL INSTRUCTIONS Site selection - Maintain adequate clearance in all Read all room extension operating procedures before directions for vehicle, room extensions, awnings, doors, before extending or retracting any room. steps, etc. Vehicle may move in any direction due to jacks extending or retracting, settling of jacks or vehicle, It is the operator’s responsibility to check that the jacks are completely retracted and any room extension or...
  • Page 5 OPERATING PROCEDURES 325 SERIES LEVELING SYSTEM JACK RETRACTION CAUTION: THE OPERATOR MUST BE SURE THAT EXTEND POSITION STORE/TRAVEL POSITION THERE ARE NO OBJECTS UNDER THE VEHICLE AND THAT ALL PEOPLE ARE CLEAR OF THE VEHICLE. 1. Turn the ignition to "ON" or "ACC" or start the engine.
  • Page 6 Use the manual valve release for retracting the jacks only removed to gain access. DO NOT turn the 1/4" valve if the STORE feature on the HWH control panel will not release nut more than 1 full turn . Turning the nut more retract the jacks.

  • Page 7: Maintenance

    Dexron automatic transmission fluid contains red dye and can cause staining should a leak occur. DO NOT USE All jacks and any HWH room extension cylinders should be brake fluid or hydraulic jack fluid. Use of these can damage completely retracted before checking the oil level. The oil seals.
  • Page 8 Move the adjustment for that light very, very, slightly in qualified RV repair center, your vehicle or coach the OPPOSITE direction that is given in the above manufacturer, or HWH CORPORATION for service or repair. instructions for LED’s A, B, C, and D. This will allow MP44.1501...
  • Page 9 BREATHER CAP - DIPSTICK - 1/4" NUT DRIVER 1 1/2" DIAMETER VALVE RELEASE SOLENOID VALVE NOTE: DO NOT turn the valve release nut more than 4 and 1/2 (four and one half) turns counter clockwise. Damage to the valve may result. VALVE RELEASE PLASTIC PLUG 2 1/4"...
