OPERATOR'S MANUAL
HWH SYSTEMS CONTROL MODULE
R
BI-AXIS Computerized Hydraulic Leveling
Hydraulic Step and Step Cover
Dual Direction Hydraulic Storage Slide Out
HOME
LIGHT
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
2096 Moscow Road | Moscow, Iowa 52760
Ph: 800/321-3494 (or) 563/724-3396 | Fax: 563/724-3408
H H
W
CORPORATION
FEATURING:
R
Multiple Rooms
Auxiliary Hand Pump
HWH SYSTEMS CONTROL
R
AUTO STORE
AUTOMATIC
HYD LEVEL
HOME
PAGE
MANUAL
HYD LEVEL
STATUS
CONTRAST
HWH CORPORATION
(On I-80, Exit 267 South)
www.hwh.com
R
STOP
STEP /
STP COVER
ROOM
RESET
ML46343/MP04.5650
16MAR10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SYSTEM CONTROL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HWH SYSTEM CONTROL

Summary of Contents for HWH SYSTEM CONTROL

  • Page 1 CORPORATION OPERATOR’S MANUAL HWH SYSTEMS CONTROL MODULE FEATURING: BI-AXIS Computerized Hydraulic Leveling Multiple Rooms Hydraulic Step and Step Cover Dual Direction Hydraulic Storage Slide Out Auxiliary Hand Pump HWH SYSTEMS CONTROL HOME STOP AUTO STORE AUTOMATIC STEP / HYD LEVEL...

  • Page 2: How To Obtain Warranty Service

    HWH CORPORATION personnel will contact you to the problem quickly. If the dealer has difficulty solving determine whether or not your claim is valid. If it is, HWH the problem, he should immediately contact the Customer CORPORATION will authorize repair or replacement of the Service Department, at HWH CORPORATION.

  • Page 3: Control Identification

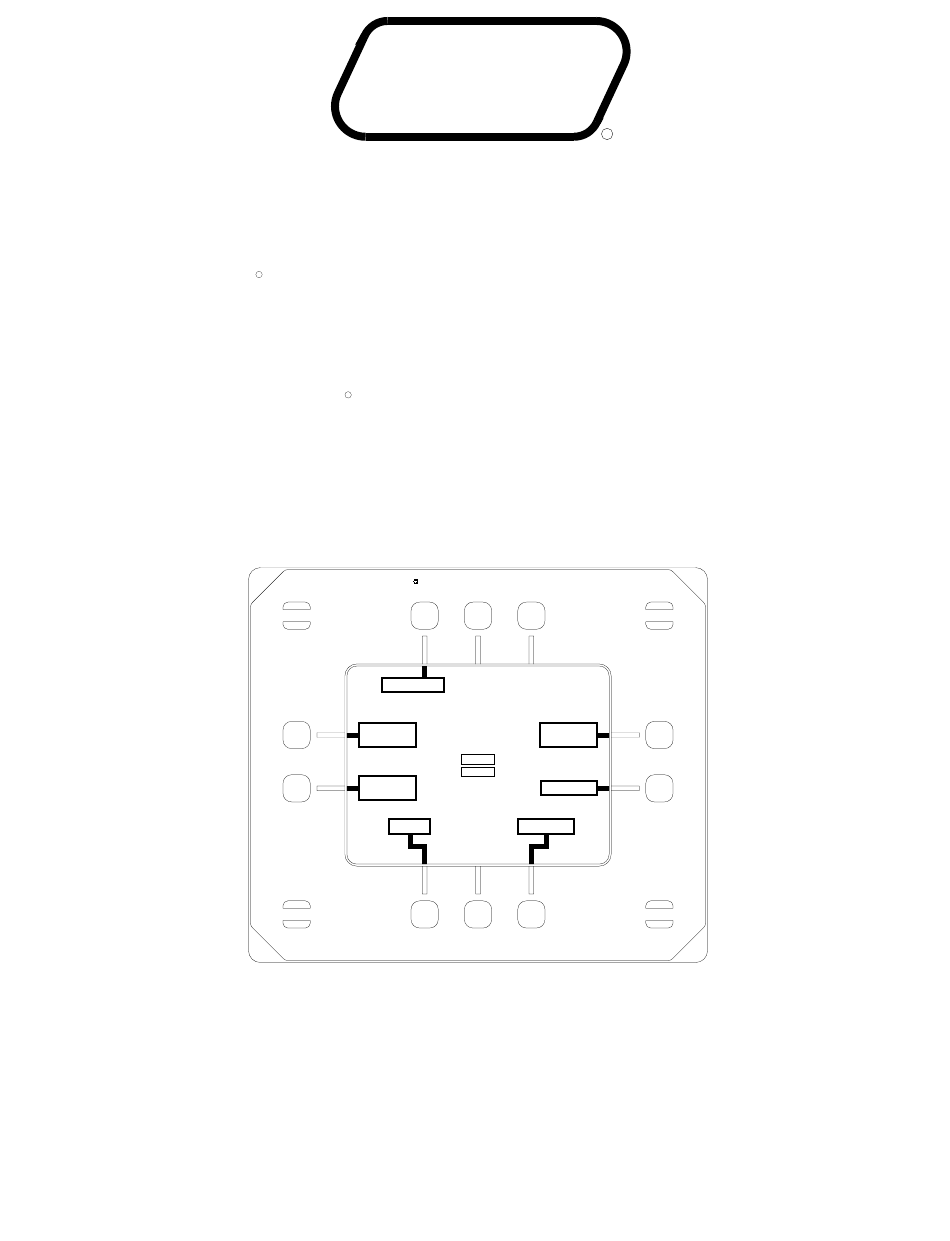

    CONTROL IDENTIFICATION HWH SYSTEMS CONTROL PANEL BUTTON HOME STOP AUTO STORE SCREEN AUTOMATIC STEP / BUTTON HYD LEVEL STP COVER HOME PAGE MANUAL ROOM HYD LEVEL STATUS CONTRAST LIGHT RESET CAUTION! UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
