OPERATOR'S MANUAL
HWH TOUCH PANEL-CONTROLLED
310 SERIES LEVELING SYSTEM
Ph: 800/321-3494 (or) 563/724-3396 | Fax: 563/724-3408
AP10043 - U.S.
AP10301 - Europe
H H
W
CORPORATION
FEATURING:
Touch Panel Control
Hydraulic Leveling
Straight-Acting Jacks
HWH HYDRAULIC LEVELING
ON
NOT IN
PARK/
STORE
BRAKE
OFF
CAUTION!
UNDERSTAND OPERATOR'S MANUAL BEFORE USING. BLOCK FRAME AND TIRES
SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
HWH CORPORATION
(On I-80, Exit 267 South)
2096 Moscow Road | Moscow, Iowa 52760
www.hwh.com
R
ML10043/MP05.3005/LH-S
28AUG02
Advertisement
Table of Contents
Related Manuals for HWH 310 Series
Summary of Contents for HWH 310 Series
- Page 1 CORPORATION OPERATOR’S MANUAL HWH TOUCH PANEL-CONTROLLED 310 SERIES LEVELING SYSTEM FEATURING: Touch Panel Control Hydraulic Leveling Straight-Acting Jacks HWH HYDRAULIC LEVELING NOT IN PARK/ STORE BRAKE CAUTION! UNDERSTAND OPERATOR’S MANUAL BEFORE USING. BLOCK FRAME AND TIRES SECURELY BEFORE REMOVING TIRES OR CRAWLING UNDER VEHICLE.
-
Page 2: How To Obtain Warranty Service
HWH CORPORATION personnel will contact you to the problem quickly. If the dealer has difficulty solving determine whether or not your claim is valid. If it is, HWH the problem, he should immediately contact the Customer CORPORATION will authorize repair or replacement of the Service Department, at HWH CORPORATION. -
Page 3: Control Identification

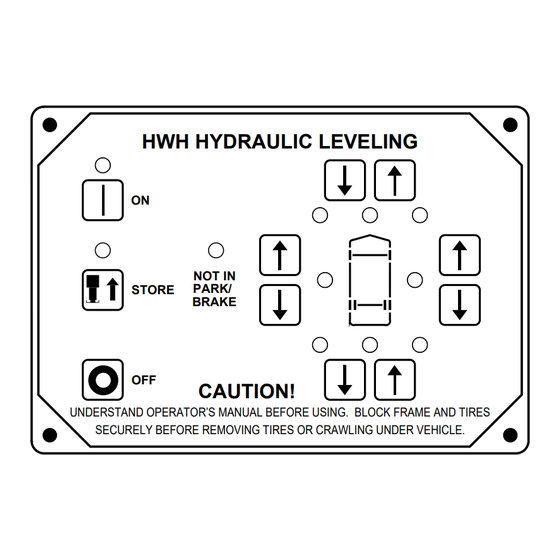

CONTROL IDENTIFICATION "NOT IN PARK/BRAKE" LIGHT FRONT RETRACT BUTTON FRONT EXTEND BUTTON POWER ON LIGHT HWH HYDRAULIC LEVELING WARNING LIGHTS (4-Red) "ON" BUTTON STORE LIGHT RIGHT SIDE EXTEND BUTTON NOT IN PARK/ STORE BRAKE "STORE" BUTTON RIGHT SIDE RETRACT BUTTON "OFF"... -
