Dynojet Power Commander V Installation Instructions page 3

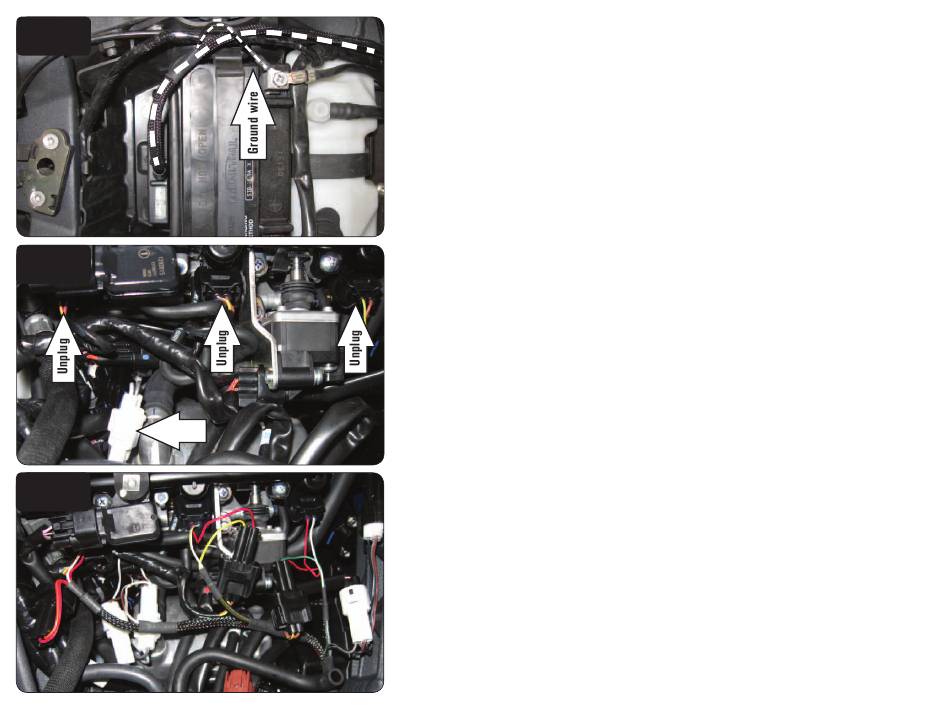

FIG.A
FIG.B
Unplug
FIG.C
I21-004 www.powercommander.com
1 Remove the seat.
2 Remove the fuel tank.
3 Secure the PCV to the rear of the battery (Fig. A).
4 Route the PCV harness to the left side of the battery and go towards the
throttle bodies.
5 Attach the ground wire of the PCV to the negative side of the battery (Fig. A).
6 Unplug the stock wiring harness from each fuel injector (Fig. B).
Squeeze the sides of the connector to remove.
7 Unplug the crank position sensor connectors (Fig. B).
This is a WHITE 2-pin connector pair.
8 Plug the PCV harness in-line of the stock wiring harness and each fuel injector.
PCV harness:
ORANGE - cylinder #1 (left)
YELLOW - cylinder #2
GREEN - cylinder #3 (right)
2008-2012 Triumph Street Triple 675 - PCV - 3
