Summary of Contents for Stahl SolConeX 8581/41

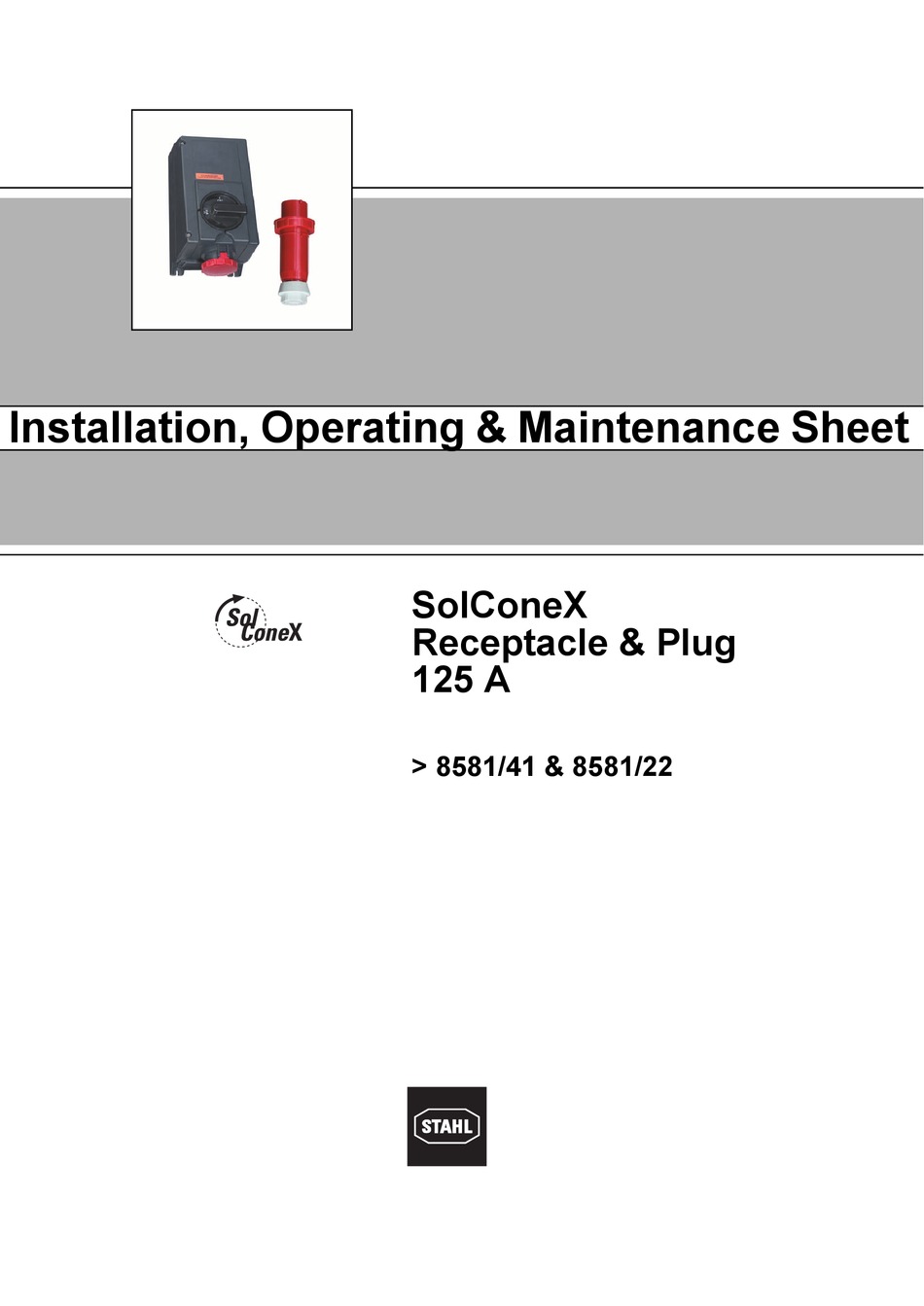

- Page 1 Installation, Operating & Maintenance Sheet SolConeX Receptacle & Plug 125 A > 8581/41 & 8581/22...
- Page 2 Transport and Storage ..................4 Receptacle Installation ..................4 Receptacle Wiring ....................5 Plug Wiring ......................6 Commissioning ......................7 Maintenance ......................7 Disposal .........................8 General Information 2.1 Manufacturer R. STAHL Schaltgeräte GmbH Am Bahnhof 30 74638 Waldenburg Germany Tel.: +49 7942 943-0 Fax: +49 7942 943-4333 Internet: www.stahl-ex.com...

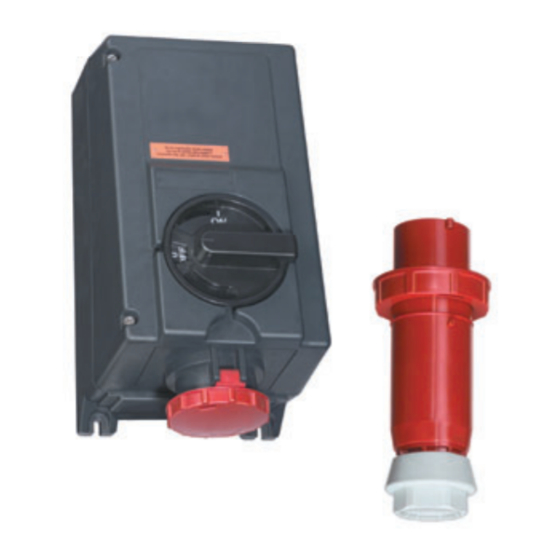

- Page 3 Application Application The receptacle 8581/41 and the plug 8581/22 are explosion protected equipment, certified for use in hazardous (classified) locations. Safety Instructions The receptacles and plugs must be used only for their intended purpose. Incorrect usage invalidates our warranty provision. WARNING Installation and maintenance of this product should only be performed by skilled ...
- Page 4 Transport and Storage Certificates NEC / CEC FM File No. 0R6A2.AX IECEx IECEx PTB 06.0034 ATEX PTB 01 ATEX 1161 Ambient temperature see explosion protection data -45 C° on request (internal lubrication using silicone grease) Assignment of temperature class / ambient temperature / rated operational voltage / rated connection cross-section Valid for the following versions: 209879_V03 Temperature class...
- Page 5 Receptacle Wiring 8.5 Receptacle HP Rating 3-Phase Horsepower 600 V AC 480 V AC 250 V AC Receptacle Wiring Open the terminal cover and connect + 75 °C or greater copper supply wires. The supply side of the terminal block accepts up to two wires per terminal. ...
- Page 6 Plug Wiring 10.3 Opening the plug out of the Referring to Figure 1 above, loosen the three screws ① and pull the plug body ② , insert the screwdriver in the ③ ④ ⑤ shell . Loosen the screw on the locking clamp and unscrew the ...
- Page 7 Commissioning WARNING Observe the labels on the receptacle and plug with regard to the use of receptacle covers and plug dust caps. 11 Commissioning Before commissioning into service Make sure that the device is not damaged. Make sure that the device is installed correctly. ...
- Page 8 SolConeX Receptacle & Plug 125 A 209880 / 8581616300 8581/41 & 8581/22 2014-10-10·IO00·III·en·03...
