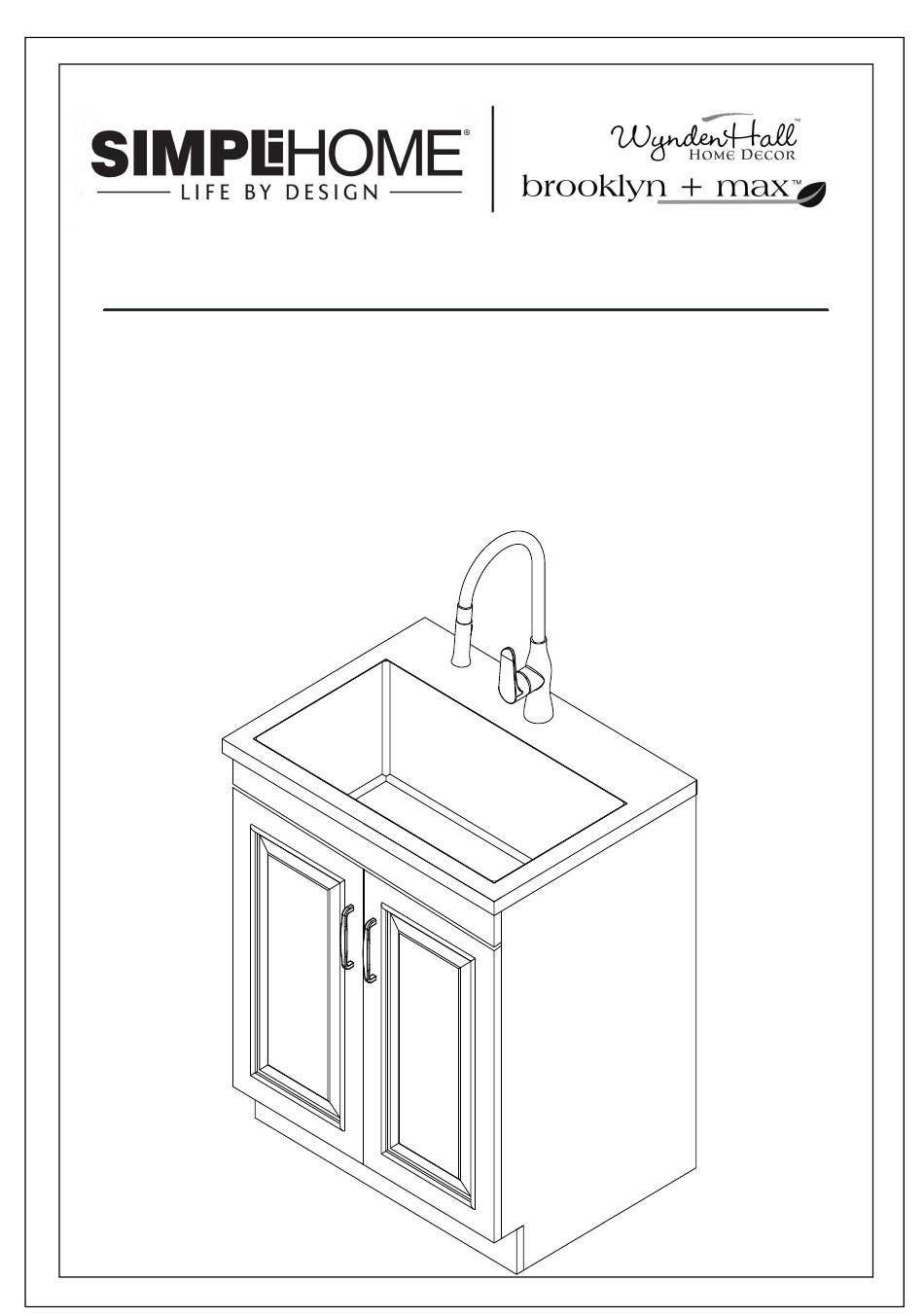

- Page 1 DARWIN / GREGG / CLEO DELUXE 28 INCH LAUNDRY CABINET WITH FAUCET AND STAINLESS SINK Model # AXCLDYDAR-SS 1/21...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following information ready:...
-
Page 3: Safety Information
IMPORTANT: Pleaseread this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION Model #AXCLDYDAR-SS CABINET PARTS BOTTOM PANEL RIGHT SIDE PANEL BACK BOTTOM PANEL QTY 1 QTY 1 QTY 1 BACK MIDDLE PANEL LEFT SIDE PANEL BACK TOP PANEL QTY 1 QTY 1 QTY 1 FRONT BOTTOM PANEL FRONT TOP PANEL LEFT DOOR QTY 1 QTY 1... - Page 5 PRE-ASSEMBLY INFORMATION Model #AXCLDYDAR-SS DRAIN PARTS DRAIN PLUG ASSEMBLY DRAIN WASHER BLACK DRAIN BOWL ASSEMBLY QTY 1 QTY 1 QTY 1 THREAD WASHER PIPE WASHER COUPLING BLACK QTY 1 QTY 1 QTY 1 STRAIGHT DRAIN PIPE BLACK COUPLING BLACK PIPE WASHER WHITE QTY 1 QTY 2 QTY 1...
-
Page 6: Hardware Parts
PRE-ASSEMBLY INFORMATION Model #AXCLDYDAR-SS FAUCET PARTS FAUCET BODY FAUCET WASHER STEEL FAUCET WASHER RUBBER QTY 1 QTY 1 QTY 1 BRASS NUT ASSEMBLY FAUCET SEALING RING WEIGHT BLOCK QTY 1 QTY 1 QTY 1 HARDWARE PARTS Ⅰ Ⅱ Ⅲ CAM LOCK CAM PIN WOOD DOWEL QTY 23... - Page 7 COMPONENTS-KEY DIAGRAM Model #AXCLDYDAR-SS 7/21...
- Page 8 ASSEMBLY Model #AXCLDYDAR-SS STEP 1 Screw Cam Pins (II) into the pre-drilled small holes on Left Panel(F) and Right Panel(B). 8/21...
- Page 9 ASSEMBLY Model #AXCLDYDAR-SS STEP 2 InsertWood Dowels (III) into the pre-drilled hole of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (D), Back Middle Panel (E) and Front Top Panel (H). InsertCam Locks (I) into the pre-drilled hole of Bottom Panel (A), Back Bottom Panel (C), Back Top Panel (D), Back Middle Panel (E) and Front Top Panel (H).
- Page 10 ASSEMBLY Model #AXCLDYDAR-SS STEP 3 Attach the Left Panel(F) withCam Pins (II) and Dowels into the pre-drilled holes. Insert Cam Locks (I) into the pre-drilled hole of Bottom Panel(A),Back Bottom Panel(C), Back Top Panel(D), Back Middle Panel(E) and Front Top Panel(H). Tighten with flathead screwdriver.
- Page 11 ASSEMBLY Model #AXCLDYDAR-SS STEP 4 M4X25 Screw Cam Pins (II) into the pre-drilled small holes on Kick Plate Panel(G). Insert Cam Pins (II) into the pre-drilled holes on both Side Panels. Insert Cam Locks (I) into the pre-drilled holes on both Side Panels. Tighten with flathead screwdriver.
- Page 12 ASSEMBLY Model #AXCLDYDAR-SS STEP 5 M4X16 Use Phillips Screwdriver to attach the Right Door hinges to side (B), using Self-Tapping Screws (IV) M4x16 Use Phillips Screwdriver to attach the Left Door hinges to side (F), using Self-Tapping Screws (IV) M4x16 12/21...
- Page 13 ASSEMBLY Model #AXCLDYDAR-SS STEP 6 Use Phillips Screwdriver to screw the Handle (VI) with Pan Head Philips Screws (V) M4x23. 13/21...
- Page 14 ASSEMBLY Model #AXCLDYDAR-SS STEP 7 Place a Rubber Washer (BB) onto the end of the Faucet (AA) and insert the faucet through the top of the Sink (K). From underneath the Sink (K), secure the Faucet (AA) to the Sink (K) using a Rubber Washer (BB), Steel Washer (CC) and Brass Nut Assembly (DD).
- Page 15 ASSEMBLY Model #AXCLDYDAR-SS STEP8 attach the weight block (FF) with the pipe and screw down. 15/21...
- Page 16 ASSEMBLY Model #AXCLDYDAR-SS STEP 9 Place the Sink (K) with the attached Faucet (AA) on top of the cabinet. 16/21...
- Page 17 ASSEMBLY Model #AXCLDYDAR-SS STEP10 Put the Drain Washer (3) on the top of the drain opening in the Sink (K). Put the Drain Bowl (2) on the Drain Washer (3) through the drain opening. From underneath the sink fasten the Threaded Washer (4) onto the Drain Bowl (2) and tighten. Insert the Drain Plug (1) into the Drain Bowl (2).
- Page 18 ASSEMBLY Model #AXCLDYDAR-SS STEP 11 Fasten the nuts of the hoses (not included in package) to the nut ends of the faucet body. Fasten the nuts of the hoses (not included in package) to the water outlet: o Red striped hose to Hot water supply o Blue striped hose to Cold water supply Ensure to only tighten the nut and not twist the supply hose.
- Page 19 ASSEMBLY Model #AXCLDYDAR-SS STEP 12 Put a Pipe Washer (5) onto the Straight Drain Pipe (7). Connect the Straight Drain Pipe (7) to the drain and fasten the Coupling (6). Put the Coupling (8) into the Straight Drain Pipe (7) and put a Pipe Washer (9) into the Straight Drain Pipe (7).
- Page 20 ASSEMBLY Model #AXCLDYDAR-SS STEP 13 Use a Phillips screwdriver to re-align or adjust the hinges that attach the doors to the cabinet. 20/21...
-
Page 21: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
