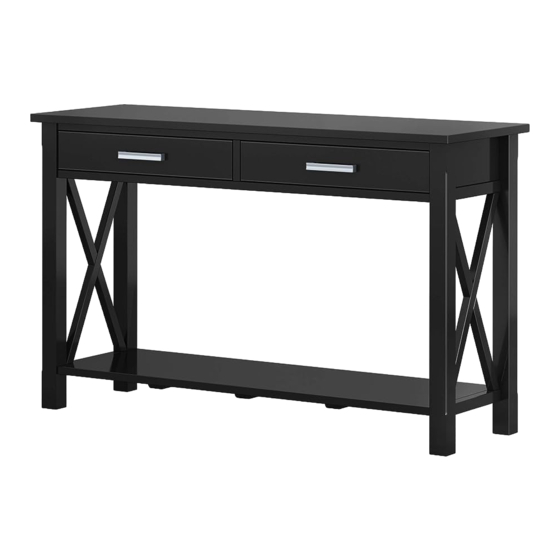

- Page 1 SIMP HOME ® L I F E B Y D E S I G N KITCHENER / WATERLOO / PROVIDENCE CONSOLE / SOFA TABLE MODEL # AXCKIT06 1/13...
- Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCKIT06-BL PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 BACK PANEL BOTTOM SHELF DIVIDER QTY 1 QTY 1 QTY 1 FRONT BAR DRAWER FRONT LEFT DRAWER SIDE QTY 1 QTY 2 QTY 2 DRAWER BOTTOM RIGHT DRAWER SIDE DRAWER BACK... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCKIT06-BL HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 15 QTY 1 QTY 14 SETS WOOD DOWEL HANDLE Ø8 X 30 mm M4 X 25 mm QTY 18 QTY 2 SETS Required - Flathead screwdriver...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXCKIT06-BL 7/13...
- Page 8 ASSEMBLY MODEL # AXCKIT06-BL STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front G . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides HL , HR . 3. Insert 2 Cam Lock 2 into guide holes on each Drawer Side HL , HR . 4.
- Page 9 ASSEMBLY MODEL # AXCKIT06-BL STEP 3 1. Align Drawer Back I with Drawer Bottom J and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen key 3 to tighten. Do not over-tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 10 ASSEMBLY MODEL # AXCKIT06-BL STEP 5 1. Insert 4 wood Dowel 5 into of each Back Panel C , Front Bar F and Bottom Shelf D . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 ASSEMBLY MODEL # AXCKIT06-BL STEP 6 1. Insert 2 Dowels 5 into Divider E . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align Wood Dowels 5 on Divider E with guide holes on Back panel C . 4.
- Page 12 ASSEMBLY MODEL # AXCKIT06-BL STEP 7 1. Insert 2 Dowels 5 into top corners of each Side BL , BR . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
-
Page 13: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
