Summary of Contents for Simpli Home AXCHUN08-EB

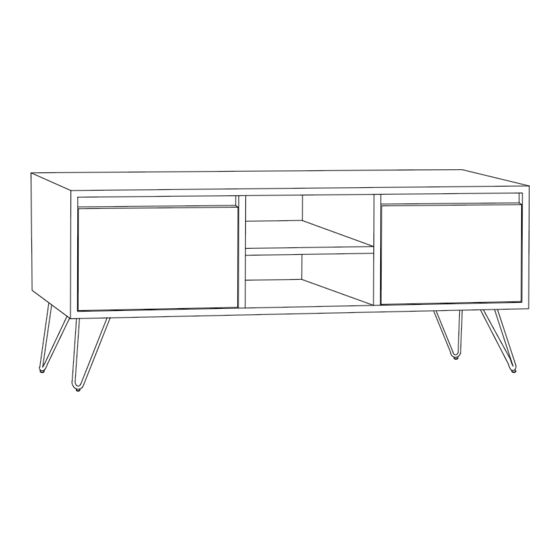

- Page 1 HUNTER / MORENO / DIAZ TV MEDIA STAND MODEL # AXCHUN08-EB 1/17...
- Page 2 Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following information ready:...
- Page 3 IMPORTANT : for Please read this manual carefully before beginning assembly of this product. keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.
- Page 4 Wood Furniture Care Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. Making matters worse, it expands and contracts unequally along different grain directions.
-
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCHUN08-EB PARTS DESCRIPTION SHELF QTY 1 QTY 2 QTY 4 PRE-ASSEMBLY INFORMATION MODEL # AXCHUN08-EB HARDWARE DESCRIPTION ALLEN KEY BOLT WASHER ALLEN KEY M 6 X 15 mm Ø 17 / Ø 8 X 1.5 mm... - Page 6 COMPONENTS - KEY DIAGRAM MODEL # AXCHUN08-EB 6/17...
- Page 7 ASSEMBLY MODEL # AXCHUN08-EB STEP 1 1. Attach Legs C to Top A with Allen key Bolts 1 and Washers 2 . 2. Use Allen key 3 to tighten. 7/17...
- Page 8 ASSEMBLY MODEL # AXCHUN08-EB STEP 2 Note: Levelers on bottom of legs can be adjusted if floor is uneven. 8/17...
- Page 9 ASSEMBLY MODEL # AXCHUN08-EB STEP 3 FIXING ADJUSTABLE HINGES Tighten the Screw marked ll to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. to adjust, follow instructions: Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
- Page 10 ASSEMBLY MODEL # AXCHUN08-EB STEP 4 1. Insert four shelf supports 4 into the holes of both cabinets of top A . 2. Insert the shelf B on top of the supports 4 of in each cabinet of top A .
- Page 11 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. if the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not included in the hardware pack 11/17...
- Page 12 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: 1. Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. 2. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.
-
Page 13: Hardware Description
DOOR REPLACEMENT (IF REQUIRED) PARTS DESCRIPTION LEFT DOOR RIGHT DOOR QTY 1 QTY 1 HARDWARE DESCRIPTION PHILLIPS SCREW ROUND HEAD M 3.5 X 15 mm QTY 16 NEED HELP? for help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 14 DOOR REPLACEMENT (IF REQUIRED) STEP 5 1. Using a screwdriver to remove Phillips Screws Round Head 6 from the hinges. 2. Remove the Doors DL or DR from the TV frame. 14/17...
- Page 15 DOOR REPLACEMENT (IF REQUIRED) STEP 6 1. Attach hinges on Doors DL or DR to Sides of the TV frame, using Phillips Screws 6 into pre-drilled holes on Sides of the TV frame. 2. Using Phillips screwdriver to tighten Screws 6 into pre-drilled holes. 15/17...
- Page 16 DOOR REPLACEMENT (IF REQUIRED) STEP 7 FIXING ADJUSTABLE HINGES Tighten the screw marked II to fasten hinge. the door may need to be adjusted so that all the spaces between the door and the unit sides are equal. to adjust, follow instructions: Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
-
Page 17: Warranty
S IMP HOME WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
