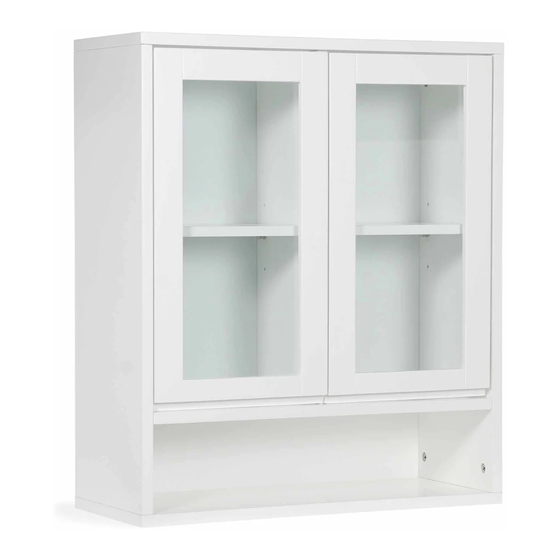

- Page 1 S IMP HOME ® DRAPER / BAXTER / TIERNEY DOUBLE DOOR WALL CABINET MODEL # AXCBCDRP-04...
- Page 2 S IMP HOME ® Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –4 pm EST or go to www.simpli-home.com/parts request In order to assist you in a timely manner, please have the following...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-04 PART DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 DIVIDER BOTTOM SHELF MIDDLE SHELF QTY 1 QTY 1 QTY 1 WALL MOUNT BAR SHELF BACK BAR QTY 1 QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-04 PART DESCRIPTION RIGHT BACK PANEL BOTTOM BACK PANEL LEFT BACK PANEL QTY 1 QTY 1 QTY 1 LEFT DOOR RIGHT DOOR QTY 1 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
-
Page 7: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # AXCBCDRP-04 HARDWARE DESCRIPTION CAM LOCK PIN WOOD DOWEL CAM LOCK ADJUSTABLE HINGE Ø8 X 30mm QTY 16 SETS QTY 4 QTY 5 PHILLIPS SCREW SHELF SUPPORT MAGNET AND PLATE M4 X 50mm QTY 8 QTY 2 SETS QTY 7 PHILLIPS SCREW ROUND HEAD PHILLIPS SCREW... - Page 8 COMPONENTS-KEY DIAGRAM MODEL # AXCBCDRP-04...
- Page 9 ASSEMBLY MODEL # AXCBCDRP-04 STEP-1 1. Attach Cam Lock Pins 1 into pre-drilled holes on parts A , BL , BR , C . 2. Use Phillips screwdriver to secure Cam Lock Pins. Do not over-tighten.
- Page 10 ASSEMBLY MODEL # AXCBCDRP-04 STEP-2 2. Use Phillips screwdriver to secure screws . Do not over-tighten. 3. Insert Dowels 2 into guide holes on each part E , G . 4. Use rubber mallet to tap Dowels 2 into bottom of holes securely. 1/2 length of Dowels should be exposed.
- Page 11 ASSEMBLY MODEL # AXCBCDRP-04 STEP-3 1. Align Wood Dowel with guide holes and attach Divder E to Middle Shelf D . 2. Use two Phillips Screws 6 to attach Middle Shelf D through guide holes from Middle Shelf D to pre-drilled holes of Divider E . 3.
- Page 12 ASSEMBLY MODEL # AXCBCDRP-04 STEP-4 1. Align Wood Dowels and Cam Lock Pins with guide holes and attach parts D , G to Left Side BL . 2. Insert two Cam Locks 1 into guide holes on Middle Shelf D . 3.
- Page 13 ASSEMBLY MODEL # AXCBCDRP-04 STEP-5 1. Repeat Step-4 for the Right Side BR .
- Page 14 ASSEMBLY MODEL # AXCBCDRP-04 STEP-6 1. Align Cam Lock Pins with guide holes and attach part C to Sides BL , BR . 2. Insert two Cam Locks 1 into guide holes on each Side BL , BR . 3. Use Phillips screwdriver to secure Cam Locks.
- Page 15 ASSEMBLY MODEL # AXCBCDRP-04 STEP-7 Warning Label...
- Page 16 ASSEMBLY MODEL # AXCBCDRP-04 STEP-8 1. Align Cam Lock Pins with guide holes and attach part A to parts BL , BR , E . 2. Insert Cam Locks 1 into guide holes on each part BL , BR , E . 3.
- Page 17 ASSEMBLY MODEL # AXCBCDRP-04 STEP-9 STEP-10...
- Page 18 ASSEMBLY MODEL # AXCBCDRP-04 STEP-11 1. Attach Adjustable Hinges 3 to Doors JL , JR using Phillips Screws 7 into pre-drilled holes on Doors JL , JR . JL , JR u s i n g P h i l l i p s S c r e w s 9 i n t o JL , JR .
-
Page 19: Important Note
ASSEMBLY MODEL # AXCBCDRP-04 STEP-13 IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. - Page 20 ASSEMBLY MODEL # AXCBCDRP-04 STEP-14 - Positioning 1. Determine the location for the unit on the wall. The Top A should be approximately 1 ¼” above the top of the Wall Mount Bar H when mounted. 2. Place the Wall Mount Bar H at the predetermined height. Use a level to ensure that it is straight.
- Page 21 ASSEMBLY MODEL # AXCBCDRP-04 STEP-16 1. Align the top of the Wall Mount Bar H with the bottom of the angled bracket on the back of the Cabinet. 2. Gently slide the Cabinet down on to the Wall Mount Bar H .
-
Page 22: Warranty
S IMP HOME ® WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights.
