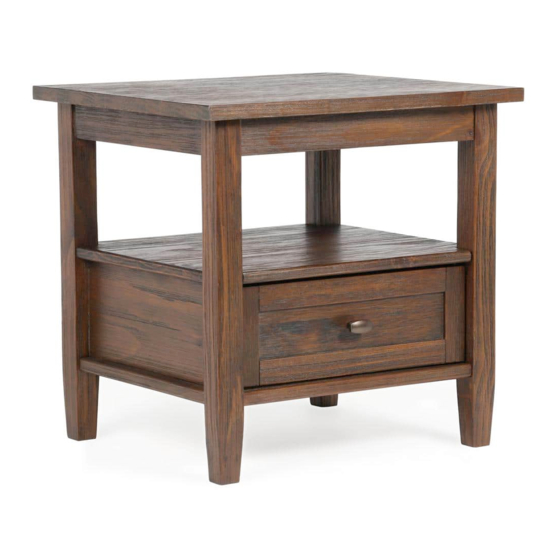

- Page 1 SIMP HOME ® L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON END TABLE MODEL AXWSH002-DCB 1/13...
- Page 2 SIMP HOME ® L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Care And Maintenance
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks. -
Page 5: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # AXWSH002-DCB PARTS DESCRIPTION RIGHT SIDE LEFT SIDE QTY 1 QTY 1 QTY 1 TOP SHELF BACK BOTTOM SHELF QTY 1 QTY 1 QTY 1 DRAWER FRONT LEFT DRAWER SIDE RIGHT DRAWER SIDE QTY 1 QTY 1 QTY 1 DRAWER BACK DRAWER BOTTOM... - Page 6 PRE-ASSEMBLY INFORMATION MODEL # AXWSH002-DCB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 14 QTY 8 SETS Required - Flathead screwdriver Phillips screwdriver HANDLE WOOD DOWEL Rubber mallet M4 X 25 mm Ø8 X 30 mm Not Included QTY 1 SET...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH002-DCB 7/13...
- Page 8 ASSEMBLY MODEL # AXWSH002-DCB STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front F . 2. Align Cam Lock Pins with guide holes and attach Drawer Sides GL , GR . 3. Insert 2 Cam Locks 2 into guide holes on each Drawer Side GL , GR . 4.
- Page 9 ASSEMBLY MODEL # AXWSH002-DCB STEP 3 1. Align Drawer Back H with Drawer Bottom I and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through guide holes on each side. 3. Use Allen Key 3 to tighten. Do not over tighten. STEP 4 NOTE: The screwdriver is not included in the hardware pack.
- Page 10 ASSEMBLY MODEL # AXWSH002-DCB STEP 5 1. Insert 4 Dowels 5 into guide holes on the Back E . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3. Align Dowels 5 with guide holes of Sides BL , BR . 4.
- Page 11 ASSEMBLY MODEL # AXWSH002-DCB STEP 6 1. Attach Bottom Shelf D to Sides BL , BR using Allen Key Screws 1 through guide holes. 11/13...
- Page 12 ASSEMBLY MODEL # AXWSH002-DCB STEP 7 1. Insert 2 Dowels 5 into guide holes on each Side BL , BR . 2. Use rubber mallet to tap Dowels 5 into bottom of holes securely. 1/2 length of Dowels should be exposed. 3.
-
Page 13: Warranty
L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
