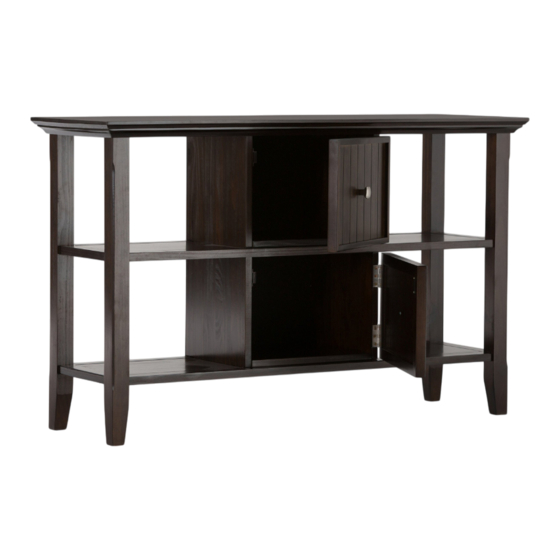

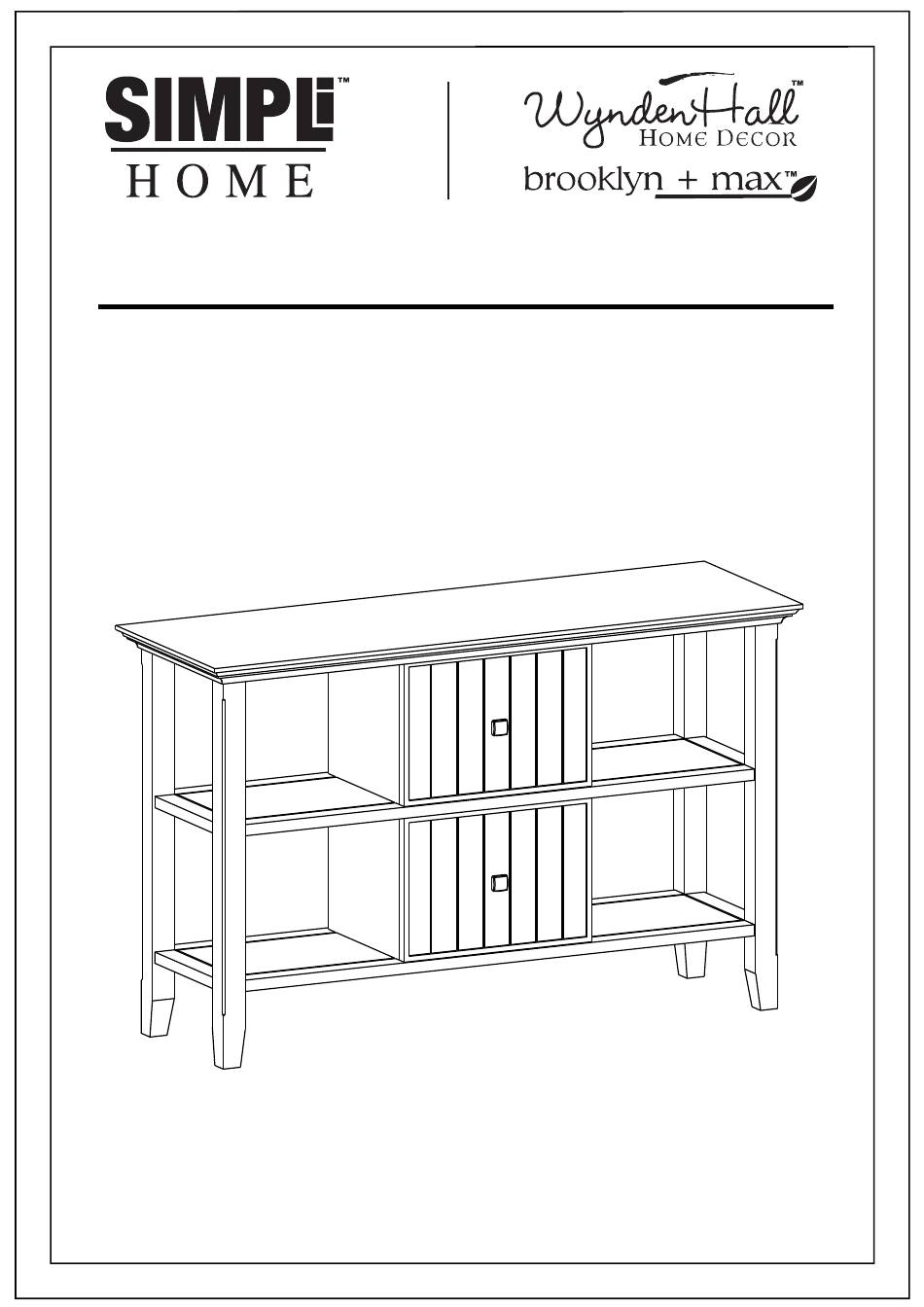

- Page 1 ACADIAN NORMANDY BRUNSWICK CONSOLE / SOFA TABLE MODEL # AXWELL3-002 1/15...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM...
- Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/15...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. - Page 5 PRE ASSEMBLY INFORMATION MODEL # AXWELL3-002 PARTS DESCRIPTION SIDE SHELF SIDE QTY 1 QTY 1 PAIR QTY 1 SHELF PART DOOR SHELF SIDE QTY 2 QTY 2 QTY 1 SHELF PANEL BACK PANEL QTY 2 QTY 1 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext.
-
Page 6: Hardware Description
PRE ASSEMBLY INFORMATION MODEL # AXWELL3-002 HARDWARE DESCRIPTION WOOD DOWEL ALLEN KEY SCREW CAM LOCK PIN Ø8 X 30 mm M6 X 30 mm CAM LOCK QTY 8 QTY 16 QTY 8 PHILLIPS SHORT SCREW PHILLIPS LONG SCREW ALLEN KEY... - Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWELL3-002 7/15...
- Page 8 ASSEMBLY MODEL # AXWELL3-002 STEP 1 1. Attach Shelf Side C and C1 to Shelf Part D with Allen Key Screw 1 through pre-drilled holes. 2. Use Allen key 4 to tighten screws. Do not over tighten. 8/15...
- Page 9 ASSEMBLY MODEL # AXWELL3-002 STEP 2 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Shelf Panels F to Shelf Parts D with Phillips Long Screws 5 through pre-drilled holes. 2. Use Phillips screwdriver to tighten screws. Do not over tighten.
- Page 10 ASSEMBLY MODEL # AXWELL3-002 STEP 3 1. Insert Cam Lock Pins 2 and Dowels 3 to Sides B into guild holes. 2. Use rubber mallet to tap Dowels 3 into bottom of holes securely. 1/2 length of dowels should be expose.
- Page 11 ASSEMBLY MODEL # AXWELL3-002 STEP 4 1. Using eight Allen Key Screws 1 to attach Top A to Sides B and to Shelf Sides C and C1 . 2. Use Allen Key 4 to tighten screws. Do not over tighten.
- Page 12 ASSEMBLY MODEL # AXWELL3-002 STEP 5 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Doors E to Shelf Side C1 using Phillips Short Screws 6 into guide holes. 2. Attach two Magnet Plates 9 to top side of Doors E using Phillips Short Screws 10 into guide holes on Doors E .
- Page 13 ASSEMBLY MODEL # AXWELL3-002 STEP 6 NOTE: The screwdriver is not included in the hardware pack. 1. Use Phillips Round Head Screws 7 to attach Back Panel G to back of Console Table. 2. Use Phillips screwdriver to snugly tighten screws.
-
Page 14: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 15 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
