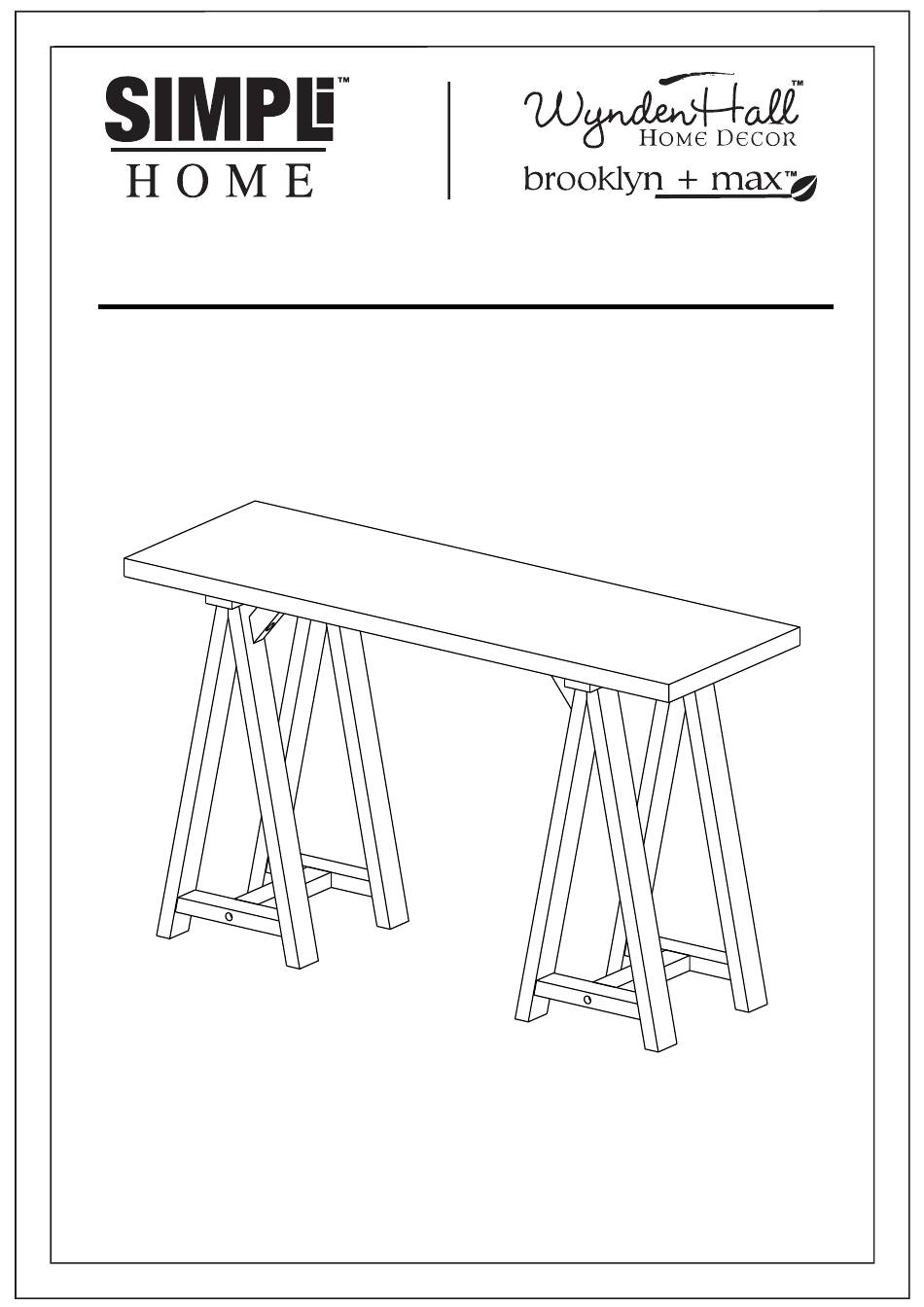

- Page 1 SAWHORSE / HAWKINS / SPOKANE CONSOLE / SOFA TABLE MODEL # 3AXCSAW-03 1/14...
- Page 2 FOR REPLACEMENT PARTS OR HELP WITH ASSEMBLY PLEASE CONTACT US AT: simpli-home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET TO RETURN THE PRODUCT: PLEASE CONTACT THE RETAILER WHERE THE ITEM WAS PURCHASED FROM 2/14...
- Page 3 ENTER TO WIN Upload an image of our furniture in your home with a short review to our facebook page for a chance to Win up to $3000 of Simpli Home furniture!!! www.facebook.com/simplihomefurnishings 3/14...
-
Page 4: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 5: Pre-Assembly Information
MODEL # 3AXCSAW-03 PRE-ASSEMBLY INFORMATION PARTS DESCRIPTION LEG B QTY 1 QTY 2 LEG C LEG LOWER CONNECTOR QTY 2 QTY 2 LEG UPPER CONNECTOR LEG SUPPORTER QTY 2 QTY 4 NEED HELP? For help with assembly or if you are missing a part, Please call customer service at 1-866-518-0120 ext. - Page 6 PRE-ASSEMBLY INFORMATION MODEL # 3AXCSAW-03 HARDWARE DESCRIPTION ALLEN KEY SCREW ALLEN KEY SCREW ALLEN KEY BOLT M6 X 50 mm M6 X 35 mm M6 X 40 mm QTY 8 QTY 8 QTY 12 ALLEN KEY BOLT & CROSS NUT...
- Page 7 COMPONENTS – KEY DIAGRAM MODEL # 3AXCSAW-03 7/14...
- Page 8 ASSEMBLY MODEL # 3AXCSAW-03 STEP 1 1. Align two pre-drilled holes on each Leg B & Leg C with two Dowels on each side of Leg Lower Connector D . Insert Cross Nuts 4 into pre-drilled holes in Leg Lower Connector D with the slot facing out.
- Page 9 ASSEMBLY MODEL # 3AXCSAW-03 STEP 2 1. Attach Leg Upper Connector E to Leg B and Leg C using four Allen Key Screws 1 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3. Repeat for the second Leg Upper Connector E .
- Page 10 ASSEMBLY MODEL # 3AXCSAW-03 STEP 3 1. Attach Top A to Leg Upper Connector E using six Allen Key Bolts 3 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten. 3. Repeat on the opposite side. 10/14...
- Page 11 ASSEMBLY MODEL # 3AXCSAW-03 STEP 4 1. Attach Leg Supporter F to corner in between Legs and Top A at specified location using two Allen Key Screws 2 . 2. Use Allen Key 5 to tighten screws. Do not over-tighten.
- Page 12 ASSEMBLY MODEL # 3AXCSAW-03 STEP 5 1. Insert four Wood Bolt Caps 6 into exposed bolt holes on Legs B and Legs C . 12/14...
-
Page 13: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 14 Question, problems, missing parts? Before returning your product please email Customer Support at simpli-home.com/customer-support or call Customer Support at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 4 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings...
