SIMP
I
HOME
I
L I F E B Y D E S I G N
WARM SHAKER / NORFOLK / LEXINGTON

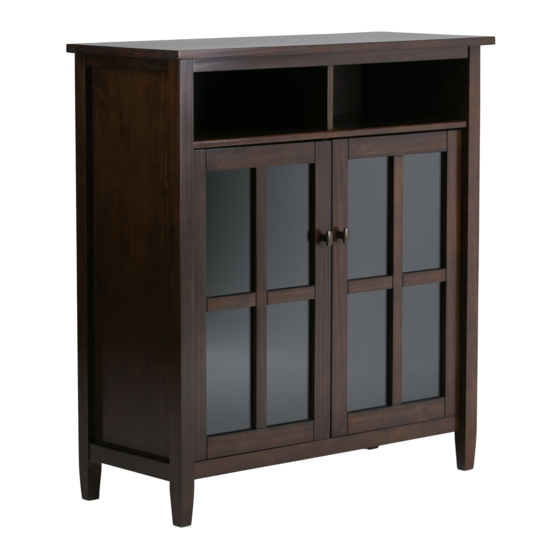

MEDIUM STORAGE & MEDIA CABINET
MODEL #
AXWSH005-TB
1/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wyndenhall Brooklyn + Max Warm Shaker AXWSH005-TB and is the answer not in the manual?

Questions and answers

Related Manuals for Simpli Home Wyndenhall Brooklyn + Max Warm Shaker AXWSH005-TB

Summary of Contents for Simpli Home Wyndenhall Brooklyn + Max Warm Shaker AXWSH005-TB

  • Page 1 SIMP HOME L I F E B Y D E S I G N WARM SHAKER / NORFOLK / LEXINGTON MEDIUM STORAGE & MEDIA CABINET MODEL # AXWSH005-TB 1/18...
  • Page 2 SIMP HOME L I F E B Y D E S I G N Questions, problems, assembly help, missing parts? No need to return the product, we will gladly help and ship your replacement parts free of charge Please call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am –...

  • Page 3: Safety Information

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. SAFETY INFORMATION CAUTION: Injuries and damage can occur from furniture tip over if product is not properly anchored to the wall. Use the Furniture Anti-Tipping Restraint provided with the product.

  • Page 4: Care And Maintenance

    IMPORTANT : Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference. CARE and MAINTENANCE Perhaps the greatest environmental damage to wood furniture comes from wide swings in relative humidity (RH) in our homes. Wood absorbs and desorbs water as relative humidity rises and falls, and in doing so it swells and shrinks.

  • Page 5: Pre-Assembly Information

    PRE-ASSEMBLY INFORMATION MODEL # AXWSH005-TB PARTS DESCRIPTION PARTS DESCRIPTION LEFT SIDE RIGHT SIDE QTY 1 QTY 1 QTY 1 CENTRE SUPPORT LEFT DOOR RIGHT DOOR QTY 1 QTY 1 QTY 1 BOTTOM SHELF TOP SHELF DIVIDER QTY 1 QTY 1 QTY 1 CABINET SHELF LEFT BACK PANEL...

  • Page 6: Hardware Description

    PRE-ASSEMBLY INFORMATION MODEL # AXWSH005-TB HARDWARE DESCRIPTION ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M6 X 30 mm CAM LOCK QTY 1 QTY 8 QTY 12 SETS PHILLIPS SCREW PHILLIPS SCREW M4 X 15 mm M3 X 15 mm MAGNET AND PLATE QTY 2 SETS QTY 24...
  • Page 7 COMPONENTS – KEY DIAGRAM MODEL # AXWSH005-TB 7/18...
  • Page 8 ASSEMBLY MODEL # AXWSH005-TB STEP 1 1. Attach Bottom Shelf E to Centre Support C with Allen Key Screws 1 through pre-drilled holes. 2. Attach Cam Lock Pins 2 to Top Shelf F using guide holes. 3. Align Cam Lock Pins 2 and insert into pre-drilled holes on Centre Support C . 4.
  • Page 9 ASSEMBLY MODEL # AXWSH005-TB STEP 2 1. Attach Cam Lock Pins 2 into guide holes on Left Side BL ( 3 Cam Lock Pins for the bottom and 2 for the top ). 2. Align Cam Lock Pins 2 with pre-drilled holes of Bottom Shelf E and Top Shelf F . 3.
  • Page 10 ASSEMBLY MODEL # AXWSH005-TB STEP 3 1. To attach Right Side BR to Bottom Shelf E and Top Shelf F repeat steps 1 - 4 in step 2. 10/18...
  • Page 11 ASSEMBLY MODEL # AXWSH005-TB STEP 4 1. Insert 2 Wood dowels 11 into corner of each Side BL , BR . 2. Insert 6 Wood dowels 11 into Divider G . 3. Use rubber mallet to tap Dowels 11 into bottom of holes securely. ½ length of Dowels should be exposed.
  • Page 12 ASSEMBLY MODEL # AXWSH005-TB STEP 5 & 1. Attach Adjustable Hinges 12 to Doors DL , DR using Phillips Screws 4 into guide holes on Doors DL , DR . 2. Attach Adjustable Hinges on Doors DL , DR to Sides BL , BR using Phillips Screws 4 into guide holes on Sides BL , BR .

  • Page 13: Important Note

    ASSEMBLY MODEL # AXWSH005-TB IMPORTANT NOTE: Tighten the Screw marked II to fasten hinge. The door may need to be adjusted so that all the spaces between the door and the unit sides are equal. To adjust, follow instructions: 1. Side adjustment 4 mm To move the door towards the side panel, loosen screw I and tighten screw II .
  • Page 14 ASSEMBLY MODEL # AXWSH005-TB STEP 6 1. Attach Magnet Plates 6 to inside corners of Doors DL , DR using Phillips Screws 5 into guide holes on Doors DL , DR . 2. Attach Magnets 6 to inside corner of Bottom Shelf E using Phillips Screws 5 into guide holes on Bottom Shelf E .
  • Page 15 ASSEMBLY MODEL # AXWSH005-TB STEP 7 1. Attach Back Panels IL , IR to back of cabinet using Phillips Screws Round Head 9 into pre-drilled guide holes. 2. Use Phillips screwdriver to tighten screws. STEP 8 1. Use 4 Shelf Supports 7 for each Cabinet Shelf H in desired location. 2.
  • Page 16 FURNITURE TIP OVER RESTRAINT ASSEMBLY WARNING Serious or fatal crushing injuries can occur from furniture tip-over. If the furniture tip over restraint kit is not in the box, please contact our customer service department in order to obtain another kit before using the furniture. NOTE: The screwdriver is not STEP 9 included in the hardware pack.
  • Page 17 FURNITURE TIP OVER RESTRAINT ASSEMBLY Furniture Tip Over Restraint Instructions: Attach one of the mounting brackets securely to the back edge of the furniture. Use the shorter screw. Determine where furniture is to be placed and mark location on the wall for mounting bracket screw hole approximately 2 inches below the bracket mounted to the furniture.

  • Page 18: Warranty

    L I F E B Y D E S I G N WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase.
