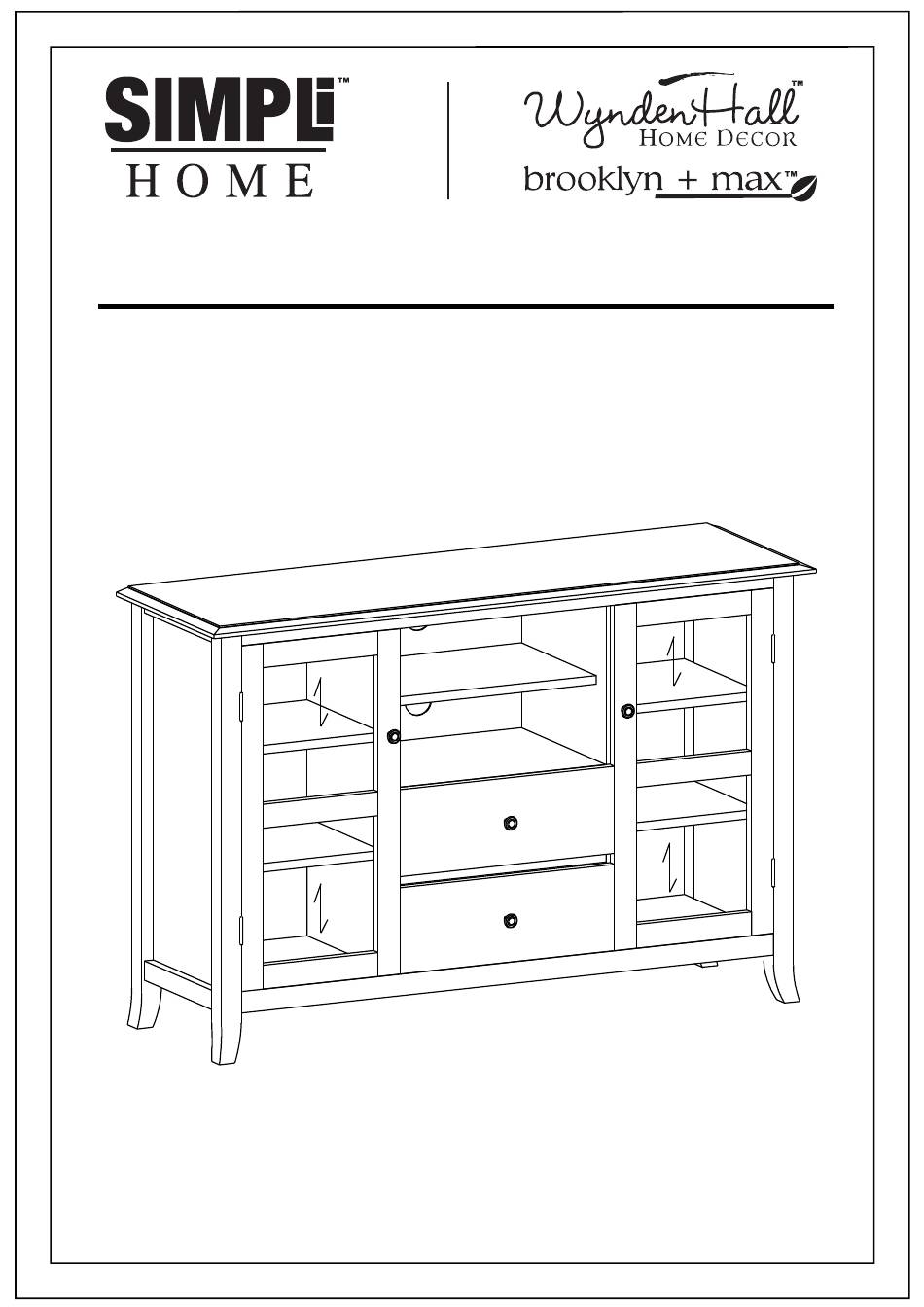

- Page 1 DEVON / COLLINS / THORNTON TALL TV MEDIA STAND MODEL # 3AXC DEV 6 1/18...
- Page 2 DO NOT RETURN FOR REPLACEMENT PARTS OR OTHER INQUIRIES PLEASE CONTACT US AT: simpli home.com/customer-support PLEASE ENSURE TO HAVE THE MODEL # FROM THE PACKAGING OR INSTRUCTION BOOKLET 2/18...
-
Page 3: Safety Information
IMPORTANT : Please read this manual carefully before beginning assembly of this product Keep this manual for future reference. SAFETY INFORMATION Identify all the parts and hardware. Do not discard of the packaging until you have checked that you have all of the parts and hardware required. Hardware package may have spare parts. -
Page 4: Pre-Assembly Information
PRE-ASSEMBLY INFORMATION MODEL # 3AXC DEV 6 PARTS DESCRIPTION SIDE BOTTOM SHELF QTY 1 QTY 1 PAIR TOP SHELF CENTRE SHELF DIVIDER QTY 1 QTY 1 QTY 1 PAIR SHELF DOOR SHELF QTY 1 QTY 1 PAIR QTY 4 FLIP DOWN DOOR BACK PANEL DRAWER FRONT QTY 1... -
Page 5: Hardware Description
PRE-ASSEMBLY INFORMATION MODEL # 3AXC DEV 6 HARDWARE DESCRIPTION HANDLE ALLEN KEY SCREW CAM LOCK PIN ALLEN KEY M4 X 25 mm M6 X 30 mm CAM LOCK QTY 1 QTY 4 SETS QTY 22 QTY 16 SETS PHILLIPS SCREW HINGE ROUND HEAD PHILLIPS SCREW... - Page 6 COMPONENTS – KEY DIAGRAM MODEL # 3AXC DEV 6 6/18...
- Page 7 ASSEMBLY MODEL # 3AXC DEV 6 STEP 1 1. Attach 4 Cam Lock Pins 2 to back of Drawer Front L . 2. Align Cam Lock Pins with pre-drilled holes and attach Drawer Sides M. 3. Insert 2 Cam Locks 2 into pre-drilled holes on each Drawer Side M. 4.
- Page 8 ASSEMBLY MODEL # 3AXC DEV 6 STEP 3 1. Align Drawer Back N with Drawer Bottom O and press firmly into slot . 2. Attach back using 2 Allen Key Screws 1 through pre-drilled holes on each Side M . 3.
- Page 9 ASSEMBLY MODEL # 3AXC DEV 6 STEP 5 1. Insert 6 Dowels 11 into Centre Shelf E . 2. Attach 3 Cam Lock Pins 2 to each Divider F . 3. Align Cam Lock Pins with pre-drilled holes and attach Top shelf D . 4.
- Page 10 ASSEMBLY MODEL # 3AXC DEV 6 STEP 6 1. Insert 2 Dowels 11 into each Dividers F . 2. Align Dowels 11 with pre-drilled holes and attach Bottom shelf C . 3. Using 6 Allen Key Screws 1 attach Bottom shelf C to Divider F . 10/18...
- Page 11 ASSEMBLY MODEL # 3AXC DEV 6 STEP 7 1. Insert 2 Dowels 11 into each Side B . 2. Attach 3 Cam Lock Pins 2 into each Side B . 3. Align and insert Cam Lock Pins 2 and Dowels 11 on Sides B with pre-drilled holes on Bottom Shelf C .
- Page 12 ASSEMBLY MODEL # 3AXC DEV 6 STEP 8 1. Insert 2 Dowels 11 into top corners of each Side B . 2. Align pre-drilled holes on bottom corners of Top A with Dowels 11 in Sides B . 3. Using 12 Allen Key Screws 1 attach Top A to Side B and Divider F . STEP 9 1.
- Page 13 ASSEMBLY MODEL # 3AXC DEV 6 STEP 10 NOTE: The screwdriver is not included in the hardware pack. 1. Attach Hinges on Door I to Sides B using Phillips Screw 9 . 2. Attach Hinges 6 to Flip Down Door K and Centre shelf E using Phillips Screw 6 . 3.
- Page 14 ASSEMBLY MODEL # 3AXC DEV 6 STEP 11 1. Use 4 Shelf Supports 8 for each Shelf G & H in desired location. 2. 2 Shelf Support 8 may be used on back top of each Shelf G & H as a tipping restraint. 14/18...
- Page 15 ASSEMBLY MODEL # 3AXC DEV 6 STEP 12 NOTE: The screwdriver is not included in the hardware pack. STEP 13 STEPS 12 & 13 1. To attach Tipping Restraint 13 , fllow instructions on Tipping Restraint package. 15/18...
-
Page 16: Warranty
WARRANTY Thank you for purchasing a Simpli Home – Wyndenhall – Brooklyn + Max product. These products have been made to demanding, high-quality standards and are guaranteed for domestic use against manufacturing faults for a period of 12 months from the date of purchase. This warranty does not affect your statutory rights. - Page 17 Question, problems, missing parts? Before returning please email Customer Support at simpli-home.com/customer-support or call Customer Service at 1-866-518-0120 ext. 262 Monday to Friday between 9 am – 5 pm EST For more information visit us on our website www.simpli-home.com Like us on facebook www.facebook.com/simplihomefurnishings 17/18...
- Page 18 Upload an image of our furniture in your home with a short review to our facebook page and have a chance to Win your choice of any one of Simpli Home furniture pieces Free!!! www.facebook.com/simplihomefurnishings (draws monthly – shipping included)
