Aqualisa Visage Digital Installation Manual
Concealed with adjustable height or fixed head
Hide thumbs
Also See for Visage Digital:
- Installation manual (26 pages) ,
- Installation instructions manual (17 pages) ,
- Installation manual (17 pages)
Related Manuals for Aqualisa Visage Digital
Summary of Contents for Aqualisa Visage Digital
- Page 1 Visage Digital Concealed with adjustable height or fixed head Installation guide Visage Digital concealed with adjustable height or fixed head installation instructions Page 1...

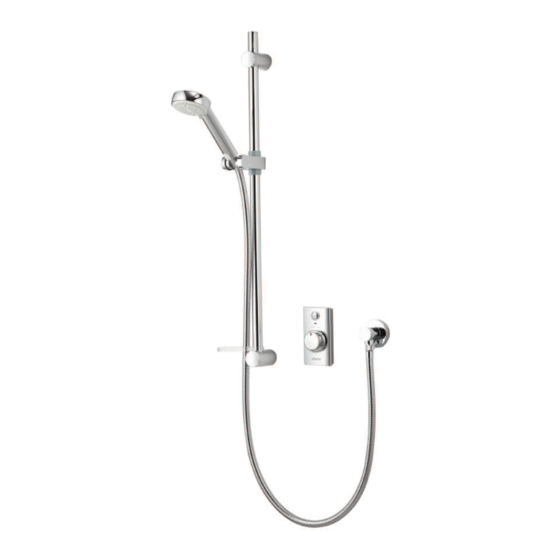

- Page 2 Visage Digital concealed with adjustable height or Fixed head Visage Digital concealed Visage Digital concealed with fixed head with adjustable head Visage Digital concealed with adjustable height or fixed head installation instructions Page 2...
- Page 3 Components Fixed head (Gravity pumped) Fixed head (HP/Combi) Literature not shown. Literature not shown. Components Components Adjustable (Gravity pumped) Adjustable (HP/Combi) Literature not shown. Literature not shown. Visage Digital concealed with adjustable height or fixed head installation instructions Page 3...
-
Page 4: Safety Information
5ºC or rise above 40ºC. We do not recommend the use of Digital controls in steam therapy facilities. This appliance must be earthed. Visage Digital concealed with adjustable height or fixed head installation instructions Page 4... - Page 5 A setting of 400kPa ((4 bar)(60psi)) is recommended. It should be noted that daytime pressures approaching 600kPa ((6 bar)(80psi)) can rise above the stated maximum overnight. Visage Digital concealed with adjustable height or fixed head installation instructions Page 5...
- Page 6 If plastic pipe is used, the tube insert must not increase the tube diameter or extend the cut-off length by more than 2mm. THESE FITTINGS ARE NOT SUITABLE FOR STAINLESS STEEL TUBE. COMPRESSION FITTINGS MUST NOT BE USED. Visage Digital concealed with adjustable height or fixed head installation instructions Page 6...
-
Page 7: Pipe Sizing
Directive (2006/95/EC) and the EMC Directive (2004/108/EC). After installation Familiarise the end user with the Digital operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk Visage Digital concealed with adjustable height or fixed head installation instructions Page 7... - Page 8 Compression fittings should not be used on the inlet and outlet spigots and may affect the warranty if fitted. Visage Digital concealed with adjustable height or fixed head installation instructions Page 8...
- Page 9 Flush out the hot and cold supply pipes. The maximum hot water inlet temperature must be no more than 65°C. Visage Digital concealed with adjustable height or fixed head installation instructions Page 9...
- Page 10 Drill and prepare the wall fixings for the controller using the fixings provided, if suitable. Visage Digital concealed with adjustable height or fixed head installation instructions Page 10...
- Page 11 Hold the controller in position and secure to the back plate using the fixing screws at the base of the controller. Visage Digital concealed with adjustable height or fixed head installation instructions Page 11...
-
Page 12: This Appliance Must Be Earthed
Unscrew the single fixing on top of the processor box and then carefully tilt the lid up and off the location lugs and pull the lid clear. Visage Digital concealed with adjustable height or fixed head installation instructions Page 12... - Page 13 Gravity Pumped Digital processors fitted to gravity systems may be set to ‘NORMAL GRAVITY’, or for water economy, ‘ECO’ flow rate modes. WHEN MAKING ANY ADJUSTMENT TO THE PROCESSOR SETTINGS THE POWER MUST BE ISOLATED. Visage Digital concealed with adjustable height or fixed head installation instructions Page 13...
- Page 14 Site conditions can affect temperature settings, installer to adjust as required. ALL COPPER PIPE WORK MUST BE CROSS-BONDED AND CONNECTED TO A RELIABLE EARTHING POINT. Visage Digital concealed with adjustable height or fixed head installation instructions Page 14...
- Page 15 Clean and lubricate the pipe using a suitable (silicone based) lubricant. Remove the locking screw, rotate the chrome outlet assembly and remove the outlet from the wall mounting plate. Visage Digital concealed with adjustable height or fixed head installation instructions Page 15...
- Page 16 The top rail end bracket can be adjusted to suit existing screw holes in the finished wall by sliding the bracket up or down the rail to suit the required position. Visage Digital concealed with adjustable height or fixed head installation instructions Page 16...
- Page 17 Secure the top rail bracket into position using the screws provided, if suitable. Attach the bottom rail end body onto the rail. Slide the rail assembly up through the top rail end body. Visage Digital concealed with adjustable height or fixed head installation instructions Page 17...
- Page 18 Pass the hose through the gel hanger then place the handset into the handset holder. Ensuring the hose washer is in the correct posi- tion; attach the hose to the wall outlet. Visage Digital concealed with adjustable height or fixed head installation instructions Page 18...
- Page 19 Carefully remove the fixed head arm and drill and prepare the fixings, using the fixings provided, if suitable, taking care to avoid pipe work hidden in the wall. Visage Digital concealed with adjustable height or fixed head installation instructions Page 19...
- Page 20 Visage Digital concealed with adjustable height or fixed head installation instructions Page 20...
- Page 21 Part No:700983 Issue 02 Jul 15 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
