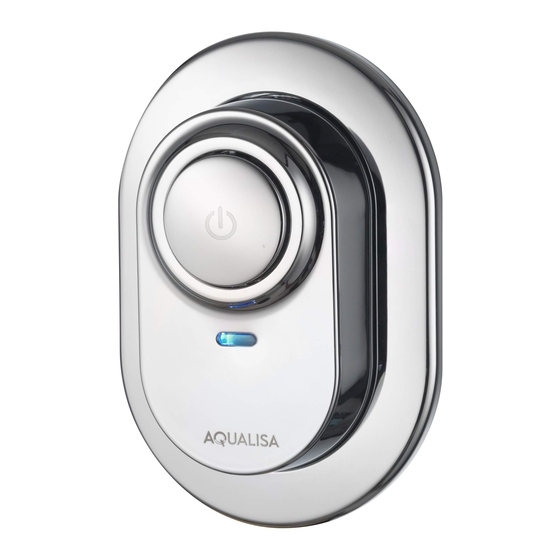

Aqualisa Visage Installation Manual
Digital remote control
Hide thumbs
Also See for Visage:
- Installation manual (26 pages) ,
- Installation instructions manual (17 pages) ,
- Installation manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for Aqualisa Visage
Summary of Contents for Aqualisa Visage

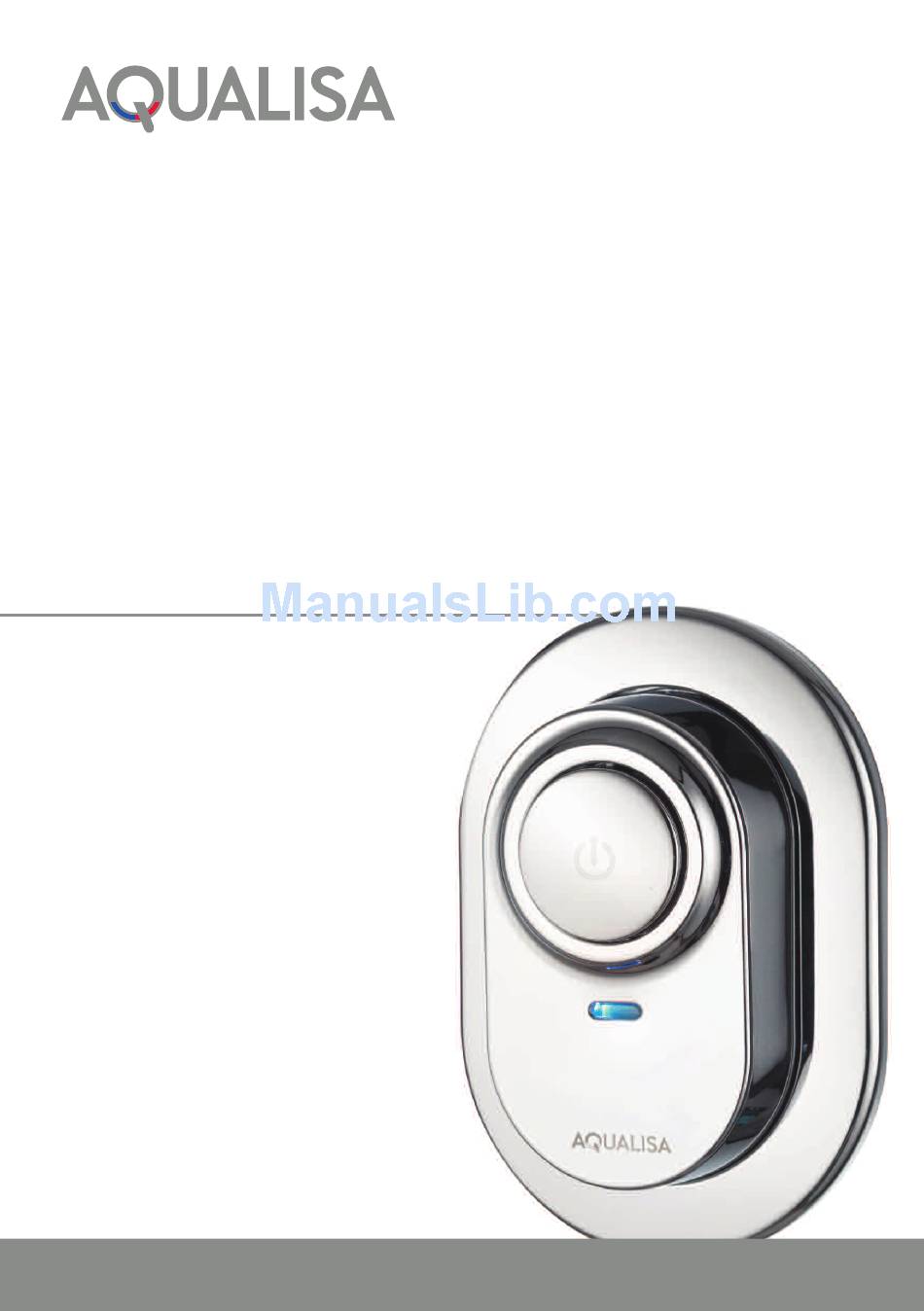

- Page 1 Visage Digital Remote control Installation guide Visage Digital remote control installation instructions Page 1...
- Page 2 Visage Digital remote control Visage Digital remote control VSD.B3.DS.14 Visage Digital remote control installation instructions Page 2...
- Page 3 Components Literature not shown Visage Digital remote control installation instructions Page 3...
- Page 4 Important information The Visage Digital remote control is a remote button which provides a secondary method of ‘Start/stop’ for Visage Digital shower systems. When used with the Visage Digital diverter system, the remote can operate each outlet by pushing and holding the ‘Start/stop’ button for a few seconds as required. The remote control may be sited inside the showering area, as long as it is not subjected to continuous spray, or it can be sited outside the showering area –...
-
Page 5: Installation Instructions
THE DIGITAL PROCESSOR MUST BE ISOLATED FROM THE MAINS POWER SUPPLY PRIOR TO INSTALLING THE VISAGE DIGITAL REMOTE CONTROL. Single outlet IF FITTING THIS PRODUCT WITH A VISAGE DIGITAL SINGLE OUTLET SHOWER SYSTEM, PLEASE FOLLOW THE FITTING INSTRUCTIONS BELOW. Visage Digital remote control installation instructions... - Page 6 Prepare suitable wall fixings to accommodate no. 8 non-rusting countersunk head screws of a suitable length (not included). Visage Digital remote control installation instructions Page 6...
- Page 7 DATA CABLES MUST BE PROTECTED BY SUITABLE SHEATHING OR CONDUIT IN THE EVENT OF SERVICING AND MAINTENANCE. Pull the data cable through before securing the back plate to the wall using suitable no. 8 non-rusting countersunk screws. Visage Digital remote control installation instructions Page 7...
- Page 8 Locate the slot at the bottom of the button assembly, onto the locating peg at the bottom of the back plate assembly, and offer the button into position. Visage Digital remote control installation instructions Page 8...
- Page 9 BEFORE ANY ELECTRICAL ADJUSTMENT IS ATTEMPTED, THE ELECTRICITY SUPPLY MUST BE TURNED OFF AT THE MAINS SWITCH. ELECTRICAL INSTALLATION MAY ONLY BE CARRIED OUT BY A QUALIFIED PERSON. Visage Digital remote control installation instructions Page 9...
- Page 10 Prior to commissioning the Visage Digital remote control following the procedure overleaf, please refer to the installation instructions provided with the main Visage Digital product to complete the installation of the Digital processor. Dual outlet IF FITTING THIS PRODUCT WITH A VISAGE DIGITAL DIVERT SHOWER SYSTEM, PLEASE FOLLOW THE FITTING INSTRUCTIONS BELOW.
- Page 11 10m Data 10m Data Cable Cable Splitter box 2m Data Cable Wiring diagram Visage Digital remote control installation instructions Page 11...
- Page 12 DATA CABLES MUST BE PROTECTED BY SUITABLE SHEATHING OR CONDUIT IN THE EVENT OF SERVICING AND MAINTENANCE. Pull the data cable through be- fore securing the back plate to the wall using suitable no. 8 non rusting countersunk screws. Visage Digital remote control installation instructions Page 12...
- Page 13 Locate the slot at the bottom of the button assembly, onto the locating peg at the bottom of the back plate assembly, and offer the button into position. Visage Digital remote control installation instructions Page 13...
- Page 14 Place the wall plate into position and push flush to the finished wall surface, taking care to avoid any transfer of mastic from the wall plate onto the button assembly. Visage Digital remote control installation instructions Page 14...
- Page 15 (supplied with the Digital Diverter) into port 2 on the Digital Diverter. Plug the end of the attached data cable feeding from the splitter box into port 1 of the Digital Diverter. Visage Digital remote control installation instructions Page 15...
- Page 16 OPERATION OF THIS PRODUCT. Prior to commissioning the Visage Digital remote control following the procedure overleaf, please refer to the installation instructions provided with the main Visage Digital product to complete the installation of the Digital processor. Visage Digital remote control installation instructions...
- Page 17 Part No:700986 Issue 01 Jan 14 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
