Summary of Contents for Aqualisa Visage

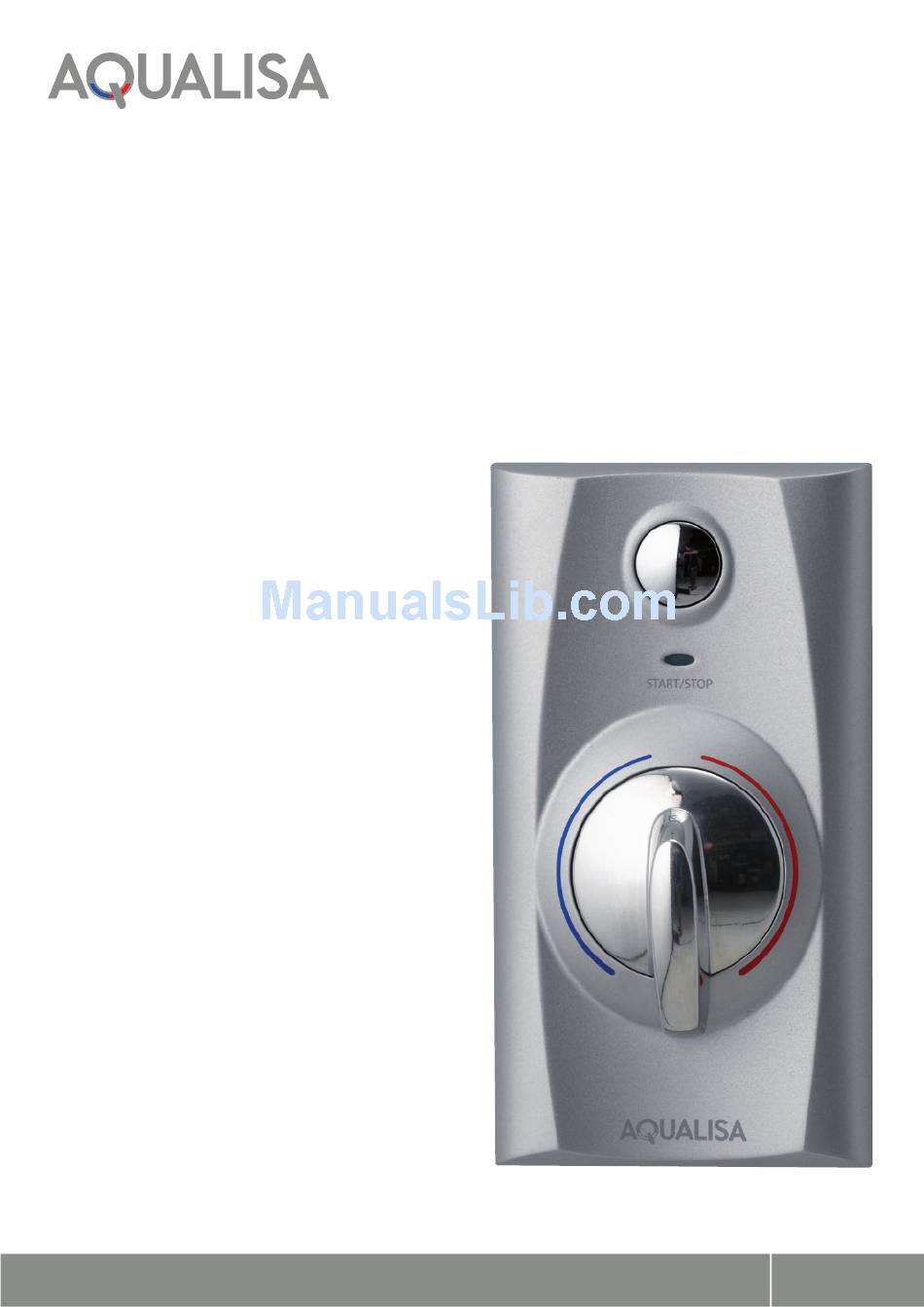

Page 1
The original manufacturer does not accept any liability under the WEEE directive within the UK. In other EU countries the WEEE directive may apply and, at end of life, product must be disposed of at a suitable WEEE recycling centre Visage Digital concealed installation instuctions page 1...
Page 2
Shower systems Visage Digital concealed Visage Digital concealed with fixed head with adjustable head Visage Digital concealed installation instuctions page 2...
Pressures: The Visage Digital standard shower system is designed to operate up to a maximum static pressure of 800kPa ((8 bar)(115psi)). Where pressures are likely to exceed 800kPa ((8 bar)(115psi)), a pressure reducing valve must be fitted to the incoming mains supply.
Water Supply Regulations prior to connection of the product. After installation Familiarise the end user with the Visage Digital operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk Visage Digital concealed installation instuctions...
Page 6
Visage Digital is supplied with universal fittings intended to secure it to a suitable wall. To ensure safe operation and installation of this product, the processor MUST be installed in one of the orientations shown.
Page 7
DO NOT SOLDER NEAR TO PLASTIC COMPONENTS Run a pipe from the mixed water outlet on the Digital processor through the wall to the proposed siting for the shower hose or fixed head outlet. Visage Digital concealed installation instuctions page 7...
Page 8
Offer the data cable into the rear of the controller in the correct orientation. Push the data cable into position ensuring the cable connector watertight seals are pushed fully home. Visage Digital concealed installation instuctions page 8...
Connect the low voltage data cable into the socket adjacent to the temperature adjuster as indicated on the label. Feed the cable out of the processor box ensuring it is correctly routed within the data cable channel. Visage Digital concealed installation instuctions page 9...
Page 10
Trim the projecting pipe to a length of 15-22mm measured from the finished wall surface, using a rotary type cutter. If a hacksaw is used, the pipe end must be carefully de-burred and chamfered. Visage Digital concealed installation instuctions page 10...
Page 11
Fit the rail end clip into position and loosely fit the lower bracket into position. Pass the rail through the handset holder whilst keeping the slider levers depressed with the handset holder pointing in a downward direction. Visage Digital concealed installation instuctions page 11...
Page 12
15 seconds without the handset attached to clear any internal debris, which may be present. Turn off the shower and pass the hose through the gel hook/hose restraint (if required). Visage Digital concealed installation instuctions page 12...
Page 13
Ensuring the fixing bush is clean and free of dust, fit the 15mm O ring against the end of the fixing bush. Lubricate the O ring using a suitable silicone based lubricant. Visage Digital concealed installation instuctions page 13...
Page 14
Check for leaks and if all is sound refit the shower head to the fixed arm and push the cover plate into position flush with the finished wall surface. Visage Digital concealed installation instuctions page 14...
Page 15
3. Angular adjustment is made by carefully but firmly pulling forwards or pushing back the shower head against the knuckle ratchet in the holder. Visage Digital concealed installation instuctions page 15...
Page 16
Cleaning Your Visage Digital shower system should be cleaned using only a soft cloth and washing-up liquid. DO NOT USE ABRASIVE CLEANERS To reduce the need for chemical descaling in hard water areas, your shower head incorporates a ‘clear flow’ system whereby any scale build up can be broken down by gently rubbing the flexible tips of the jets during use.
Page 17
Part No: 468604 Issue 02 Apr 09 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
