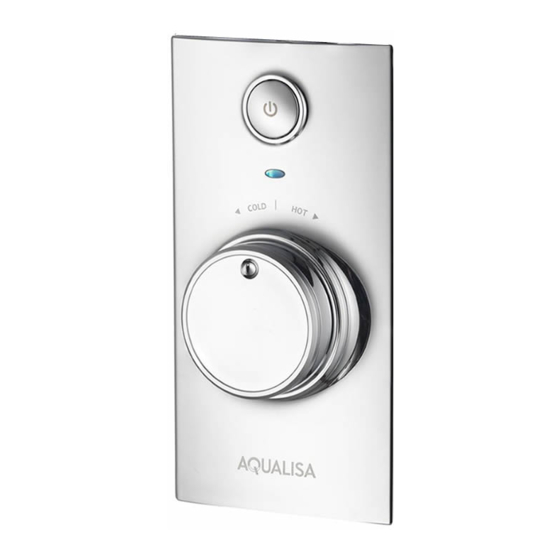

Aqualisa Visage Installation Manual
Digital diverter
Hide thumbs
Also See for Visage:
- Installation manual (26 pages) ,
- Installation instructions manual (17 pages) ,
- Installation manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for Aqualisa Visage
Summary of Contents for Aqualisa Visage
- Page 1 Visage Digital Digital diverter Installation guide Visage Digital diverter installation instructions Page 1...
- Page 2 Visage Digital diverter Visage Digital concealed Visage Digital concealed with adjustable and with adjustable head and fixed head overflow bath fill Visage Digital diverter installation instructions Page 2...
- Page 3 Components In addition to the components featured within the main product system installation guide, Digital diverter systems also include the following components. Suitable for use with Gravity Pumped variants only Literature not shown Visage Digital diverter installation instructions Page 3...
- Page 4 The control must not be installed in situations where the ambient temperature is likely to fall below 5°C or rise above 40°C. We do not recommend the use of Visage Digital in steam therapy facilities. This appliance must be earthed.
- Page 5 Installation of Digital Gravity Pumped processor (for gravity stored systems) The Visage Digital Gravity Pumped shower system is designed to operate up to a maximum static pressure of 100kPa ((1 bar)(10 metres head)(14.5psi)). Under no circumstances must the pumped processor be connected directly to the water main or in line with another booster pump.
- Page 6 Water Supply Regulations prior to connection of the product. After installation Familiarise the end user with the Visage Digital operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk Visage Digital diverter installation instructions...
- Page 7 Digital diverter inlet and outlets. All pipe work should be run in 15mm pipe and all pipe work should be supported. For optimum performance use copper pipe and minimise the pipe length runs and amount of elbow fittings. Visage Digital diverter installation instructions Page 7...
- Page 8 Ensuring the supply pipe work connections have been flushed through in accordance with the main installation instructions provided, connect the processor outlet pipe to the diverter inlet pipe. PLEASE NOTE DIRECTION OF ARROW ON ISOLATION VALVE TO INDICATE DIRECTION OF FLOW. Visage Digital diverter installation instructions Page 8...
- Page 9 IMAGES SHOWN ARE AERIAL VIEWS AND ARE FOR ILLUSTRATIVE PURPOSES ONLY. Ensure that the isolation valves are connected to the diverter valve outlets, with the arrows correctly aligned according to the direction of flow. Visage Digital diverter installation instructions Page 9...
- Page 10 If fitting this system complete without the secondary Digital remote control, please refer to the wiring diagram below and follow instructions 9 to 11, ignoring instructions 12 to 15. Visage Digital diverter installation instructions Page 10...
- Page 11 10m Data Cable 2m Data Cable Wiring diagram Plug one end of the 2m data cable (supplied with the Digital Diverter) into the open entry port of the main processor box. Visage Digital diverter installation instructions Page 11...
- Page 12 Digital Diverter. If fitting this system complete with a secondary Digital remote control, please refer to the wiring diagram below and follow instructions 12 to 15, ignoring instructions 9 to 11 above. Visage Digital diverter installation instructions Page 12...
- Page 13 10m Data Cable Cable Splitter box 2m Data Cable Wiring diagram Plug one end of the 2m data cable (supplied with the Digital Diverter) into the open entry port of the main processor box. Visage Digital diverter installation instructions Page 13...
- Page 14 10m low voltage data cable feeding from the remote button, into the two side by side entry ports on the splitter junction box as shown. Visage Digital diverter installation instructions Page 14...
- Page 15 Resume installation following the main and shower/bath fittings installation instructions provided prior to completing the commissioning procedure. Visage Digital diverter installation instructions Page 15...
- Page 16 Part No:700985 Issue 01 Jan 14 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
