Bticino 391782 User Manual

Bticino 391782 User Manual

1,3 megapixel bullet camera with ir led
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
391782
1,3 Megapixel bullet camera
with IR LED
User Manual
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 391782 and is the answer not in the manual?

Questions and answers

Related Manuals for Bticino 391782

Summary of Contents for Bticino 391782

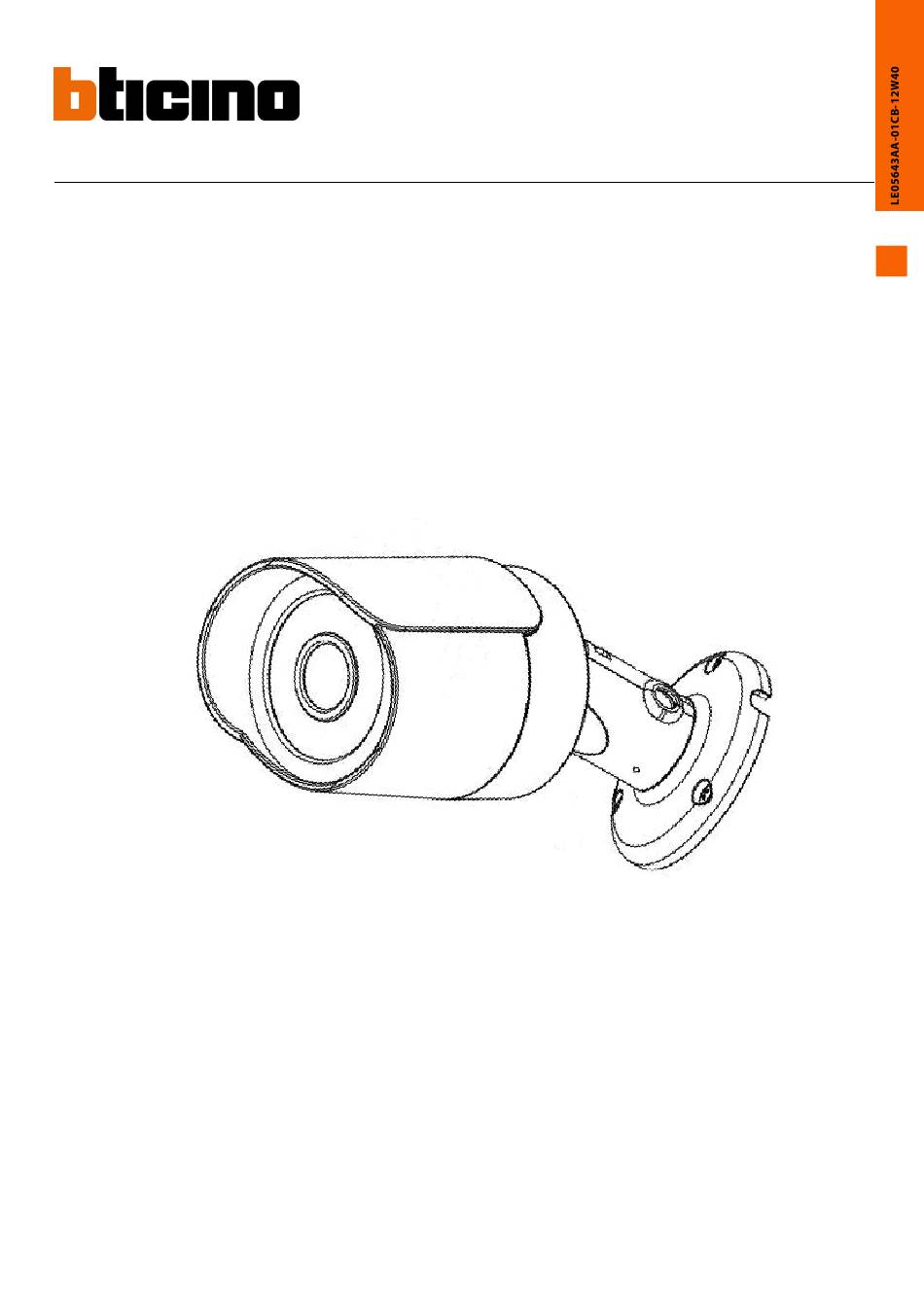

  • Page 1 391782 1,3 Megapixel bullet camera with IR LED User Manual...

  • Page 2: Table Of Contents

    Indice General Introduction ........................................3 Accessories..........................................3 Features.............................................3 Specifications..........................................4 1.3.1 Performance........................................4 Factory Default Setup ....................................6 1.3.2 Framework ............................................11 Dimensions ........................................... 11 Installation ............................................11 Device Installation ......................................11 Connecting to a device and opening the web application ........................12 IE options configuration for config tool and and IE.......................... 12 4.1.1 Connection with the Search Tool.................................

  • Page 3: General Introduction

    1,3 Megapixel bullet camera with IR LED 1 General Introduction Accessories Accessory Name Amount IP Camera Accessories bag (screws and installation template) Quick Start guide 1.2 Features Functions features Different user rights for each group, one user belongs to one group. User The user right shall not exceed the group rights.

  • Page 4: Specifications

    1.3 Specifications 1.3.1 Performance Parameters IP bullet ext Main Processor TI Davinci high performance DSP Embedded LINUX System Real-time network, local record, and remote operation at the same time. Resources Remote operation interface such as WEB, VMS software User Interface Bit stream statistics, log, and software version.
  • Page 5 1,3 Megapixel bullet camera with IR LED Parameters Tc IP comp ext 396 (18*22) detection zones: sensitivity level ranges from 1 to 6 (The level has the highest sensitivity) Motion Detect Activation event: Video storage, image snapshot, log, email, etc. Activation event: Video storage, image snapshot, log, email etc.

  • Page 6: Factory Default Setup

    1.3.2 Factory Default Setup Function Setup Item Default Settings Type Brightness Contrast Saturation Gain Mode Auto Gain Max Exposure Mode Auto Scene Mode Auto Day/night mode Auto Mirror Disable Flip Disable Code-Stream Type General Encode Mode H.264B Resolution 720P（1280*720） PAL: 25 Frame Rate（FPS）...
  • Page 7 1,3 Megapixel bullet camera with IR LED Function Setup Item Default Settings Type Enable Enable Code-Stream Type General Encode Mode H.264B Resolution CIF(352×288/352×240) PAL: 25 Video Extra stream Frame Rate（FPS） NTSC:30 Bit Rate Type Reference Bit Rate 192-1024Kb/S Bit Rate 1024 I frame Interval Snapshot Type...
  • Page 8 Function Setup Item Default Settings Type Max connection TCP port 37777 Connection UDP port 37778 HTTP port RTSP port Enable Disable PPPoE User Name Password Server Type Disable, CN99 DDNS Server IP none Port DDNS Domain Name none User Name none Password Update Period...
  • Page 9 1,3 Megapixel bullet camera with IR LED Function Setup Item Default Settings Type Enable Enable Bonjour Server name Depends on the device. Multicast address 239.255.42.42 Multicast Port 36666 Real-time monitor Command Enable Disable Anti-dither 5 seconds Sensitivity Motion Record Channel Enable Detect Record Delay...
  • Page 10 Function Setup Item Default Settings Type Record To Set Schedule Schedule Snapshot To Set Schedule Timer Disable Path : Motion Detect Disable Record Snapshot Alarm Disable FTP enable Disable Destination (Storage ) Server IP Port User name anonymity Password Pack duration Pre-record Disk Full Overwrite...

  • Page 11: Framework

    1,3 Megapixel bullet camera with IR LED 2 Framework 2.1 Dimensions 3 Installation 3.1 Device Installation Follow the steps listed below to install the device. 1- Paste the installation map on the surface of the wall or the ceiling. 2- Dig the installation holes according to the installation map. 3- Open the accessories bag and then take the expansion bolt out.

  • Page 12: Connecting To A Device And Opening The Web Application

    4 Connecting to a device and opening the web application 4.1 IE options configuration for config tool and and IE This device supports web access and management via PC. System pops up warning information to ask you whether install control “webrec.cab” or not. Click “OK” button, system can automatically install the control.

  • Page 13: Connection With Internet Explorer

    1,3 Megapixel bullet camera with IR LED Refer to chapter “5.2.1 Connecting to the device’s web interface” 4.1.2 Connection with Internet Explorer IP camera factory default setup: : - IP address: 192.168.1.108 - User name: admin - Password: admin Open Internet Explorer and input IP camera address in the address bar. For example, if your camera IP is 192.168.1.108, input http://192.168.1.108 in IE address bar.

  • Page 14: Quick Configuration Tool

    5 Quick Configuration Tool 5.1 Introduction Quick configuration tool is used to search for current IP address, modify IP address. It can also be used to perform a software upgrade or to modify settings. This tool only applies to the IP addresses in the same network segment. Before using the Quick Configuration Tool, please check that this software is in updated version.
  • Page 15 1,3 Megapixel bullet camera with IR LED 2- Select “Open Device Web” item to go to the web interface: If you can’t connect, ckeck you internet explorer security settings as described in chapter 4.

  • Page 16: Connecting With The Configuration Tool

    5.3 Connecting with the configuration tool (to change the IP address or upgrade the device software. To find devices connected to the network, click the “Refresh” button. The tool will search for devices connected to the network and display them in the form of the list. Description Number.
  • Page 17 1,3 Megapixel bullet camera with IR LED (8) “Upgrade” button opens the interface to upgrade the device firmware: Description Select a check box of a device or several devices with same commercial references into this list. Click “Open” button and select the new firmware in the PC directory. Click “Upgrade”...

  • Page 18: Main Interface Of The Tool

    5.4 Main interface of the tool 5.4.1 Network settings Functions Description Enables or disables the DHCP function. DHCP Enable IPv4/IPv6 Select IPv4 or IPv6 in the combo list. The IP addresses can be changed. IP address of the device. IP Address Subnet mask of the device.

  • Page 19: System Upgrade

    1,3 Megapixel bullet camera with IR LED 5.4.3 System Upgrade Before using the Camera, please install its updated software version. Functions Description Upgrade Click here to select the file to be upgraded File/Open Click here to start the upgrading Current procedure Progress/Upgrade Return to the search interface...
