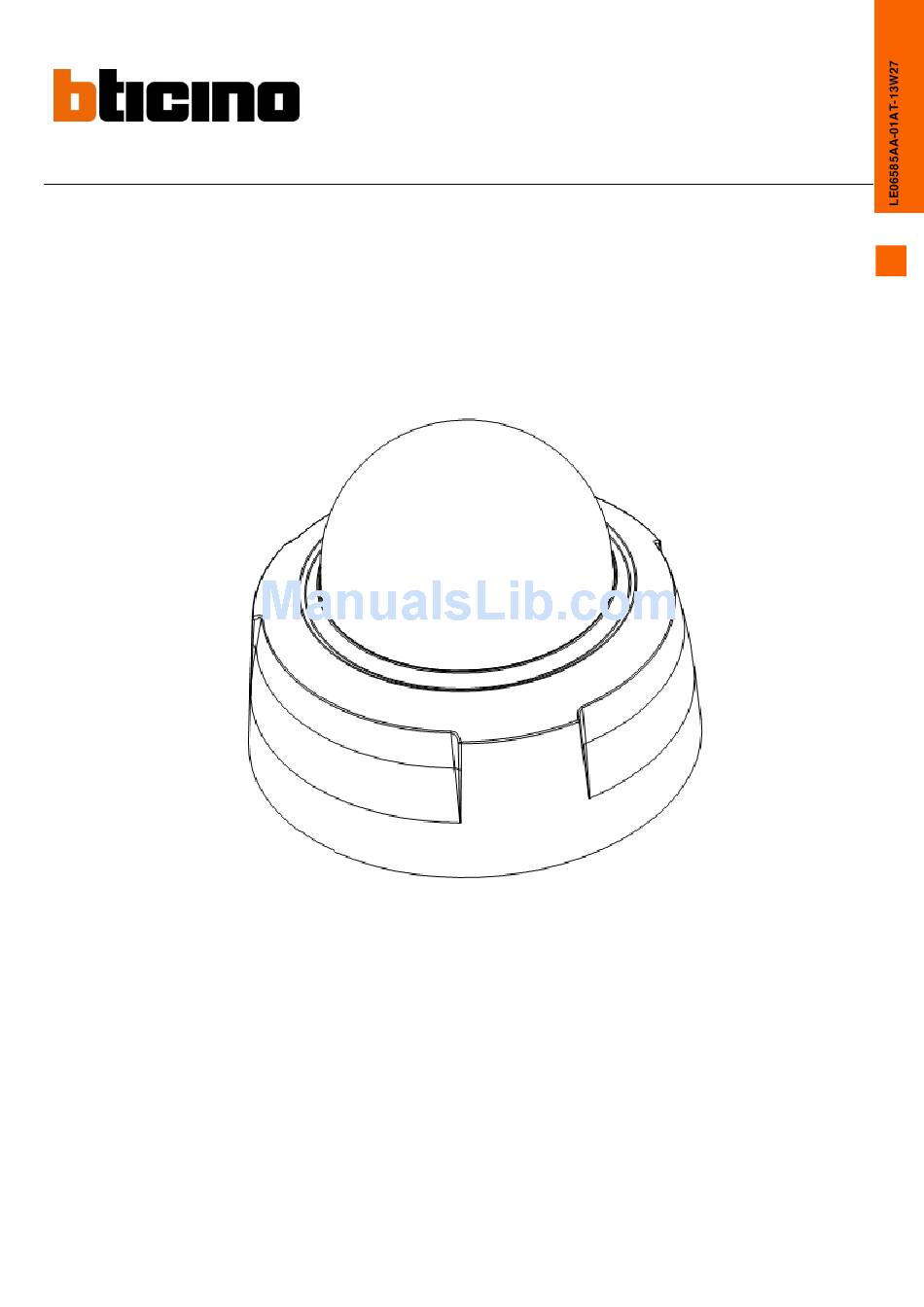

- Page 1 391 792 Outdoor dome IP camera varifocal 2MP User Manuall...
-
Page 2: Table Of Contents
Indice General introduction ..........................3 Accessories ..............................3 Specifications ..............................4 Default network configuration ........................5 Structure ............................... 6 Dimensions ............................... 6 System ................................7 Simplified .............................. 8 Installation of the device ..........................8 SD card installation ............................10 Connecting the device and opening the Web application ............... 11 IE configuration options: configuration tools &... -
Page 3: General Introduction
Outdoor dome IP camera varifocal 2MP 1 General introduction Accessories Accessory name Quantity IP Camera Accessories bag (screws and connection diagrams) Quick start guide... -
Page 4: Specifications
1.2 Specifications Parameters IP Camera Processor TI Davinci Operating system Embedded LINUX CMOS 1/2, 8’’ Sony Exmor Sensor Resolution 2 MP: 1920 (H) x 1080 (V) Compression H264/MJPEG Main flow (Full HD 1080p @ 25 fps) Max. image frequency Secondary flow (D1 @ 25 fps) H.264: 64 to 8,192 Kbps. -
Page 5: Default Network Configuration
Outdoor dome IP camera varifocal 2MP IP Camera Parameters Standard ONVIF 2 / Profile S Live streams, recordings, system configuration, diary, maintenance, Web access updates, etc. Number of simultaneous connections Reset Integral "RESET" button Power supply voltage 12V in CC; 24V in AC; PoE 802.5af. Power consumption 10 W MAXIMUM Operating temperature... -
Page 6: Structure
2 Structure 2.1 Dimensions... -
Page 7: System
Outdoor dome IP camera varifocal 2MP 2.2 System Port numbers Port name Connection Function AC24V Terminal block Camera power supply DC12V Terminal block Camera power supply RJ -45 Network connection & PoE I/O ports Terminal block Alarm input and output Audio input and output Video Output RESET... -
Page 8: Simplified
3 Simplified 3.1 Installation of the device Step 1: Use the Allen key to loosen the three screws on the dome and open the cover. Step 2: Position the base on a wall or on a ceiling using the connection diagram . Step 3: Drill three mounting holes and one hole for the cable. - Page 9 Outdoor dome IP camera varifocal 2MP Step 5: Position the device at the appropriate monitoring angle: - Manually loosen the screws on both sides of the module (1), adjust the angle of inclination of the module. - Manually loosen the central screw at the bottom of the module (2), adjust the angle of rotation of the module. - Adjust the zoom (3) and focus (4) of the lens Step 6: Reattach the cover to the base using the three screws on the dome and the Allen key.
-
Page 10: Sd Card Installation
3.2 SD card installation Important: Before installing the SD card, disconnect the electric power cable to power down the device. Open the dome cover, as explained in step 1, chapter 3.1, to access the SD card port. -
Page 11: Connecting The Device And Opening The Web Application
Outdoor dome IP camera varifocal 2MP 4 Connecting the device and opening the Web application 4.1 IE configuration options: configuration tools & IE This device is accessible via the Internet Explorer web browser. If the system displays a warning message asking if you want to install the webrec.cab control, click the "OK" button and the system will automatically install it. -
Page 12: Connecting With The Search Tool (Config Tool)
4.1.1 Connecting with the search tool (Config Tool) See chapter "5.2.1 Connecting to the device's Web interface" 4.1.2 Connecting with Internet Explorer The camera's default IP settings are as follows: - IP address: 192.168.1.108 - User name: admin - Password: admin Open Internet Explorer 32 Bits in administrator mode. -
Page 13: Quick Configuration Tool (Config Tool)
Outdoor dome IP camera varifocal 2MP 5 Quick configuration tool (Config Tool) 5.1 Presentation The quick configuration tool is used to search for or modify an IP address. It also lets you modify settings. You will find this tool on the CD supplied with your camera. Before using the quick configuration tool, please ensure you have the latest version. -
Page 14: Modifying The Network Parameters
2- Select "Open Device Web" to access the device's Web interface: If you are unable to connect, check the security settings of Internet Explorer as described in Chapter 4. 5.2.2 Modifying the network parameters 1 - Select the IPv4 addresses (the IPv6 addresses will disappear) and then left-click to select your camera. - Page 15 Outdoor dome IP camera varifocal 2MP 2- Click on the "Login" button, or double-click on the highlighted line. The following page will open: The connection settings are pre-filled. 3- Click on the "Login" button. The main interface will appear. Functions Description DHCP Allows you to enable or disable the...
-
Page 16: Resetting The Camera
6 Resetting the camera Push the "RST" button located on the inside of the camera for 10 seconds. Wait for the camera to restart automatically. The cameras default settings will have been reset. -
Page 17: Smartphone And Tablet Application
Outdoor dome IP camera varifocal 2MP 7 Smartphone and Tablet Application 7.1 Apple (iOS) The "URA Camera Viewer" available on Appstore allows you to view your CCTV system locally or remotely via an EDGE, 3G or Wi-Fi connection. The functionality includes: live streaming, taking instant photos and viewing recordings. An installation wizard, tutorials and help pages are available within the application.
