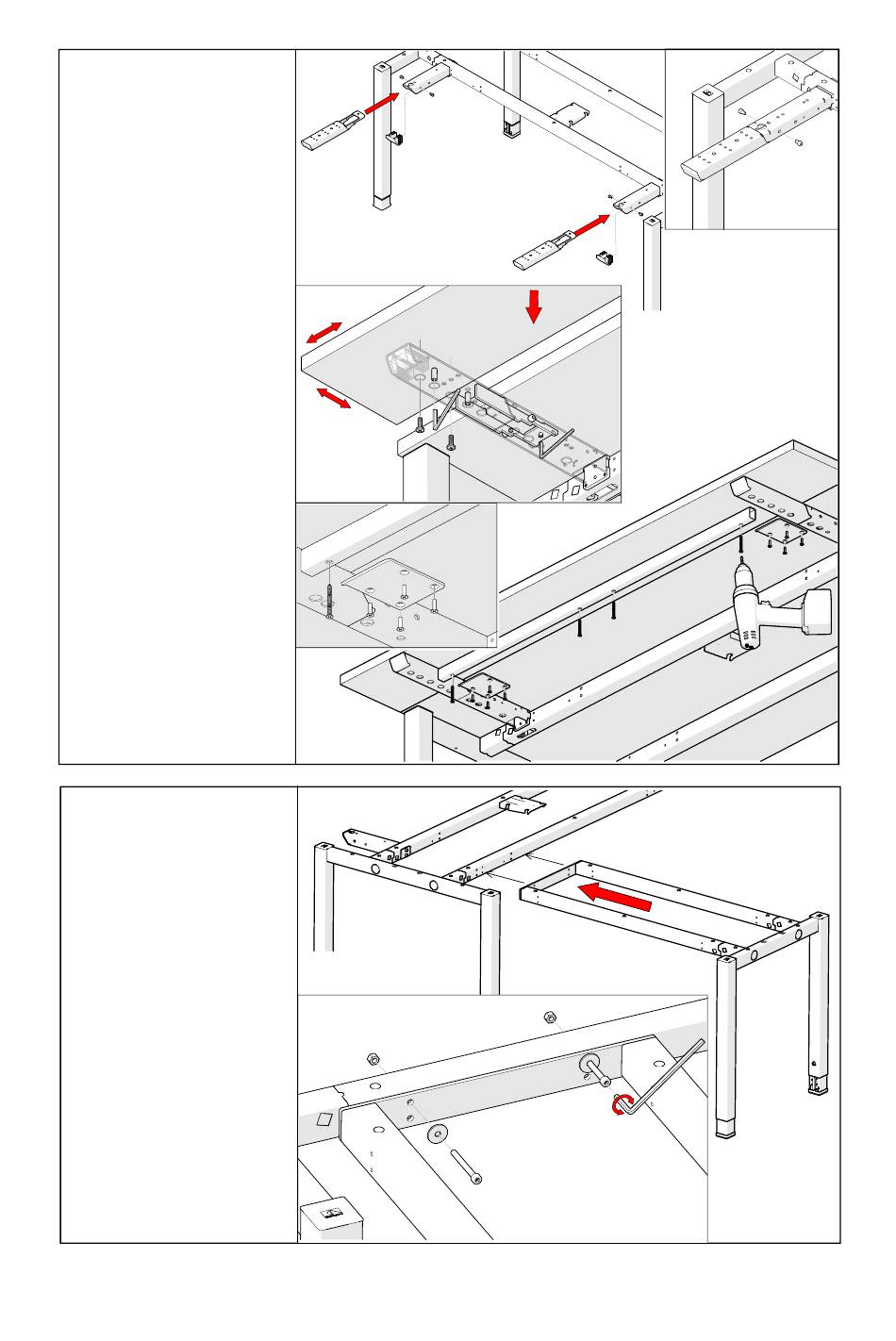

11. Fitting the brief-
case ledge or extensi-
on on visitors side
Remove end caps (a).
Insert the briefcase ledge
bracket (b) into the frame
bracket and fix in place with
two cylinder head screws
M6x10 (SW5) on each side (c)
Position top (d) on the
brackets, fit them together
from underneath, using screws
ø4,5x20 (e). The alignment of
the briefcase ledge to the desk
top can be adjusted with the
grub screws M8x20 (f) (SW4).
Adjust the inclination of the
briefcase ledge with grub
screw M6x10 (g) (SW3).
Fit an additionally reinforcing
tube (h) from underneath to
the top, using wood screws
ø4,5x45 (from type 1600).
Fit support plates (i) to the
table top from beneath with
chipboard screws ø4x15.
Extension on visitors side to
be assembled accordingly (not
shown).
Note: in this case you will re-
quire support legs, see fig.9.
12. Fitting the return
desk
Align the return desk leg
frame (a) with the desk frame.
Connect it through the main
beam of the desk frame using
cylinder head screws (b)
M6x55 (SW5) and washers
with hex nuts (c).
