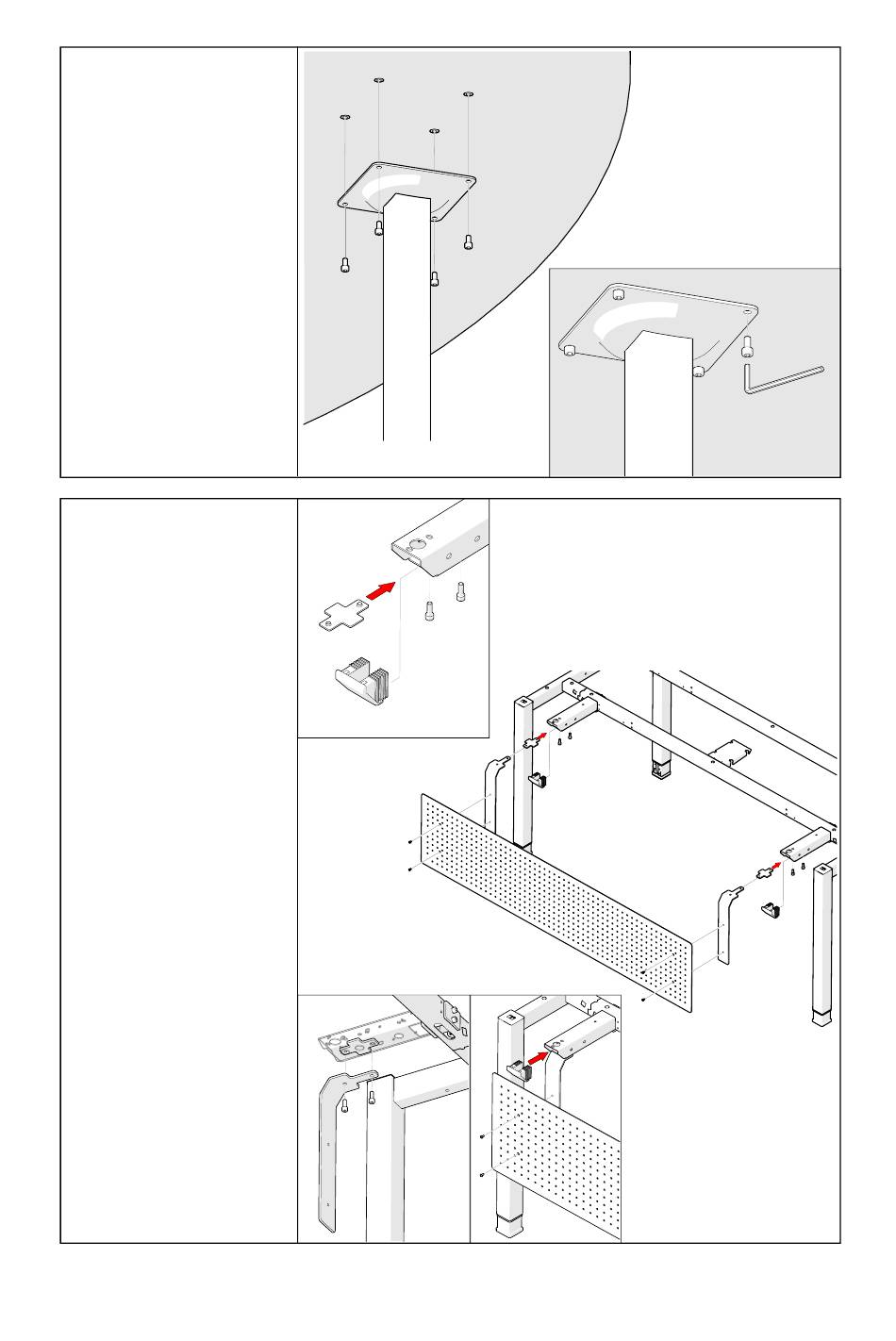

9. Fitting the support
leg to desk top exten-
sion
Fit support leg (a) to the desk
top extension from beneath
with cylinder head screws (b)
M6x12 (SW5).
Height adjustment see fig. 3.
10. Fitting the modes-
ty panel
Remove end caps (a).
Insert the threaded plate (b)
into the bracket.
Mount the rear panel retainer
(c) from beneath using cylin-
der head screws M6x16
(SW5) through the bracket,
connecting it to the threaded
plate on the inside.
Attach the modesty panel
(d) to the rear panel retainer
using pan-head screws M6x8
(SW4).
(a)
(b)
(a)
(c)
23
(d)
(b)
