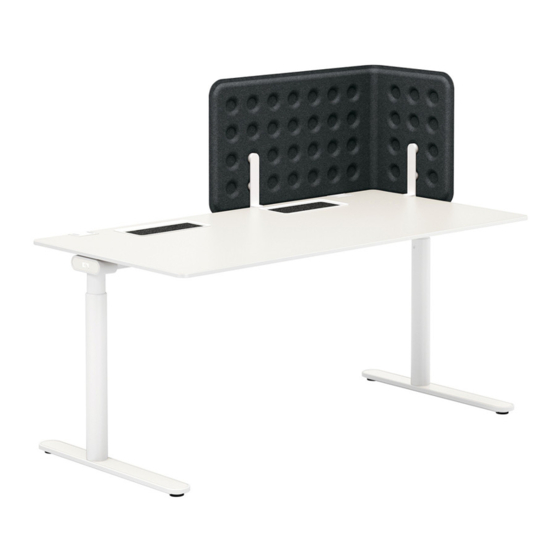

LIFE.S Tischsystem Desk system Montageanleitung Abb. DO IT 4 Montageanleitung Assembly instructions...
Page 2
Inhalt Sicherheitshinweise LIFE.S Tischsystem Montage T-Fuß Montage A-Fuß Montage 4-Fuß Montage der Schiebeplatte Montage der Klappwanne Montage Druckeransatz Montage CPU-Halter Montage Klemmadapter für Tischpaneele Montage Tischpaneel in Tischkonsole Montage Tischpaneel in Tischadapter Montage Fly-by Paneel in Tischkonsole Montage Winkelpaneel mit Klemmadapter Montage Winkelpaneel-Distanzstück...
Page 3
Sicherheitshinweise Sollte den Anweisungen, die mit einem Warnsymbol markiert sind, nicht entsprochen werden, kann dies zu Unfällen mit ernsthaften Personenschäden führen. Bitte lesen Sie die folgenden Sicherheitshinweise sorg- fältig durch. Magnete haben eine starke Anziehungskraft. Bei unvorsichtiger Handhabung können Sie sich die Finger oder Haut quetschen.
Page 4
LIFE.S Tischsystem Montage T-Fuß M8x70 (SW6) Die Verstellung ist feder- unterstützt und lässt das Höhenverstellung Gewicht abfedern. Der Tisch muss sich zur Ver- stellung im stehenden Ge- brauchszustand befinden, ansonsten besteht Verlet- zungsgefahr! Verstellbereich 650 - 850 mm Höhenausgleich max.15 mm...
Page 5
Montage A-Fuß M8x70 (SW6) Achtung: Höhenverstellung Bei Verstellung kann das Tischbein absacken. Grundhöhe fix mit Verstellbereich Höhenausgleich 650 - 850 mm...
Page 6
Montage 4-Fuß optional M6x55 (SW5) M8x70 (SW6) Neigungsverstellung (SW3) Achtung: Bei Verstellung kann Höhenverstellung das Tischbein absacken. Grundhöhe fix mit Verstellbereich Höhenausgleich 650 - 850 mm...
Page 11
Montage Klemmadapter für Tischpaneele Sicherheitshin- weise auf Seite 1 beachten.
Page 12
Montage Tischpaneel in Tischkonsole M6x10 (SW5) innen außen Sicherheitshinweise auf Seite 1 beachten.
Page 13
Montage Tischpaneel in Tischadapter heraustrennen Sicherheitshinweise auf Seite 1 beachten. Montage Fly-by Paneel in Tischkonsole M6x10 (SW5) innen außen Sicherheitshinweise auf Seite 1 beachten.
Page 14
Montage Winkelpaneel mit Klemmadapter Sicherheitshin- weise auf Sei- te 1 beachten. Montage Winkelpaneel-Distanzstück...
Page 15
Montage des Zubehörs Sicherheitshinweise auf Seite 1 beachten. Zubehör...
Page 16
Montage Seitenwange an T-Fuß ø4,5x14 Sicherheitshinweise auf Seite 1 beachten.
Page 17
Montage Seitenwange an 4-Fuß ø4,5x14 Sicherheitshinweise auf Seite 1 beachten.
Page 29
LIFE.S Stool Montage von Gestell und Sitzpolster M8x70 (SW6) M8x20 (SW4) M4x16...
Page 30
Contents Safety instructions LIFE.S Desk system Fitting T-frame Fitting A-frame Fitting 4-leg frame Fitting sliding top Fitting fold-out cable tray Fitting printer tray Fitting CPU holder Fitting desk screen with clamp adapters Fitting desk screen in desk consoles Fitting desk screen in desk adapters...
Page 31
Safety instructions Failure to follow the instructions marked with a warning symbol can lead to accidents with serious personal injury. Please read the following safety instructions care- fully. The magnets have a high magnetic power. By careless handling there is a risk of injuring. Take care during the assembly that no metallic objects find their way to the magnets.
Page 32
LIFE.S Desk system Fitting T-frame M8x70 (SW6) Caution: Adjustment is spring- Height adjustment assisted to cushion the weight. To adjust, the desk must be erect and ready to use, otherwise base tube jump out and caused a risk of injury!
Page 33
Fitting A-frame M8x70 (SW6) Height adjustment Caution! When adjusting the height may the leg slip downwards. Base height with Adjustment range height levelling 650 - 850 mm...
Page 34
Fitting 4-leg frame optional M6x55 (SW5) M8x70 (SW6) Inclination adjustment (SW3) Height adjustment Caution! When adjusting the height may the leg slip downwards. Base height with Adjustment range height levelling 650 - 850 mm...
