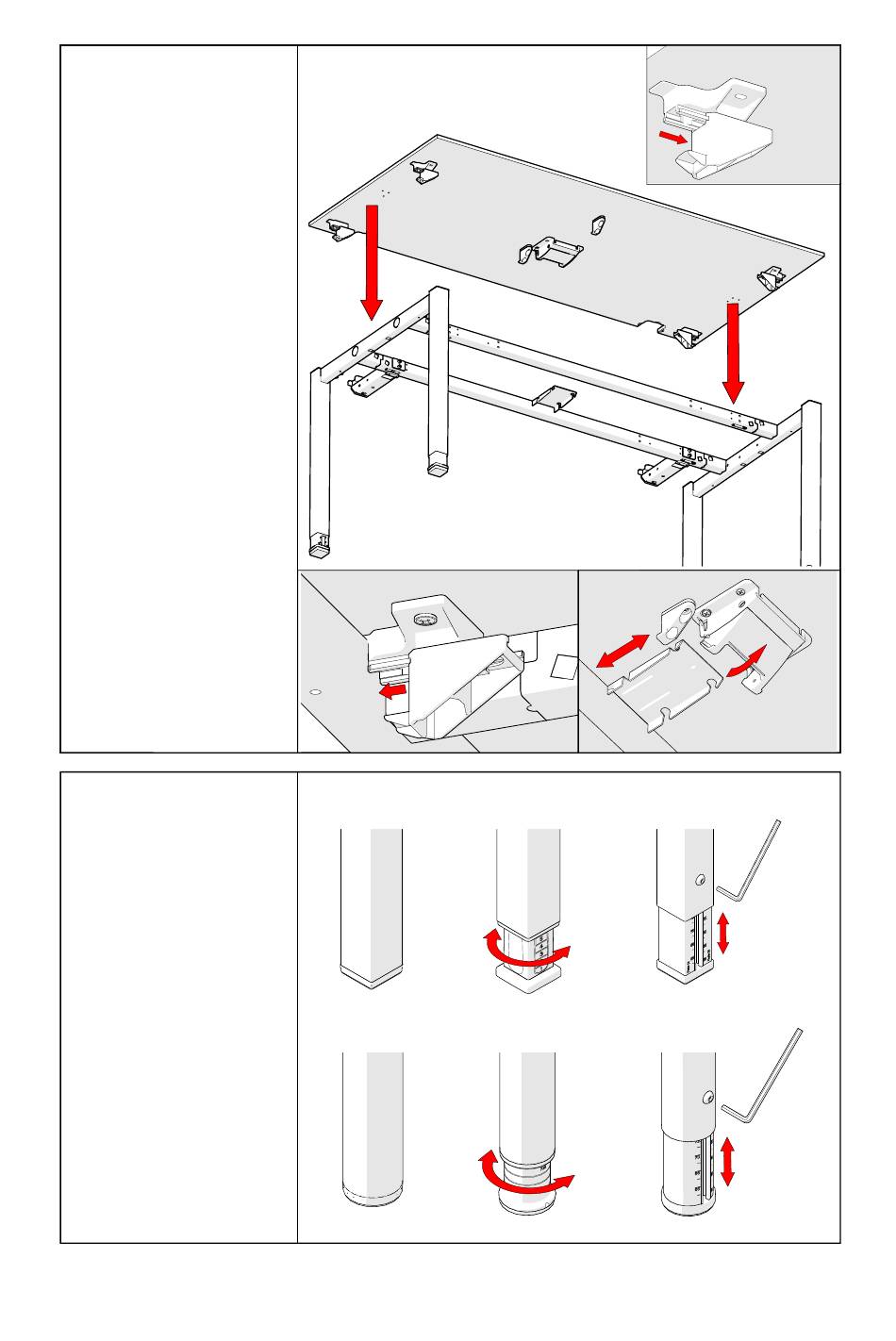

2. Fitting and using
the sliding top
Slide the fittings (a) on the
desk top to an open position.
Position the top (b) on the
leg frame, lock the fittings (c)
onto the cross-beam on the
side sections.
Pull the centrally located
release handle (d) down-
wards to undo the safety
lock on the sliding top.
The handle locks in a closed
position – the top can only
be removed if it is open.

3. Height adjustment

A: Basic height fixed 720 mm
with a 15 mm height adjust-
ment screw.
B: Adjusted height 680-760
mm (round) or 680-820 mm
(square), infinitely-variable
tool-free adjustment
C: Adjusted height 650-850
mm, inner tube adjustment
(SW5).
Caution: adjustment is
spring-assisted to cushion
the weight. To adjust, the
desk must be erected and
ready to use, otherwise
base tube jump out and
caused a risk of injury!
(c)
A
19
(b)
B C
(a)
(d)
