Fitting The Bracket And Side Section - Konig + Neurath Basic 4 Desk Assembly Instructions Manual

Assembly instructions
BASIC 4 desk system
These assembly instructions include all the information needed to assemble
and reconfigure the BASIC 4 range.
The individual steps are numbered as required, and the different screw and
spanner sizes are given.

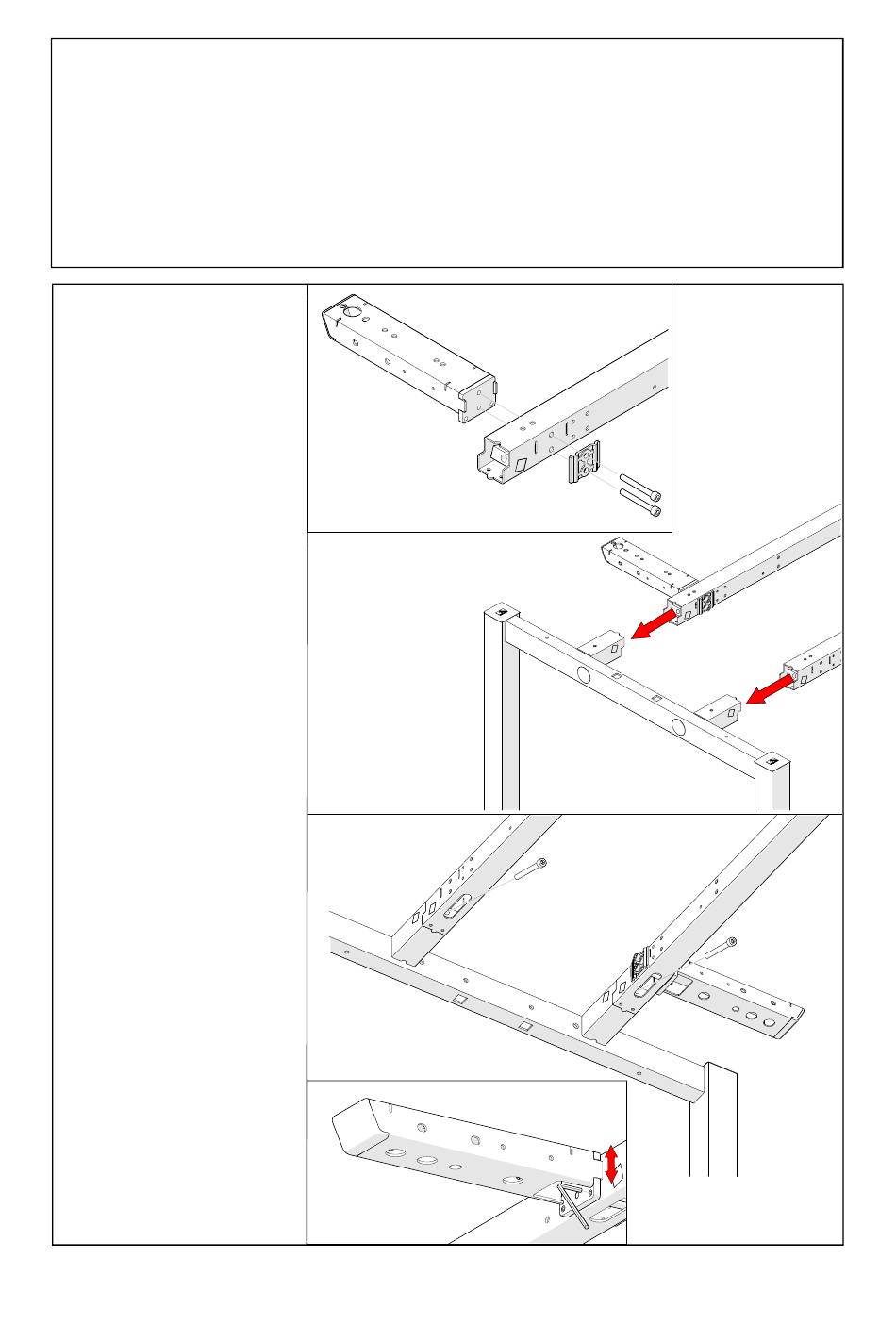

1. Fitting the bracket
and side section
Fit the bracket (a) with pressure
plate (b) to the main beam (c)
using cylinder head screws
M6x55, (SW5).
Align the main beams with the
side section (d) and connect
them together from beneath (e)
using cylinder head screws
M8x70 (SW6).
Adjust the inclination of the
bracket (f) with grub screws
M6x8, (SW3).
(a)
(c)
(e)
(f)
18
(b)
(d)
(e)
