Installation
Loose Parts
Use the chart below to verify that all parts have been shipped.
Procedure
1
2
1
Installing the Console
Computer
Parts needed for this procedure:
1 Mounting bracket
4 Carriage bolt (5/16 x 3/4 inch)
4 Locknut (5/16 inch)
1 Computer console assembly
2 Hand Knob
1 Pivot bracket

Installing the Console Computer

1. Locate the mounting bracket with the curved slot in
loose parts. Install the bracket to the dashboard and
secure it with 2 carriage bolts (5/16 x 3/4 inch) and
2 locknuts (5/16 inch) as shown in Figure 2.
Description
Mounting bracket
Carriage bolt (5/16 x 3/4 inch)
Locknut (5/16 inch)
Computer console assembly
Hand Knob
Pivot bracket
Flowmeter
Gasket
Hose clamp, worm screw
Qty.
1
4
4
Install the console computer.
1
2
1
1
1 Install the flowmeter.
1
11
1. Pivot bracket (2010 and
newer only)
2. Hand knob (2)
3. Rubber washer (2)
4. Console computer
5. Carriage bolts (5/16 x 3/4
inch)
6. Locknut (5/16 inch)
4
Use
G017229

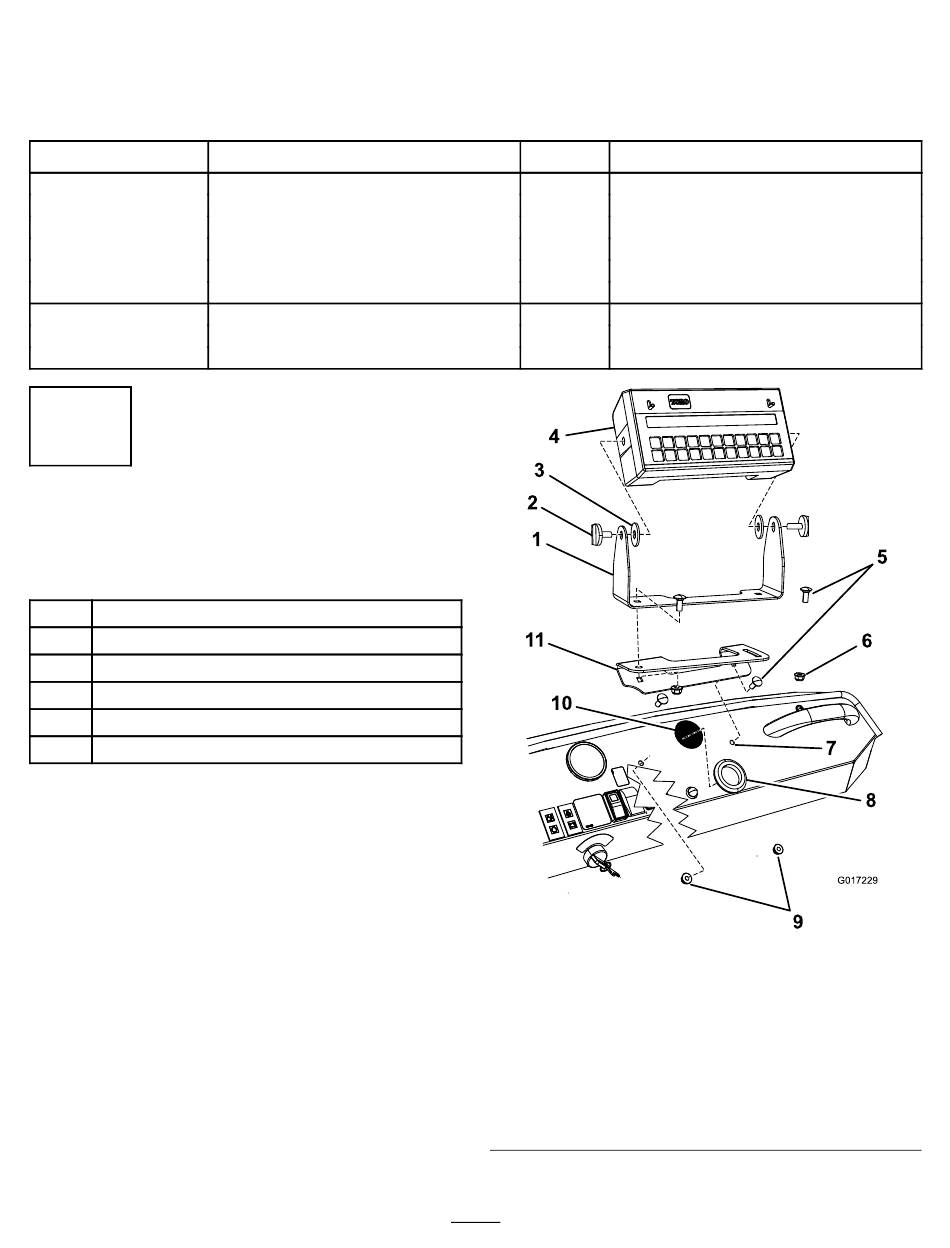

Figure 2
7. Mounting hole in
dashboard, existing
8. Large grommet
9. Locknuts (5/16 inch)
10. Knocked-out hole in dash
11. Mounting bracket
