2. Locate the round, multi-pin console computer
connectors on the main harness secured to the right
frame member under the dashboard.
3. Cut the plastic tie that secures the console computer
wiring to the frame under the dashboard.
4. Remove the 2 protective caps from the cable ends.
5. Route the console computer cables from under the
dashboard through the hole with the large grommet.
6. Plug the cables into their corresponding inputs on
the rear of the console computer (Figure 3), and
secure the cables by rotating the locking rings.
1

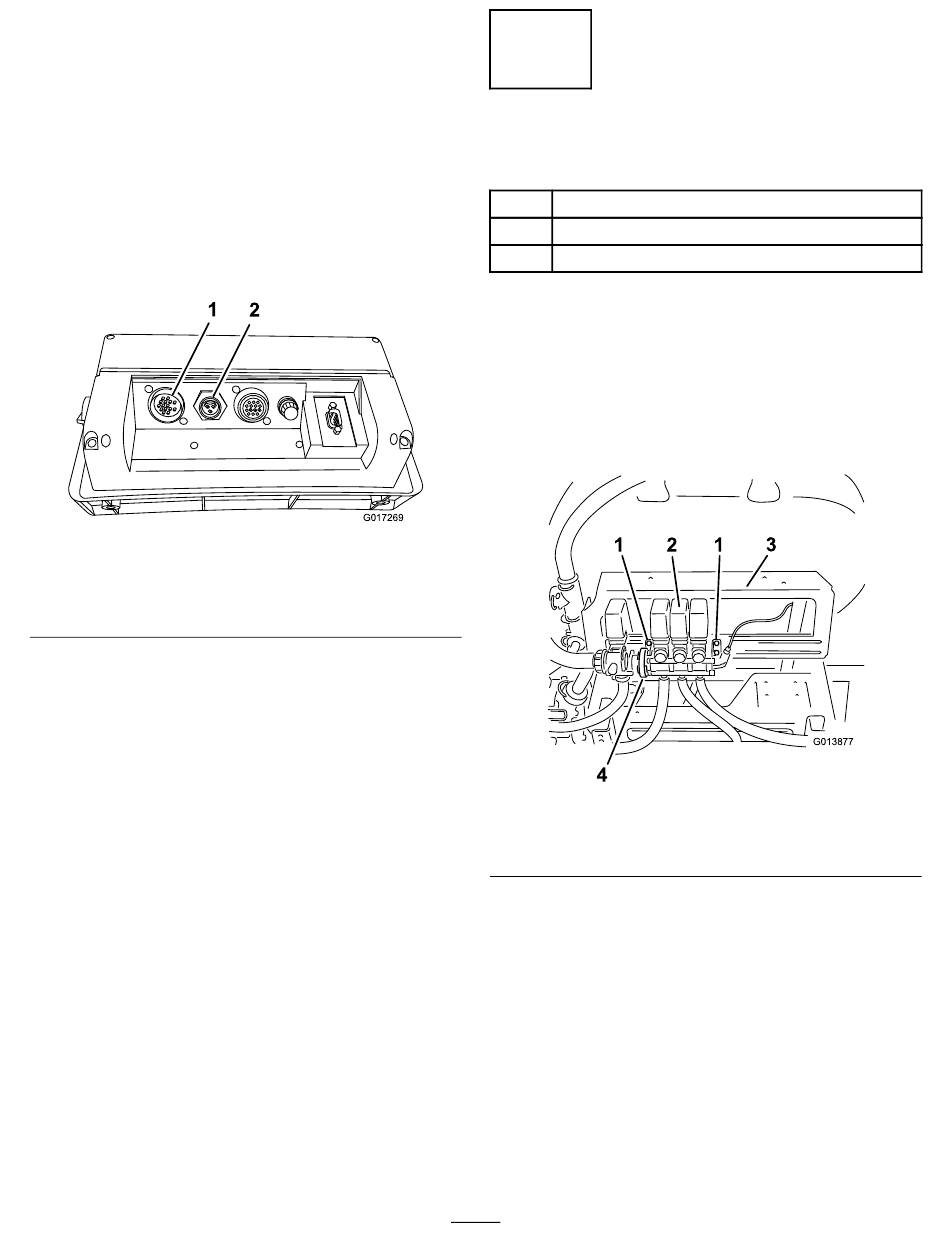

Rear of Console Computer
1. Flowmeter cable
connection
7. Assemble the computer console to the pivot bracket
with 2 hand knobs (Figure 2).
8. Secure the pivot bracket to the mounted bracket with
2 carriage bolts (5/16 x 3/4 inch) and 2 locknuts
(5/16 inch) as shown in Figure 2.
Note: Finger tighten the fasteners at this time.
9. Swing the console assembly on the bottom mounting
bracket until it faces the desired position.
10. Tighten the fasteners that you installed previously.
11. Adjust the pivot angle of the console face to the
desired position, and tighten the hand knobs on
either side console to secure the position.
2
G017269
Figure 3
2. Speed sensor cable
connection
2

Installing the Flowmeter

Parts needed for this procedure:
1 Flowmeter
1 Gasket
1 Hose clamp, worm screw
Procedure
Move to the rear of the machine and locate the boom
valve assembly on the boom valve mount bracket.
1. Loosen, but do not remove, the bolts that secure
the boom valve assembly to the mounting bracket
(Figure 4).
1
4
1. Bolts
2. Boom valve assembly
2. Loosen the existing worm clamp that secures the
agitation valve to the boom valve assembly (Figure 4).
3. Carefully move the boom valve assembly away from
the agitation valve (Figure 5).
5
2 1 3
G013877
Figure 4
3. Boom mount
4. Worm clamp
