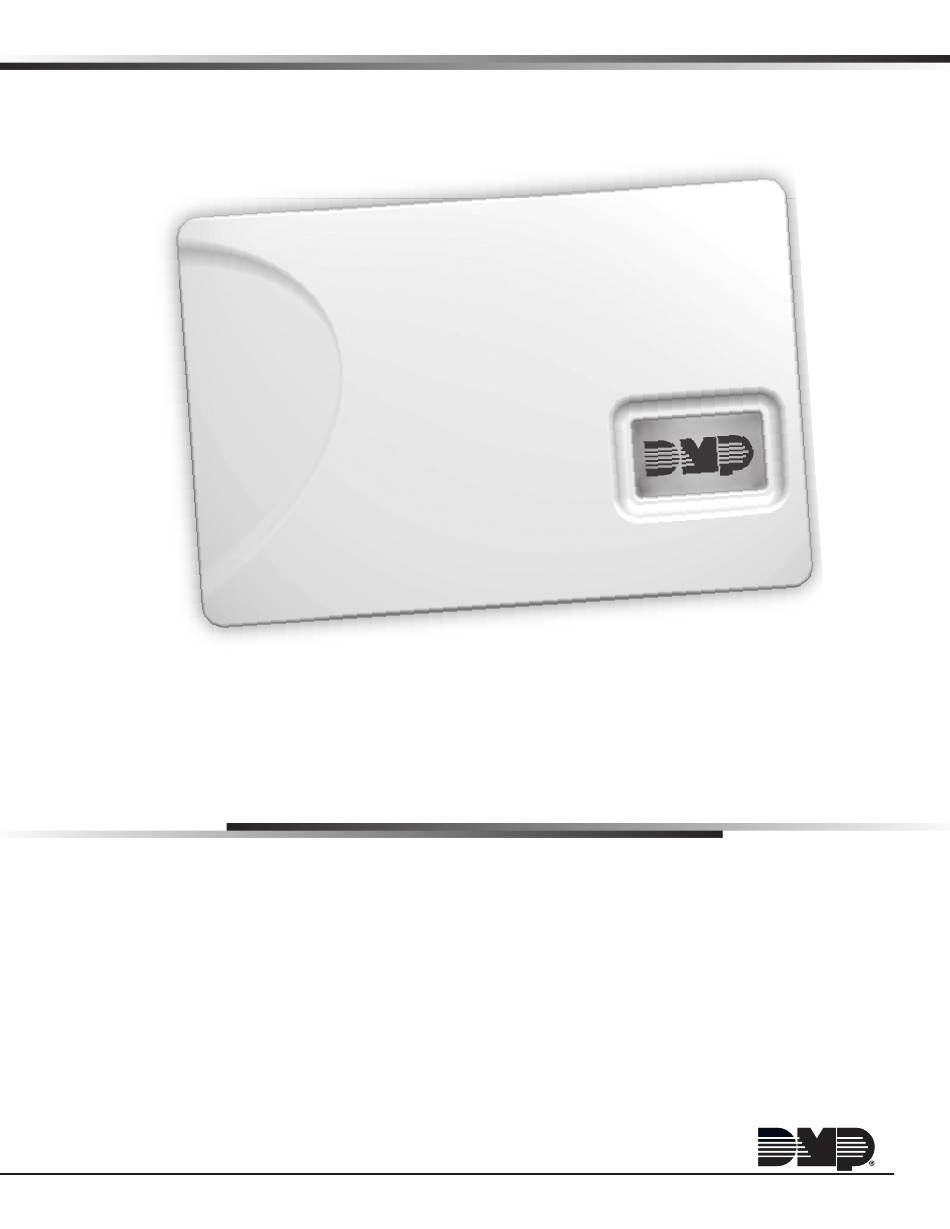

- Page 1 Inst alla tIon GuIde Xtln/Xtln-WIFI Panel...
- Page 2 MODEL XTLN/XTLN-WiFi INSTALLATION GUIDE FCC NOTICE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 3: Table Of Contents
6.3 ..............Battery Supervision LED Operation 7.1 ................Backlit Logo On-Board Network (XTLN only) 8.1 ................Description 8.2 ................Ethernet LEDs On-Board WiFi Network (XTLN-WiFi only) 9.1 ................Description 9.2 ..................WiFi LEDs RESET Button 10.1 ................Description Programming Connection 11.1 ............Programming Connection On-Board 1100 Series Wireless 12.1 .............. - Page 4 Listed Compliance Specifications 17.1 ................Introduction 17.2 ................Use Marking 17.3 ................... NFPA 72 17.4 ............... Types Of Service 17.5 ................. Bypass Reports 17.6 ................ Battery Standby Household Burglar-Alarm System Units ANSI/UL 1023 18.1 ................Bell Cutoff 18.2 ................Entry Delay 18.3 ................Exit Delay 18.4 ............
-
Page 5: Panel Specifications
Failing to follow the caution note can cause damage to the equipment or improper operation of one or more components in the system. Compliance Instructions For applications that must conform to a local authorities installation standard or a National Recognized Testing Laboratory certificated system, please see the Listed Compliance Specifications section near the end of this guide for additional instructions. Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide... -
Page 6: System Components
Fixed temperature and rate-of-rise heat detector 1184 Carbon Monoxide Detector Carbon Monoxide detector. Interface Module 738Z Z-Wave Interface Module* Provides connection for Z-Wave modules. Keypads 9000 Series LCD keypads Allows you to control the panel from various remote locations using 9000 Series Wireless Keypads. Connect up to four 9060, 9063 Wireless Keypads. 9800 Series Wireless Graphic Allows you to control the panel from various remote locations. Connect up to four keypads. Touchscreen keypads 9862 Wireless Keypads. * These devices have not been investigated and shall not be used in listed installations Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide... -
Page 7: Installation
3. Plug the power supply into a 120 Volt AC, 60Hz dedicated outlet not controlled by a switch. TX RF RX MODEL XTLN RESET LOAD Model 372-500 PROG DC Plug-in Power Supply Use 22 AWG for Wire Exits for DC Power Supply connection Power Supply Figure 2: DC Power Supply Connection Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide... -
Page 8: Secondary Power Supply
Figure 4: Standby Battery Replacement 1. Unplug the battery connector (BAT) from the XTLN/XTLN-WiFi panel. 2. If installed, remove the screw from the PCB. 3. Loosen the top PCB snaps. 4. Lean the panel PCB forward and lift out from the bottom PCB snaps. 5. Remove and properly dispose of the used battery. Caution: Risk of fire, explosion, and burns. Do not disassemble, heat above 212°F (100°C), or incinerate. Properly dispose of used batteries. 6. Place the new battery into the XTLN/XTLN-WiFi housing base with the battery wires directed toward the bottom right corner. See Figure 4. 7. Set the XTLN/XTLN-WiFi PCB into the bottom snaps and press into the top snaps to secure in place. 8. Plug the battery into the panel connector (BAT). Battery Supervision The panel tests the battery once every hour when DC power is present. This test occurs 15 minutes past each hour and lasts for five seconds. A load is placed on the battery and if the battery voltage is low, a low battery is detected. If DC power has failed, a low battery is detected any time the battery voltage falls below 3.7V. Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide... -
Page 9: Led Operation
Panel Disarmed, Primary Power Fault, Battery OK Red Steady Panel Armed, Primary Power OK, Battery OK Red/Green Alternate Panel Armed, Primary Power OK, Battery Fault Red Blinking Panel Armed, Primary Power Fault, Battery OK On-Board Network (XTLN only) Description The ETHERNET Connector connects directly to an Ethernet network using a standard CAT-5 patch cable. Ethernet LEDs The two LEDs, located on the left side of the ETHERNET Connector, indicate network operation. The top, Link LED is a blinking green light when messages are being received or transmitted. The bottom, Activity LED flashes yellow to indicate 100 Mbits/second. On-Board WiFi Network (XTLN-WiFi only) Description The XTLN-WiFi connects directly to a WiFi network for encrypted TCP communication using a Wireless-B/G connection. The XTLN-WiFi uses wireless 802.11b/g WiFi technology, which can travel 125 ft. indoors and can reach out to 460 ft. outdoors with a clear line of sight. Note: Range for WiFi communication has not been investigated by UL. WiFi LEDs The two WiFi LEDs, located in the center of the circuit board, indicate network operation. The left WiFi-1 LED is a green light that is solid when the network is connected and blinks on and off when there is no network connectivity. The right WiFi-2 LED is a yellow light and blinks when messages are being received or transmitted. RESET Button 10.1 Description The RESET button is located on the right side of the circuit board and is used to reset the XTLN/XTLN-WiFi microprocessor. To reset the panel prior to reprogramming, press the RESET button without powering down... -
Page 10: On-Board 1100 Series Wireless
Repeat steps 1 - 4 two more times or until both the Green LED and Red LED remain on steady. For 60 seconds the panel listens for wireless keypads that are in the Red LED Installer Options Menu (3577 CMD) and have not been programmed, Green LED or associated into another panel. Wireless keypads are assigned to the first open device position automatically based upon the order in MODEL XTL Figure 5: XTLN/XTLN-WiFi Backlit which they are detected. The keypad logo turns Green to indicate it Logo LED’s has been associated with the panel. Wireless Zones PROG 14.1 Description XTLN/XTLN-WiFi panels provide 28 wireless zones numbered 1 to 28. A default zone name, zone type, and area assignment are described in the XTLN/XTLN-WiFi Programming Guide (LT-1221) and can be changed in Zone Information programming as needed. The defaults are provided as a programming convenience to help reduce installation time. -
Page 11: Flash Load Button
4. Select Panel>Remote Update, then select the correct RU file for the panel. 5. Press and hold the LOAD button, then press and release the RESET button. 6. Release the LOAD button and click <Update> in Remote Link. 7. After the software update is completed, remove the 399 cable and press the RESET button to resume normal panel operation. Model 400 USB Flash Module 1. P ress and hold the LOAD switch. While holding the LOAD switch, press and release the RESET switch 2. Release the LOAD switch. 3. C onnect the USB flash drive to the Model 400 and connect the assembly to the panels PROG header. The LED on the Model 400 will flash and display steady green. 5. P ress and release the load button on the Model 400 to initiate the firmware update. The LED on model 400 will flash slowly. If the LED displays fast flashes it means the firmware update was unsuccessful. 6. T he update will take approximately 4.5 minutes and when complete the LED on the Model 400 will display steady green. 7. P ress and release the RESET switch then remove the USB flash drive and Model 400 assembly. For additional information see Model 400 USB Flash Module Installation Guide (LT-1402). Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide... - Page 12 The maximum exit delay used must not be more than 60 seconds. 18.4 Wireless External Contact When used, the External Contact of 1101, 1102, or 1106 transmitters must be programmed Normally Closed. 18.5 Wireless Supervision Time The Zone Information Supervision Time cannot be set to 0 (zero). 18.6 Wireless Audible Annunciation The Wireless Audible option must be selected as DAY for residential applications. 18.7 Panel location Mount panel inside protected area. 18.8 Test Frequency The Test Frequency option must be programmed to send a report at least once every 30 days. Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide...
- Page 13 20.2 Household System An alarm sounding device must be installed indoors so that it is clearly heard in all sleeping areas. 20.3 Wireless Supervision Time The Zone Information Supervision Time must be 3 minutes for fire devices. See the XTLN/XTLN-WiFi Programming Guide. 20.4 Test Frequency The Test Frequency option must be programmed to send a report at least once every 30 days. 20.5 Wired Modules Modules that connect to the PROG header, such as the 738Z, must not be used since the battery standby time will be reduced below the 24 hour minimum. Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide...
- Page 14 Disable response zones Yes as required 4.3.3 Fire Alarm 13.5 Zone Type Required Option FV Type Zone (unless sensors can Verification self verify) Test all protection 4.6.3 System Test 16.6 Walk Test Allowed devices 4.6.5 Communications 16.6 Walk Test Not Allowed * Programming at installation may be subordinate to other listed requirements for the intended application. ** For listed Installations, combined Entry Delay and Transmit Delay should not exceed 1 minute. Local Bell All non-fire zones such as Night, Day, Exit, Aux1 and Aux 2 must be programmed for local bell enabled with a bell cutoff time set to a minimum of 6 minutes to provide a cancel window of 5 minutes or greater. This does not apply to manually operated zone types such as Panic and Emergency. The requirements are superseded by any requirements for Commercial Burglar, Household Fire Warning, or Household Burglar applications. Minimum Installation Requirements: SIA CP-01-2010 minimum system installation requirements include an XTLN/XTLN-WiFi, an 1135 Wireless Siren, a 9000 Series Wireless keypad, and communication to an SCS-1R receiver. Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide...
- Page 15 Revisions Revisions to This Document This section explains the changes made to this document during this revision. It lists the date and identifies the change(s) made, the related section number and section heading, and a summary of the change. Ver. Section Number and Heading Quick Explanation of Changes 1.02 Entire Document Added references and information for XTLN-WiFi 1.01 Entire Document Initial Release Digital Monitoring Products XTLN/XTLN-WiFi Installation Guide...
- Page 16 Certifications California State Fire Marshal (CSFM) FCC Wireless Receiver Approvals FCC Part 15 ID: CCKPC0117 Industry Canada ID: 5251A-PC0117 FCC WiFi Network Approvals FCC ID: XM5-SM2144SMT Industry Canada ID: 8516A-SM2144SMT ANSI/UL 1023 Household Burglar ANSI/UL 985 Household Fire Warning ANSI/UL 1610 Central Station Burglar 8 0 0 - 6 4 1 - 4 2 8 2 I n t r u s I o n • f I r e • A c c e s s • n e t w o r k s w w w .
