SYS T E M U S E R G U I D E
X T
S E R I E S
C O N T R O L
P A N E L

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT Series and is the answer not in the manual?

Questions and answers

Related Manuals for DMP Electronics XT Series

Summary of Contents for DMP Electronics XT Series

  • Page 1 SYS T E M U S E R G U I D E S E R I E S C O N T R O L P A N E L...
  • Page 3 HOW TO HANDLE AN ALARM Enter your user code or present your credential to the keypad if it has a built-in proximity reader. You will see: IS THIS A FALSE ALARM? YES NO or CANCEL VERIFY Real Alarm Press NO or VERIFY to notify to the emergency monitoring station. Your system will remain armed.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Get to Know Your System ........3 User Menu .............18 Description of Each Option ......... 18 Use Your Keypad ..........5 User Check-In ..............19 LCD Keypad .................5 Zone Activity Check ............19 Graphic Touchscreen Keypad ........6 Sensor Reset ..............
  • Page 6 XT30 and XT50 User Guide Digital Monitoring Products, Inc.

  • Page 7: Get To Know Your System

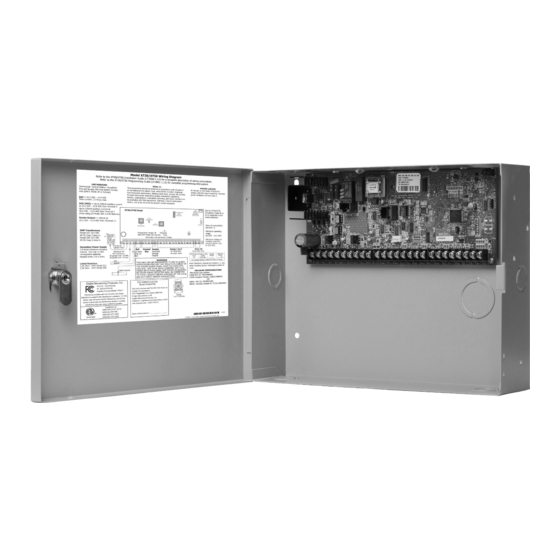

    GET TO KNOW YOUR SYSTEM Your system may not include all of the equipment and functions found in this guide. Control Panel J19 Celllular Wireless Antenna Antenna J24 Celllular connection connection header for (XT50 only) 263G connection TX RX Wireless LEDs J7 RJ The control panel acts as your system’s brain.
  • Page 8 Z-Wave Z-Wave devices allow you to control the lights, small appliances, garage doors, thermostats, and locks from the keypad, Virtual Keypad App, and VirtualKeypad. com™. SecureCom Video SecureCom Video allows you to add wired or wireless cameras inside or outside the building.

  • Page 9: Use Your Keypad

    USE YOUR KEYPAD Your system may have one or more LCD keypads that allow you to operate the system. LCD Keypad Proximity Card Reader Power The keypad may have a built-in proximity card reader Armed that allows you to arm or disarm your system when you present a credential.

  • Page 10: Graphic Touchscreen Keypad

    Graphic Touchscreen Keypad Options System Status Icon On the LCD keypad, press and hold the CMD and back arrow keys at the same time to access the Options Proximity Card Reader Menu. On the Graphic Touchscreen Keypad, press and Power/Armed LEDs Options in the carousel menu.
  • Page 11 CAROUSEL MENU OPTIONS FOR GRAPHIC TOUCHSCREEN KEYPADS Panic Press Police, Emergency, or Fire to send a panic report to the emergency monitoring station. Chime Press Chime to turn the chime feature on and off. If chime is on, the keypad will sound an alert and display a notification when external doors and windows (with sensors installed) are opened.
  • Page 12 System Status Icons System status icons for the Graphic Touchscreen keypad are located at the top of your home screen. The following icons indicate the status of your system: System Ready to Arm The check mark indicates that your system is ready to arm. If you don’t see the check mark, a door or window may be open.
  • Page 13 Weather Your system has been programmed to provide local weather information based on your zip code. Current weather conditions and forecasted HI and LOW temperatures are available on the home screen. Security Provider Logo Press the logo at the top of the keypad to bring up your security provider’s contact information. Power/Armed LED The LED at the top-center of the keypad indicates the keypad’s power status and your system’s arming status.
  • Page 14 Proximity Card Reader Your keypad provides a built-in proximity card reader located behind the power/armed LED. Present your proximity card or keyfob here to disarm your system. Interactive Shield The interactive shield allows arming and disarming from the home screen. Depending on your system type, you will see either the All/Perimeter or Home/Sleep/Away options when you press the shield to arm your system.

  • Page 15: Using The Keypad

    Using the Keypad Command (CMD) Use CMD to move forward through each section of the user menu. You can also press CMD to save information you have just entered. Back Arrow Use the back arrow to back up one step while in the user menu. You can also press the back arrow once to erase the last character you entered.
  • Page 16 Number Pad Choose a letter or symbol from the table. Identify the correlating number key and enter DISARM it in the keypad. Identify the select area for that number and press that select area on the keypad. When your letter or symbol displays on the keypad, return to Step 1 or press CMD if you are finished.

  • Page 17: Know Your System Type

    KNOW YOUR SYSTEM TYPE Your system operates in one of the following ways: Area In an Area (A) system, your burglary protection is divided into up to six areas. Each area can have a custom name, be turned on or off, and limit access to only those users with proper authority. All/Perimeter In an All/Perimeter (All Perim) system, the building is divided into 2 main areas: Arms both the perimeter and interior.

  • Page 18: Arm Your System

    ARM YOUR SYSTEM Area Press and release the shield on a Graphic Touchscreen Keypad to open the arming options screen or press CMD on an LCD Keypad until ARM DISARM displays. Select ARM. The keypad displays ALL? NO YES. To arm all areas, select YES. To arm selected areas, select NO. The keypad displays each area you have access to.

  • Page 19: More Arming Options

    More Arming Options Instantly Arm Your System Press and release the shield on a Graphic Touchscreen Keypad to open the arming options screen or press CMD on an LCD keypad until ARM DISARM displays. Select INSTANT. This overrides the entry and exit delay, instantly arming your system. Bypass Zones If a problem exists on any zone, the zone name and problem display, followed by OK BYPASS STOP.

  • Page 20: Disarm Your System

    DISARM YOUR SYSTEM How to Handle an Alarm Enter your user code or present your credential to the keypad if it has a built-in proximity reader. You will see: IS THIS A FALSE ALARM? YES NO or CANCEL VERIFY Real Alarm Press NO or VERIFY to notify the emergency monitoring station.

  • Page 21: Using Keyfobs

    USING KEYFOBS Press the key fob button programmed for Arming or Toggle (Arm/Disarm) button. A Red LED two-second acknowledgement indicates All System On. A Green/Red two-second acknowledgement indicates System On with some areas armed. Disarm Press the key fob button programmed for Disarming or Toggle (Arm/Disarm) button. A Green LED two-second acknowledgement indicates All System Off.

  • Page 22: User Menu

    USER MENU Description of Each Option USER CHECKIN WIFI SETUP Check-in with the system to indicate arrival on Add, remove, or test Wi-Fi service when using the premises. Optional Wi-Fi Module. ZONE ACTIVITY CHECK BYPASS ZONES Monitor a zone for non-activity. Bypass a zone or reset an already bypassed zone.

  • Page 23: User Check-In

    User Check-In After disarming the system, press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. At USER CHECKIN, press any select key or area. The keypad displays USER CHECKIN: 22 (22 = user number).

  • Page 24: Outputs On/Off

    Outputs On/Off Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to OUTPUTS ON/OFF?. At this display, press any Select Key or Area. The keypad displays OUTPUT: - ON OFF. Press any select key or area.
  • Page 25 Add Devices to Favorites At ZWAVE SETUP?, press any Select Key or Area. The keypad displays ADD LIST REMOVE. Press CMD again to display FAV XFER OPT. Select FAV. When ADD DEL CHG displays, select ADD. When FAVORITE NUMBER is displayed, enter a Favorite number between 1 and 20 and press CMD. The Favorite number displays.
  • Page 26 Edit Devices in Favorites At ZWAVE SETUP?, press any Select Key or Area. The keypad displays ADD LIST REMOVE. Press CMD again to display FAV XFER OPT. Select FAV. At ADD DEL CHG, select CHG. At FAVORITE NUMBER, enter a Favorite number between 1 and 20 and press CMD. The Favorite number and name displays.

  • Page 27: Z-Wave Setup

    Z-Wave Setup Add Z-Wave Devices Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to ZWAVE SETUP?. Press any Select Key or Area. The keypad displays ADD LIST REMOVE. Select ADD. Press the button on the Z-Wave device when PRESS BUTTON ON DEVICE TO ADD displays on the keypad.
  • Page 28 Remove Z-Wave Devices At ZWAVE SETUP?, press any Select Key or Area. The keypad displays ADD LIST REMOVE. Select REMOVE. Press the button on the Z-Wave device when PRESS BUTTON ON DEVICE TO REMOVE displays on the keypad. Transfer Controller This option allows the transfer of all existing Z-Wave devices that are currently programmed in another manufacturer’s Z-Wave portable controller to your system.

  • Page 29: Wi-Fi Setup

    Wi-Fi Setup Use WPS to Connect Your System Press the WPS button on the Wi-Fi network router to start the pairing operation. Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to WIFI SETUP?. Press any Select Key or Area.

  • Page 30: Bypass Zones

    Bypass Zones Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to BYPASS ZONES?. Press any Select Key or Area. The keypad displays ZONE - RST BYPS. •...

  • Page 31: System Test

    System Test Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to SYSTEM TEST?. Press any Select Key or Area. The system test begins automatically and the keypad displays: •...

  • Page 32: User Codes

    User Codes There are three characteristics associated with each user code that define its capabilities within the system. CHARACTERISTIC EXAMPLE User Number User Code 3848 Authority Level Master User Number Each user is numbered from 1 to 30 in an XT30 or 1 to 99 in an XT50 panel. This number identifies them to the system and can be transmitted to the central station when they arm or disarm the system.
  • Page 33 SCHEDULED LIMITED STANDARD MASTER USER MENU OPTION (XT50 ONLY) (XT50 ONLY) (XT30/XT50) (XT30/XT50) ✔ ✔ ✔ ✔ Door Access ✔ ✔ ✔ ✔ Arm and Disarm ✔ ✔ ✔ ✔ Alarm Silence ✔ ✔ ✔ ✔ User Checkin ✔ ✔ ✔...
  • Page 34 A 16-character name may be entered to identify the user. Press any top row key to clear the current text “user name”. You may then enter the new name. After entering the name press CMD. For XT30 Panels: The display changes to MASTER? NO YES. Select YES to make this a Master user level with the authority to access all User Menu functions.
  • Page 35 Changing Your Own User Code At USER CODES?, press any Select Key or Area. The display changes to USER CODE? CODE NO: ******. Press any Select Key or Area. The user code is erased and display changes to CODE NO. Type your new user code. Press CMD. Display will show USER XXXX CHNGD to confirm the change. Changing User Codes At USER CODES?, press any Select Key or Area.

  • Page 36: Schedules

    Schedules Permanent Schedules Permanent schedules are used for automatic arming and disarming and always occur at the same time until you change or delete them. Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to SCHEDULES? displays.
  • Page 37 Output Schedules Add an Output Schedule At SCHEDULES?, press any Select Key or Area. The keypad displays PRM EXT OUT FAV. Select OUT. At the OUTPUT NO display, enter the output number you want to program. Press the CMD key. The keypad displays SUN MON TUE WED. Press the CMD key to display THU FRI SAT. Select the day you want to program.
  • Page 38 Favorite Schedules Add a Favorite Schedule At SCHEDULES?, press any Select Key or Area. At PRM EXT OUT FAV, select FAV. At the FAVORITE display, enter the Favorite number (1-20) you want to schedule. Press the CMD key. The keypad displays SUN MON TUE WED. Press the CMD key to display THU FRI SAT. Select the day you want to program.

  • Page 39: Date And Time

    Date and Time Press the CMD key until MENU? NO YES displays. Select YES. The keypad displays ENTER CODE. Enter your user code. Press CMD to scroll to TIME? and press any Select Key or Area. The keypad displays the current day and time. Press the CMD key to display the current date. Press the CMD key again to make any changes.

  • Page 40: Common Keypad Displays

    COMMON KEYPAD DISPLAYS Listed below are several keypad messages you may see on the display. Follow the instructions in the Possible Solutions column to correct the problem. In many cases, you need to call a service person to correct the problem. Displays not discussed here indicate your service representative should be called.
  • Page 41 Information furnished is believed to be accurate and reliable. This information is subject to change without notice. Digital Monitoring Products, Inc. XT30 and XT50 User Guide...
  • Page 42 XT30 and XT50 User Guide Digital Monitoring Products, Inc.
  • Page 43 Digital Monitoring Products, Inc. XT30 and XT50 User Guide...
  • Page 44 I N T R U S I O N • F I R E • A C C E S S • N E T W O R K S DESIGNED, ENGINEERED, AND MANUFACTURED IN SPRINGFIELD, MISSOURI USING U.S. AND GLOBAL COMPONENTS. DMP.COM | LT-0982 1.06| 20283...
