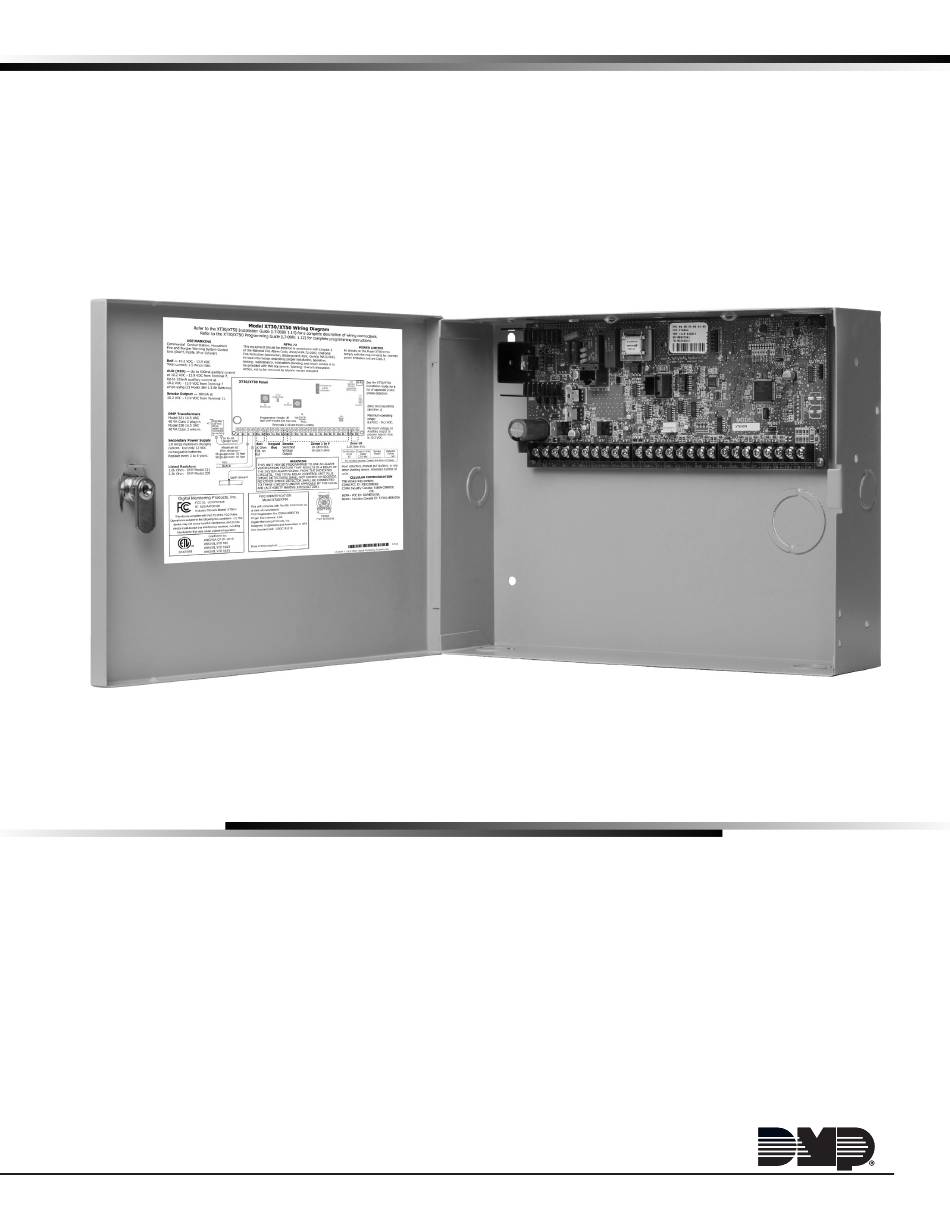

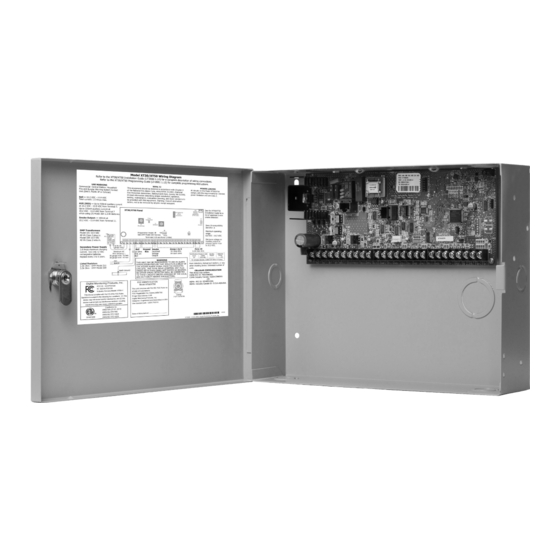

- Page 1 PROGRAMMING GUIDE XT SERIES™ PANELS...
- Page 2 © 2018 Digital Monitoring Products, Inc. Information furnished by DMP is believed to be accurate and reliable. This information is subject to change without notice. Digital Monitoring Products, Inc. XT Series Programming Guide...
-
Page 3: Table Of Contents
Test Report ......................10 3.30 First Telephone Number ..................10 3.31 Second Telephone Number .................10 3.32 First IP Address ....................10 3.33 First IP Port .......................10 3.34 Second IP Address .....................10 3.35 Second IP Port ....................10 Digital Monitoring Products, Inc. XT Series Programming Guide... - Page 4 Disarmed Rings ....................16 Alarm Receiver Authorization ................16 Service Receiver Authorization ................16 Remote Disarm ....................17 App Key ......................17 System Reports ................... 17 System Reports ....................17 Opening/Closing Reports ..................17 Abort Reports ....................17 Zone Restoral Reports ..................17 Digital Monitoring Products, Inc. XT Series Programming Guide...
- Page 5 Panic Alarm Output ....................24 11.7 Ambush Output ....................24 11.8 Entry Output .....................24 11.9 Begin Exit Output ....................25 11.10 End Exit Output ....................25 11.11 Ready Output ....................25 11.12 Armed Output ....................25 11.13 Disarmed Output ....................25 Digital Monitoring Products, Inc. XT Series Programming Guide...
- Page 6 14.10.11 Output Action ....................33 14.11 Alarm Action ......................34 14.12 Disarmed Open ....................34 14.12.1 Message To Transmit ..................34 14.12.2 Output Number ....................35 14.12.3 Output Action ....................35 14.13 Swinger Bypass ....................35 14.14 Prewarn Address ....................35 Digital Monitoring Products, Inc. XT Series Programming Guide...
- Page 7 Test End Warning ....................41 Failed Zones Display ...................41 17.6 Keypad Speaker Operation..................42 17.7 Cross Zoning .....................42 17.8 Zone Type Descriptions ..................42 17.9 Common Keypad Messages ................43 17.10 Z-Wave Certification Information .................43 Revisions to this Document ..............44 Digital Monitoring Products, Inc. XT Series Programming Guide...
-
Page 8: Introduction
Before programming the panel, make sure the panel is properly grounded and AC and battery power is applied to the appropriate panel terminals. All wiring connections and grounding instructions are detailed in the XT Series Installation Guide (LT-0980). Program from any Keypad Address or Wireless Keypad You can program the panel from any 32-character wireless keypad or hardwired keypad connected to the panel’s keypad data bus. -
Page 9: Programmer Menu
Lost Lockout Code requires factory reset: If you lose or forget the lockout code, the panel must be sent back to the factory to be reset. There is no field option for gaining access to the panel without a valid lockout code. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 10: Reset Timeout
Card Slot Select Keys Carousel Local Weather Backlit Logo Menu Conditions and Proximity Antenna COMMAND Key Back Arrow Key Shortcut and Digit keys Figure 3: Icon Keypad Figure 4: Graphic Touchscreen Keypad Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 11: Special Keys
For Graphic Touchscreen Keypads, when instructed to press the first select key, touch select area 1; the second select key touch select area 2; third select key touch select area 3; and the fourth select key touch select area 4. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 12: Entering Characters Using The Number Pad
The keypad displays the new THEN row Select key/area. selection. Press CMD to advance. Thinline, BELL TST BELL TST Aqualite, Wireless Keypads Graphic BELL TST BELL TST Keypads Figure 7: Changing the Current Programming Option Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 13: Initialization
YES sets the panel’s programming back to factory default selections and clears all Z-Wave, Favorites, Device Setup, System Options, and Remote Options programming from the panel. Selecting YES does not clear the panel’s event memory, zone, user code information, or schedules. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 14: Communication
Enter from 1 to 60 days. Enter zero to disable CELL TST DAYS: the test report. Default is 1 (one) day. These options only display if a test time is entered and that particular communication method is being used. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 15: Check-In Minutes
Sensor Reset reports by user to be sent to this receiver. Default is YES. 3.18 Test Report NO YES TEST RPT Enter YES to enable the Recall Test report to be sent to this receiver. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 16: First Telephone Number
3.26 Alarm Reports ALARM NO YES YES enables Abort, Alarm, Alarm Restoral, Alarm Bell Silenced, Ambush, Exit Error, and System Recently Armed reports to be sent to this receiver. Default is NO. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 17: Supervisory/Trouble Reports
Enter the second IP port number to be used in conjunction with the Second IP Address. The IP port identifies the port used to communicate messages to and from the panel. The default IP Port setting is 2001. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 18: Network Options
SSID entered to ensure communication. The keypad displays SSID FOUND or SSID NOT SSID FOUND FOUND. When the SSID is found, the security type is also detected. Depending on the security type, the SSID might take several seconds to process. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 19: Test
Programming Port PROGRAMMING PORT 2001 Enter the programming port number. The programming port identifies the port used to communicate messages to and from the panel. The default Programming Port setting is 2001. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 20: Messaging Setup
Enter the third destination Email address or cell phone number. Destination 3 User Number DESTINATION 3 If Destination 3 is a cellular number, enter the user’s User Number for USER NUMBER: arming/disarming authorization. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 21: Email Communication Type
SMTP Username to provide Email authentication to the server. 5.18 From Email Address FROM EMAIL Enter the Email address on file with the Email service. This will show up in the Email messages as the sender’s address. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 22: Device Setup
Zero (0) indicates an unsupervised wireless keypad. Note: When the panel is reset, panel is powered down and powered up, or programming is complete, the supervision timer restarts for all wireless keypads. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 23: Remote Options
With YES selected, the panel requests the service receiver key the first time it is contacted by the service receiver. The panel retains this service receiver key in memory and accepts remote commands from the service receiver. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 24: Remote Disarm
YES allows the panel to send all zone bypass, reset, and force arm reports to the receiver. The bypass report includes the zone number, zone name, and the user number of the individual bypassing the zone. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 25: Code Change Reports
2 if it is being used. Default is 30 seconds for Entry Delay 1. Note: Specific Exit Error operation is based on the Entry Delay used (1 or 2) with an EX type zone. See Exit Delay. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 26: Exit Delay
YES allows the use of standard DTMF telephones to arm and disarm and check the armed status of the XT30/XT50 panel. Refer to the XT30 or XT50 User Guide for complete information. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 27: Zone Activity Hours
Eastern Time (US, Canada) Bogota, Lima, Arequipa Central Time (US, Canada), Mexico City, Saskatchewan Mountain Time (US, Canada), Edmonton Pacific Time (US, Canada), Tijuana Alaska Hawaii Midway Island, Samoa Fiji, Marshall Island, Wellington, Auckland, Kwajalein, Kamchatka New Cadelonia Guam, Sydney Tokyo, Seoul Hong Kong, Singapore Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 28: Time Display
Occupied Premises OCCUPIED PREMISE NO YES Select YES to allow the panel to automatically disarm the interior area(s) when arming all areas and a perimeter zone is not tripped during the exit delay. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 29: Use False Alarm Question
If using a 7800 Series keypad, the current weather conditions and the next day’s forecast display as graphics on the Main Screen. All other DMP keypads display the weather information in the Status List. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 30: Bell Options
Defines Bell Action for Auxiliary 1 Type Zones. The default is set at N. 10.5.7 Auxiliary 2 AUXLRY 2 TYPE: Defines Bell Action for Auxiliary 2 Type Zones. The default is set at N. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 31: Output Options
4-wire output harness on the XT30/XT50 board. Wireless outputs are available when using the built-in 1100 Series Receiver of the XT50 or an 1100D Series Wireless Receiver. Refer to the XT Series Installation Guide (LT-0980) for complete information. -
Page 32: Burglary Output
Enter the desired temperature setting for all Z-Wave thermostats when the system TEMPERATURE: is armed ALL or AWAY. When the system is disarmed the thermostats return to their previous settings. The range is 55-95 degrees. Enter 0 (zero) to disable. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 33: Output Information
This option displays when the wireless device is an 1135 wireless siren. Select YES BELL NO YES to have the 1135 wireless siren follow the panel’s bell output cadence for the zone type and bell cutoff time. Default is YES. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 34: Area Information
If an Opening report is sent to the receiver, the user number is indicated as SCH. Note: For ANSI/SIA CP-01 installations, Automatic Disarming cannot be used. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 35: Zone Information
Blank, Night, Day, or Exit. Press COMMAND to display additional zone types. Fire, Panic, Emergency, or Supervisory. Press COMMAND to display additional zone types. Auxiliary 1, Auxiliary 2, Fire Verify, or Arming. Press the Back Arrow key to display the previous zone types. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 36: Area Assignment
When opened from a shorted (armed) state, an alarm is reported and the zone is disabled until you disarm the area(s) from either a keypad or Remote Link™ computer. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 37: Next Zone
By allowing both of the Model 1101 or 1103 transmitter contacts (INT and EXT) to be used at the same time, two zones may be programmed from one transmitter. When using both contacts, you must use consecutive zone numbers. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 38: Supervision Time
Selecting HIGH sets the PIR to maximum sensitivity. Default is LOW. NEXT ZN 14.9.8 Next Zone Select YES to return to the ZONE NO: - option to program a new zone. Select NO to display the Alarm Action option. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 39: 1100 Series Key Fobs
Press the select key or area under the key fob button to program. The following list identifies the default button assignments: TOP Arming with areas 1, 2, and 3 assigned BTM Disarming with areas 1, 2, and 3 assigned Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 40: Button Action
STD (Steady) - The output is turned on and remains on. PLS (Pulse) - The output alternates one second on and one second off. MOM (Momentary) - The output is turned on only once for one second. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 41: Alarm Action
– (dash) - When you select – , reports are NOT sent to the receiver. The bell output does not activate and there is no display in the panel’s alarmed zones status list. Only the programmed Output Number activates. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 42: Output Number
ENTRY DELAY: Option is only shown for an Exit zone. Select the entry delay timer for this zone. Entry delay timers 1 and 2 are programmed in Entry Delay in System Options. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 43: Cross Zone
Enter the zone number you want to program next. Return to the beginning of this section and follow the descriptions of each programming option. If all zones are programmed, press the ARROW key at the ZONE NO: – display to continue. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 44: Stop
Lost lockout codes require the panel to be sent back into DMP for repair. You may cancel a Lockout Code by entering 00000 at the Set Lockout Code command option. Lockout Code restriction: Do not set a Lockout Code higher than 65535. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 45: Appendix
17.3 Diagnostics Function The XT Series panels contains a Diagnostics function that allows you to test the integrity of the cellular communication, cellular signal, and Email communication. The Diagnostics function also displays the panel settings. To use Diagnostics, reset the panel, enter the Diagnostics code 2313 (DIAG), and press COMMAND. - Page 46 HALLWAY LIGHT displays to the right of the device number. The test stops after 99 attempts. 99/99 SUCCESSFUL Press COMMAND to view the final number of successful communications. Digital Monitoring Products, Inc. XT Series Programming Guide...
-
Page 47: Using The 984 Command Function
MODEM, TOWER, SIM, APN, CELL COMM. See the Diagnostic Functions section for a description of the Cellular Status results. Note: If CELL is not a communication option on the panel, NO CELL displays on the keypad and you are returned to the Status List Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 48: Using The Walk Test
Press the COMMAND key to display the next failed zone. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 49: Keypad Speaker Operation
Auxiliary 2 zones do not appear in the Status List. AR (Arming zone) - This zone allows you to connect a keyswitch to a zone and use it to arm and disarm the system. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 50: Common Keypad Messages
Exclusion: the process of removing a device from the Z-Wave network. The new device is ‘excluded’ from the Z-Wave network. • Replication: the process of copying network information to another device (typically a Z-Wave controller) in the Z-Wave network. Digital Monitoring Products, Inc. XT Series Programming Guide... -
Page 51: Revisions To This Document
1.10 Keypad Displays Current Programming Added 7800 reference 3.4 Communication Type Added SCS-VR reference 10.21 Weather Zip Code Added 7800 reference 18.3 Diagnostics Function Added Roaming Indicator reference Added Z-Wave Diagnostics function Digital Monitoring Products, Inc. XT Series Programming Guide... - Page 52 Certifications California State Marshall (CSFM) Intertek (ETL) Listed • ANSI/SIA CP-01 False Alarm Reduction • ANSI/UL 1023 Household Burglar • ANSI/UL 985 Household Fire Warning • ANSI/UL 1610 Central Station Burglar • ANSI/UL 1635 Digital Burglar FCC Part 68 Registration ID: CCKAL00BXT50 8 0 0 - 6 4 1 - 4 2 8 2 I N T R U S I O N •...
