Studio-S
®

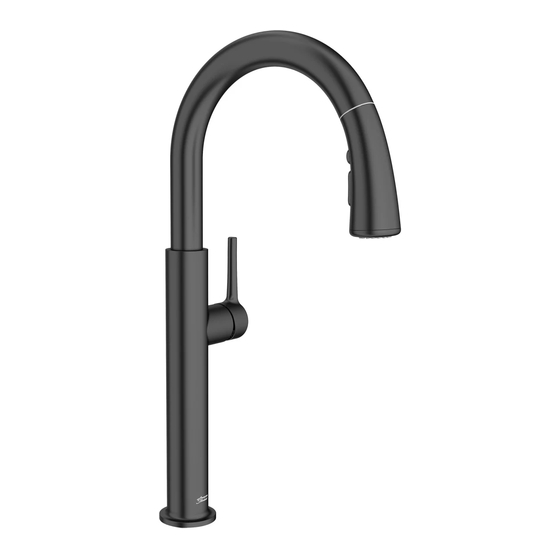

Pull-Down Kitchen Faucet
Thank you for selecting American Standard...
the benchmark of fine quality for over 140 years.
To ensure that your installation proceeds smoothly-please read
these instructions carefully before you begin.
RECOMMENDED TOOLS
Flat Blade Screwdriver
1

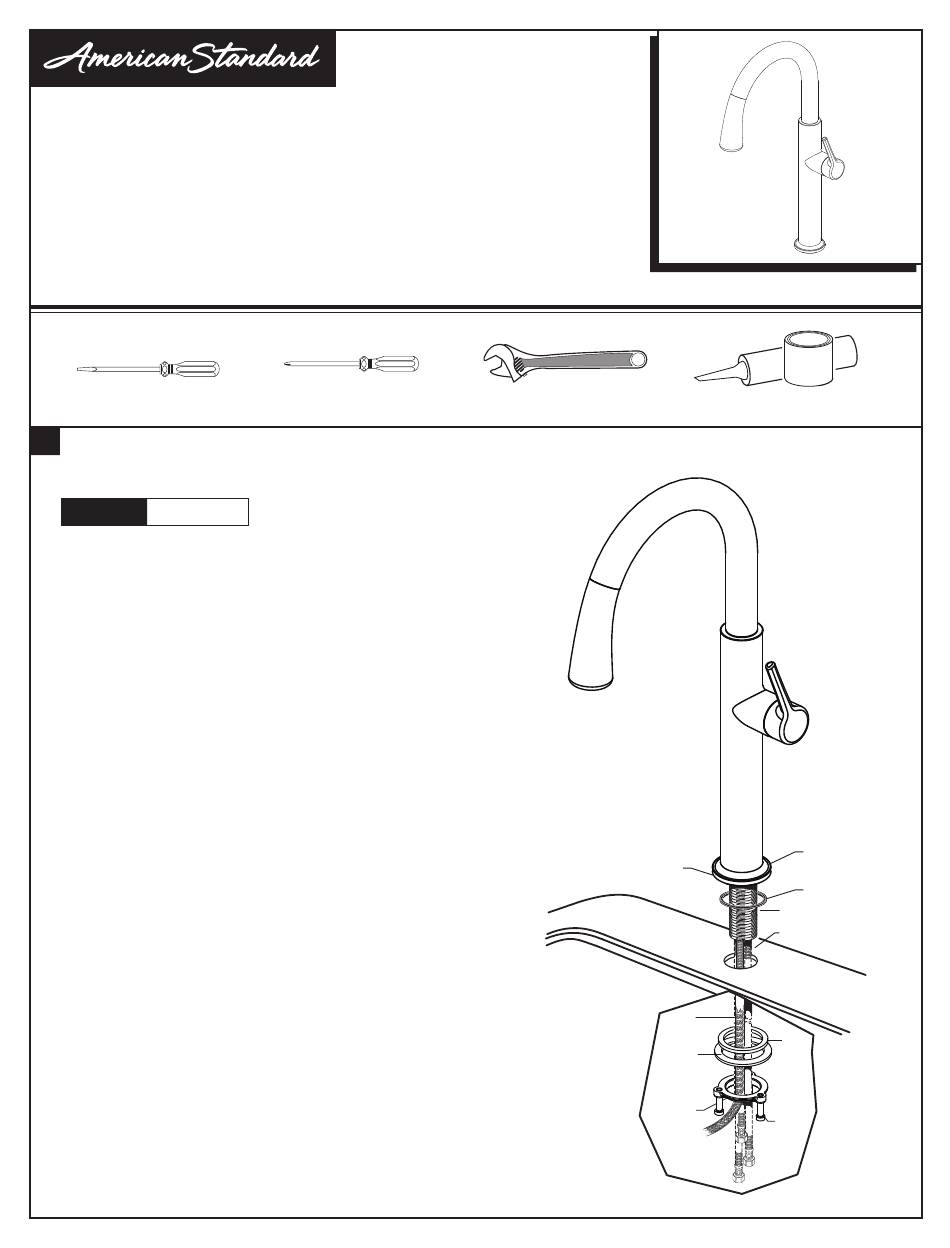

INSTALL FAUCET
Turn off water at
CAUTION
main supply
• Make certain the SEAL (1) is properly seated in recess of
spout base.
• Insert all HOSES (2) and SHANK (3) through MOUNTING
RING (4) and mounting surface. Do not use putty.
• Insert HOSES (2) through RUBBER WASHER (5), BRASS
WASHER (6), and threaded LOCKNUT (7).
• Assemble RUBBER WASHER (5), BRASS WASHER (6), and
threaded LOCKNUT (7) onto SHANK (3) from underside
of sink or mounting surface. Hand tighten LOCKNUT (7).
• Use a screwdriver to tighten SCREWS (8) on LOCKNUT (7).
Work your way around LOCKNUT (7), tightening the screws
slightly each time until all are snug to ensure even pressure.
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2019
INSTALLATION
INSTRUCTIONS
Phillips Screwdriver
- 1 -
4803300
Certified to comply with ANSI A112.18.1M
Certified to comply with ANSI A112.18.1M
Adjustable Wrench
SPOUT BASE
2
6
7
Plumbers' Putty or Caulking
4
1
3
2
5
8
M985011 (3/19)
Advertisement
Table of Contents
Related Manuals for American Standard Studio-S 4803300
Summary of Contents for American Standard Studio-S 4803300
- Page 1 4803300 Studio-S ® Pull-Down Kitchen Faucet Thank you for selecting American Standard... the benchmark of fine quality for over 140 years. To ensure that your installation proceeds smoothly-please read these instructions carefully before you begin. Certified to comply with ANSI A112.18.1M Certified to comply with ANSI A112.18.1M...
- Page 2 MAKE WATER SUPPLY CONNECTIONS BLUE • Turn off hot and cold water supplies before beginning. STRIPE STRIPE • Connect FLEXIBLE SUPPLY HOSES (1, 2) directly to wall supplies. Connection on fitting supplies are 3/8" compression. Connect left supply hose (Red Stripe) to Hot wall supply.
- Page 3 CHECK CONNECTIONS FOR LEAKS • Move HANDLE into “off” position. • Turn on water supplies and check connections for leaks. • Operate HANDLE up and down, left and right to flush water lines thoroughly. • Operate HAND SPRAY and check connections for leaks. CHECK CONNECTIONS FOR LEAKS SERVICE...
