IMPORTANT
If you use a network installation cable the suitable RJ45 connectors are available in the
SOLARWATT webshop (DELOCK 86287 RJ45 connectors).

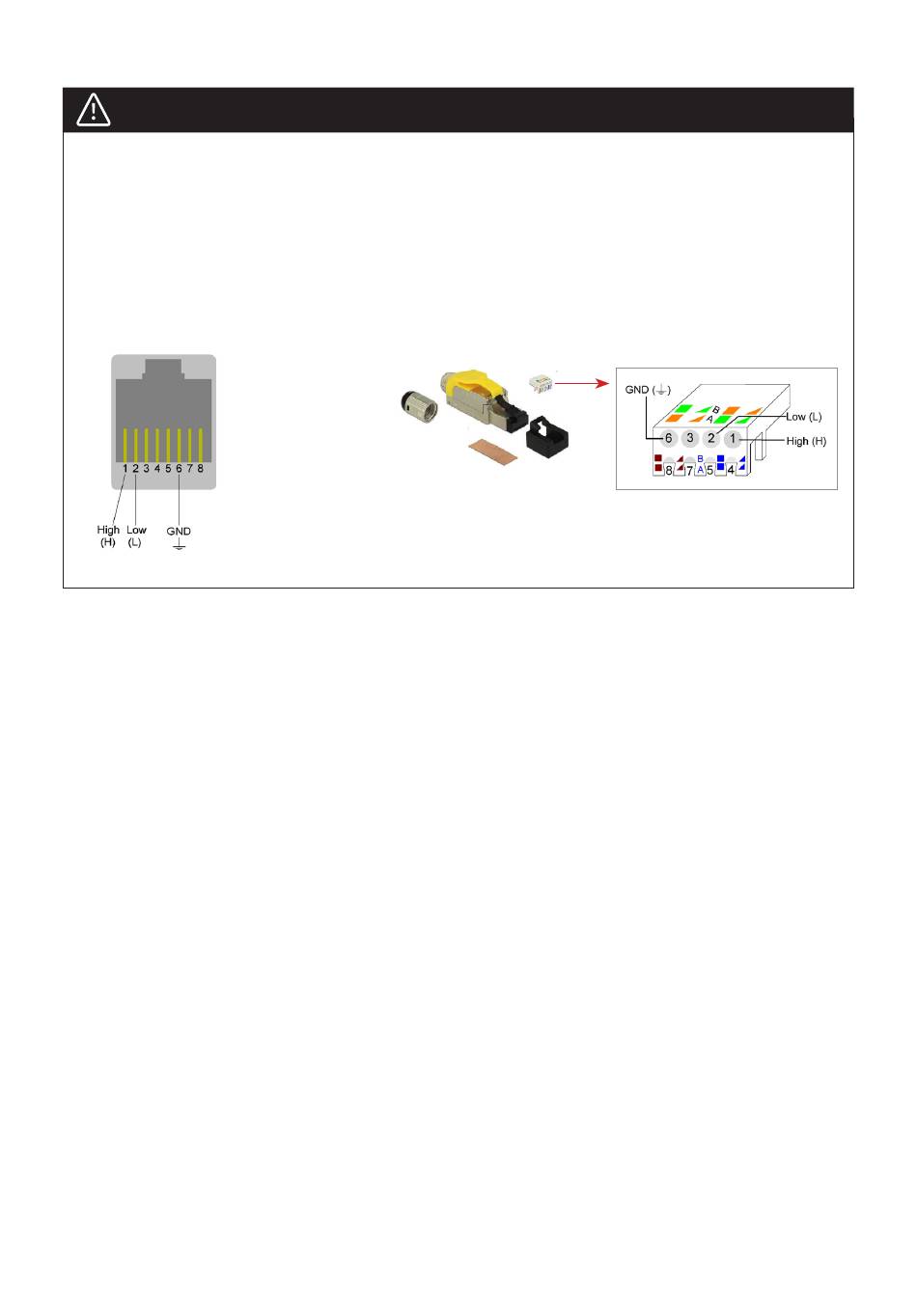

Make sure that the pins H (pin 1), L (pin 2) and GROUND (pin 6) are connected to MyRe-
serve Command and the AC sensor with the same assignment.
pin assignment (any connector)
pin assignment DELOCK 86287 RJ45 Stecker
Version: 07/2020 | Rev. 002 | AZ-TM-PME-1626 | Subject to changes | © 2020 SOLARWATT GmbH | PAGE 21
