Product Description - solarwatt AC-SENSOR FLEX Installation Instructions Manual

5

Product description

The ACS is a bidirectional Current transformer
that measures the electrical power for import
and export, and communicates to the MyReserve
battery storage system, which is then regulated
accordingly.
The ACS is installed after from the retail meter.
6 Layout
Connection terminal for external CT-
1
clamps
DIP-switches S1, S2, S3 for activation of
2
CT-clamp measurement
3 CAN connection MyReserve (RJ45)
4 Grid-side connections
5 House-side connections
6
7
Version: 07/2020 | Rev. 002 | AZ-TM-PME-1626 | Subject to changes | © 2020 SOLARWATT GmbH | PAGE 19

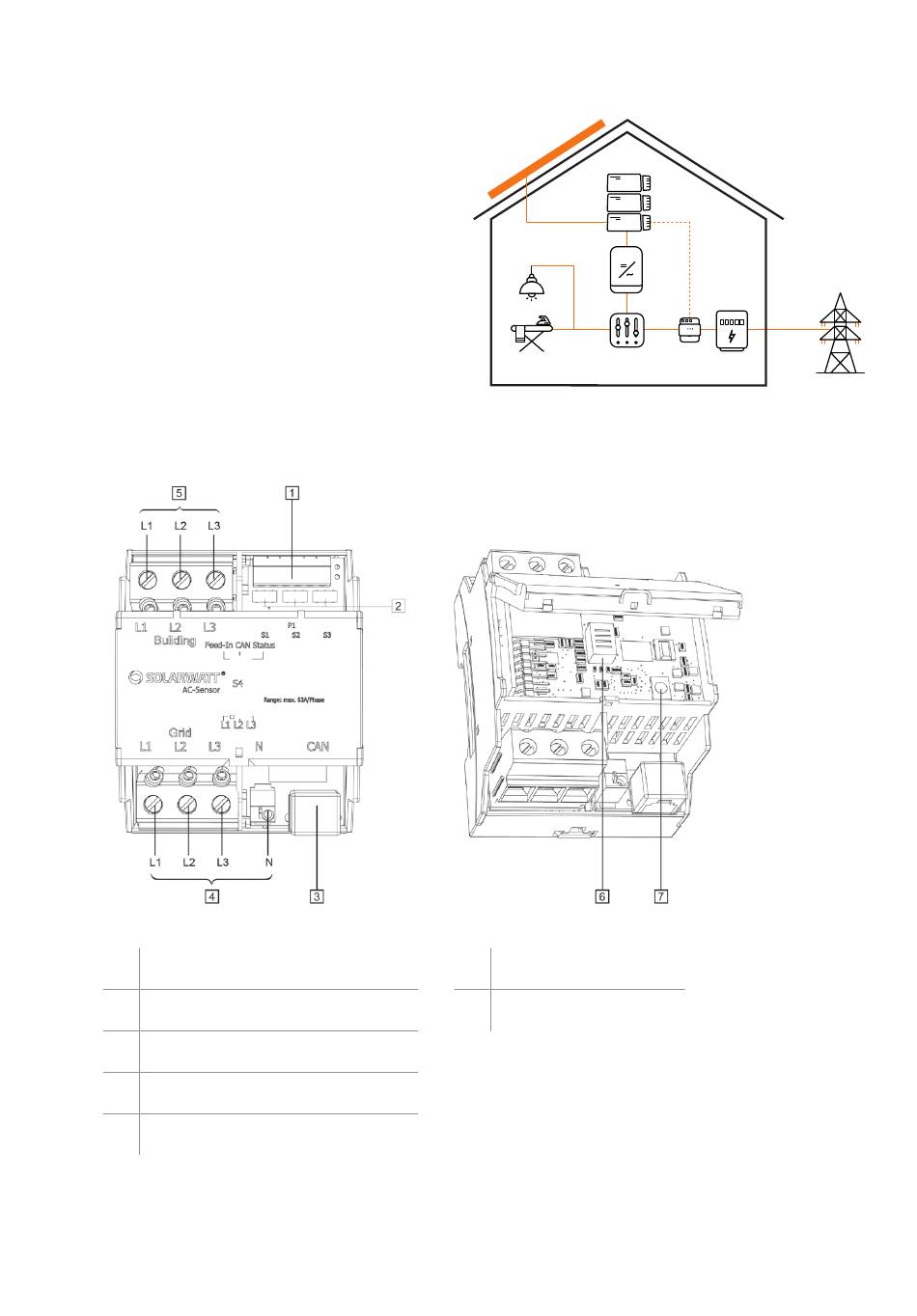

PV Plant
MyReserve
PV-Inverter
Haushold appliances Fuse box
DIP-switch S4
Current ratio settings
Reset switch
CAN
communication
AC-Sensor 2 way
Utility meter
Utility grid
