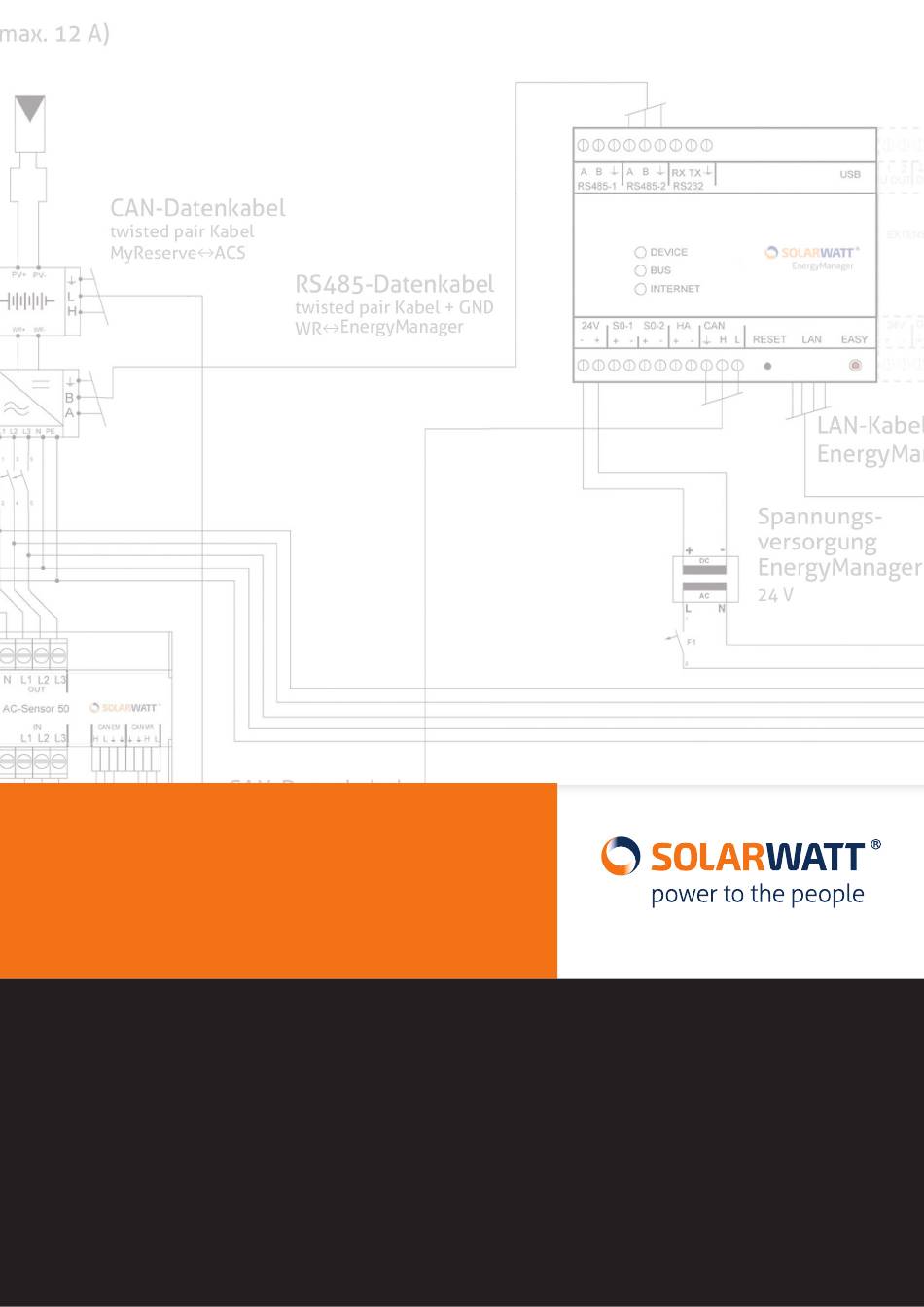

- Page 1 SOLARWATT MYRESERVE CLUSTER INSTALLATION AND INTEGRATION INTO THE ENERGY MANAGEMENT...
-
Page 2: About This Manual
These instructions are a supplement to the installation and operating instructions for the products SOLARWATT MyReserve 500 and 800 and the SOLARWATT EnergyManager instal- lation instructions. Page 2 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017... -
Page 3: Limitation Of Liability
Do not drill any holes into the housing or the MyReserve front panel for purposes of cable insertion, mounting or the like. Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017 Page 3... - Page 4 Only operate the product when the device is in technically sound condition. Always contact a qualifi ed technician when there are error messages on the device. Page 4 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017...
- Page 5 EnergyManager may differ from the data of the electric meter. The Ener- gyManager data is not suitable for billing purposes. Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017 Page 5...
- Page 6 AC-Sensor 63 An inverter with multiple MPP trackers can be used for the DC-side connection of two MyReserve storage systems operated in parallel. Page 6 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017...
- Page 7 Connection diagram for MyReserve CAN communication in parallel operation with AC-Sen- sor 63 and EnergyManager Also observe the circuit diagram overviews in the MyReserve installation and operating instructions. Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017 Page 7...
- Page 8 6.1.1. Topologies of the building installation > MyReserve Cluster and ONE PV system The MyReserve Cluster is connected to ONE inverter (=PV system). The AC Sensor of the Cluster is the main EnergyManager meter. The PV system connected to the Cluster must PV-Anlage always be wired on the building side.
- Page 9 MyReserve Cluster and TWO PV sys- tems The MyReserve Cluster is connected to TWO inverters (=PV systems). The AC Sensor is the main EnergyManager meter. The MyReserve Cluster units and the connected PV systems must always be wired on the building side. Additional PV systems (not connected to a...
-
Page 10: Installation
Under Settings, select Interfaces/drivers and then CAN. MyReserve is already displayed automatically. MyReserve Cluster is operated with an inverter for both units, so you only have to select the driver and then Save. Fig.: Selection of the MyReserve driver for Cluster with one inverter for both units Page 10 Subject to changes | ©... - Page 11 Both MyReserve units and the virtual MyReserve PV inverter are shown in the device list. Fig.: MyReserve Cluster on ONE inverter device overview Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017 Page 11...
- Page 12 Fig.: Activation of the MyReserve driver settings for Cluster with one inverter per unit Fig.: Selection of the MyReserve driver for Cluster with one inverter per unit MyReserve Settings One Inverter per MyReserve Page 12 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017...
- Page 13 Please use the installation instructions for SOLARWATT EnergyManager for the basic de- scription of the setup interfaces. Only the special settings in connection with MyReserve Cluster are explained below. Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017 Page 13...
- Page 14 Select a MyReserve PV, mark the inverter to which the unit is connected and confi rm your entries with Save. Fig.: MyReserve category Page 14 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017...
- Page 15 If MyReserve Cluster is operated with only one inverter for both storage systems, you only have to assign ONE PV system. So assign a unique name to the PV system to which the MyReserve Cluster is connected. Then, select the integrated MyReserve PV virtual device in the dropdown menu under Inverters/Yield meters in order to assign it to the PV system.
- Page 16 6.4.3. Settings under Location Also assign the new MyReserve for both variants under the Location category setup as a building-side storage battery. Page 16 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017...
- Page 17 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017 Page 17...
- Page 18 Tel. + 49 351 8895-0 | Fax + 49 351 8895-111 | info@solarwatt.net Certified according to ISO 9001 and ISO 14001 | BS OHSAS 18001:2007 HIGHEST EFFICIENCY. CERTIFIED SECURITY. GUARANTEED PERFORMANCE. Page 18 Subject to changes | © 2017 SOLARWATT GmbH | AZ-TM-PME-1164 | Rev 001 | Version: 07/2017...
