Display elements

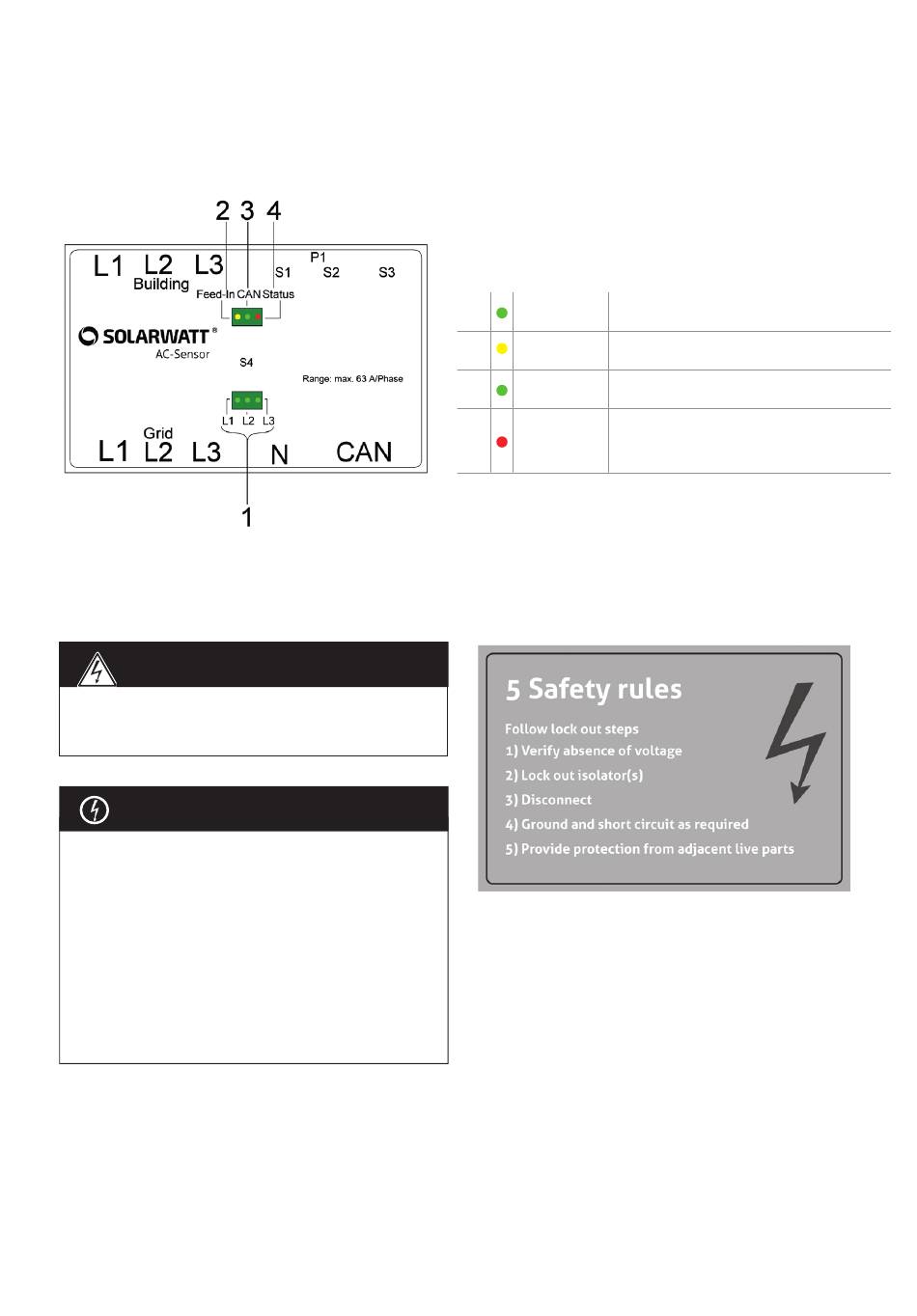

The fi gure shows the LED indicators in the correct operating state. For error states, please refer to
chapter „Faults" on page 14.
8

Connection and commissioning

IMPORTANT
Observe the 5 safety rules!
HAZARD
Life-threatening danger due to electric
shock!
Extremely dangerous voltage runs through
the household junction box. Disconnect
the connection point and secure against
re-connection. Ensure that the conductors
that are connected to the ACS or should be
disconnected from it are de-energized.
PAGE 20 | Version: 07/2020 | Rev. 002 | AZ-TM-PME-1626 | Subject to changes | © 2020 SOLARWATT GmbH
1 L1, L2, L3 phase conductors carry power
2 Feed-In PV feed-in > 100 W
3 CAN CAN communication operating
fl ashing 1x/s = operational
4 Status
fl ashing 5x/s = error/update
