Manufactured by Welch Allyn, Inc. Skaneateles Falls, NY U.S.A.
Caution: Federal law restricts this device to sale by or on the order of a physician.
The Stress Option for the Welch Allyn ELI 280 is not available in the U.S. or Canada.
The Welch Allyn ELI 280 and Burdick ELI 280 Resting Electrocardiographs are available in the U.S. and
Canada.

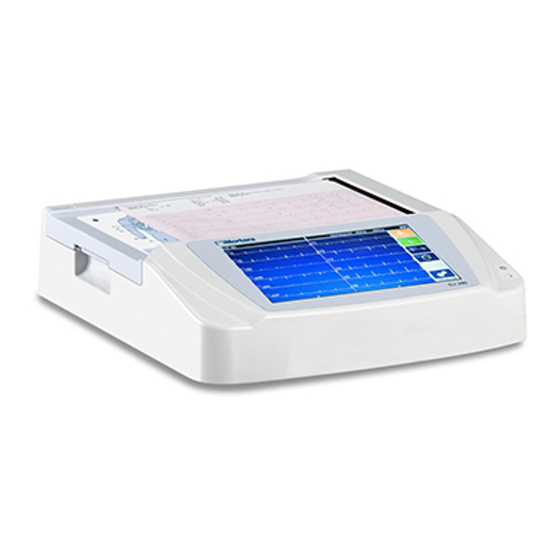

Welch Allyn
®
ELI
280
EXERCISE STRESS OPTION
ADDENDUM TO ELI 280
USER MANUAL
®
