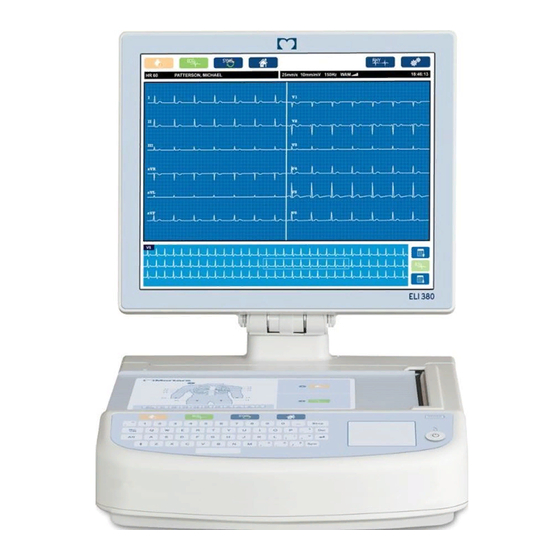

Welch Allyn ELI 380 Quick Reference Manual

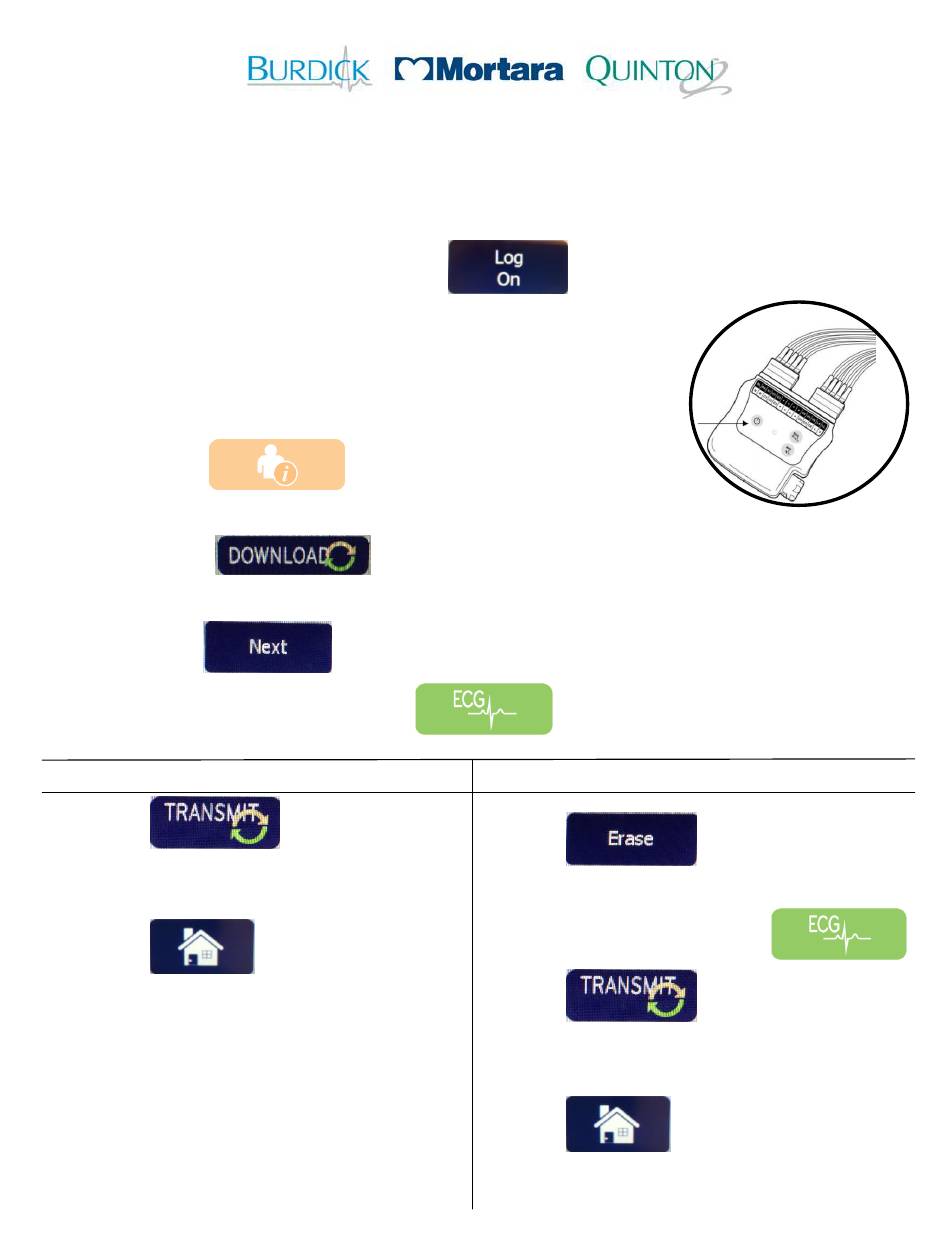

ELI 380 Quick Reference Guide – Modality Worklist (Orders)
1.
Open ECG cover, press power button
2.
Enter your user name, or select from drop-down list if you recently signed in
3.
Enter your password and select
Successful sign-in will take you to the real-time ECG display
4.
Prep patient skin (clip hair, clean, & abrade)
5.
Place electrodes on patient and connect lead wires
6.
If using the Wireless Acquisition Module (WAM), turn on
7.
Select
8.
Set Query Code to _____________ in the drop down menu
9.
Select
10.
Select the correct patient, enter technician (if applicable)
11.
Press
12.
Acquire an ECG by selecting
To save and send ECG
1. Select
2. Ensure you see the message
"1/1 ECG(s) Transmitted" then select OK
3. Select
return to real-time display
9509-189-01-ENG Rev 2
, then select the MWL tab
, wait for the action to complete, then click OK
to display the real-time ECG
to transmit ECG
to save the ECG and
button
To delete and acquire new ECG
1. Select
2. When prompted to "Erase ECG?" select YES
3. Acquire an ECG by selecting
4. Select
5. Ensure you see the message
"1/1 ECG(s) Transmitted" then select OK
6. Select
return to real-time display
to transmit ECG
to save the ECG and
