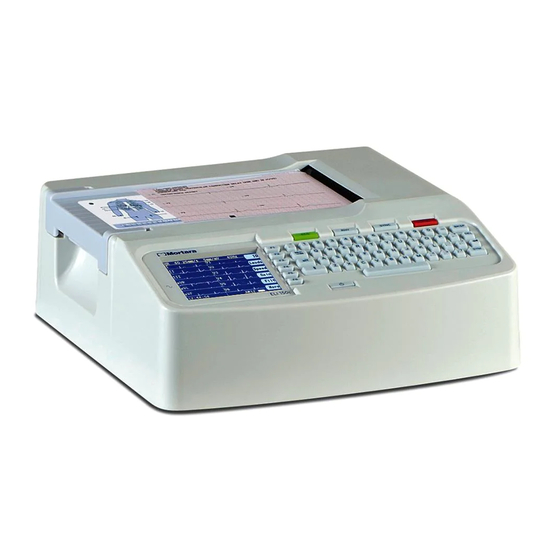

Welch Allyn ELI 10 Quick Start Manual

Choose your device:
•

ELI 10

•
Eli 150C And 250C
•
Eli 350
•
Eli 280
ELI 10
Based on v1.13.
1. Delete all existing ECGs from memory.
1. From the main menu, press F6 More.
2. Press the number 3 for Set Time/Date.
3. Press and hold the Shift and Alt keys, and then press C.
4. Enter the ELI's administrator password.
5. Press and hold the Shift and Alt keys, and then press F.
6. Press F1 OK.
7. Press and hold the Power button to reboot the ELI.
8. Wait about 10 seconds, and then press the Power button to turn the ELI on.
2. From the main menu, press F6 More.
3. Press the number 3 for Set Time/Date.
4. Press and hold the Shift and Alt keys, and then press C.
5. Enter the ELI's administrator password.
6. If your ELI does not have Rx Multi-study support:
1. Press the F2 down arrow to move the cursor to Site Number.
2. Enter your ECG Safe's Site Number.
3. Press the F2 down arrow to move the cursor to the Site Name.
4. Enter your organization's name as you want it to appear in the footer of the ECGs.
7. Press the F4 Page button until you are on Page 5.
8. Press F3 to select WLAN or LAN, depending on which type of network connection you'll be using.
9. Press F2 down arrow to move to the DHCP setting.
10. Select Yes if your network will assign the ELI an IP address. If you select No, you will need to
configure a static IP Address, Default Gateway, and Subnet Mask for the ELI in the next 3 settings
under DHCP.
11. Press F2 down arrow to move to the Host IP field.
12. Enter your ECG Safe's Host IP. You must enter 3 digits in each field. Use leading 0's as necessary.
13. Press F2 down arrow to move to the Port Number field.
14. Enter your ECG Safe's Port Number.
CONFIGURING YOUR ELI FOR ECG SAFE
ECG Safe
