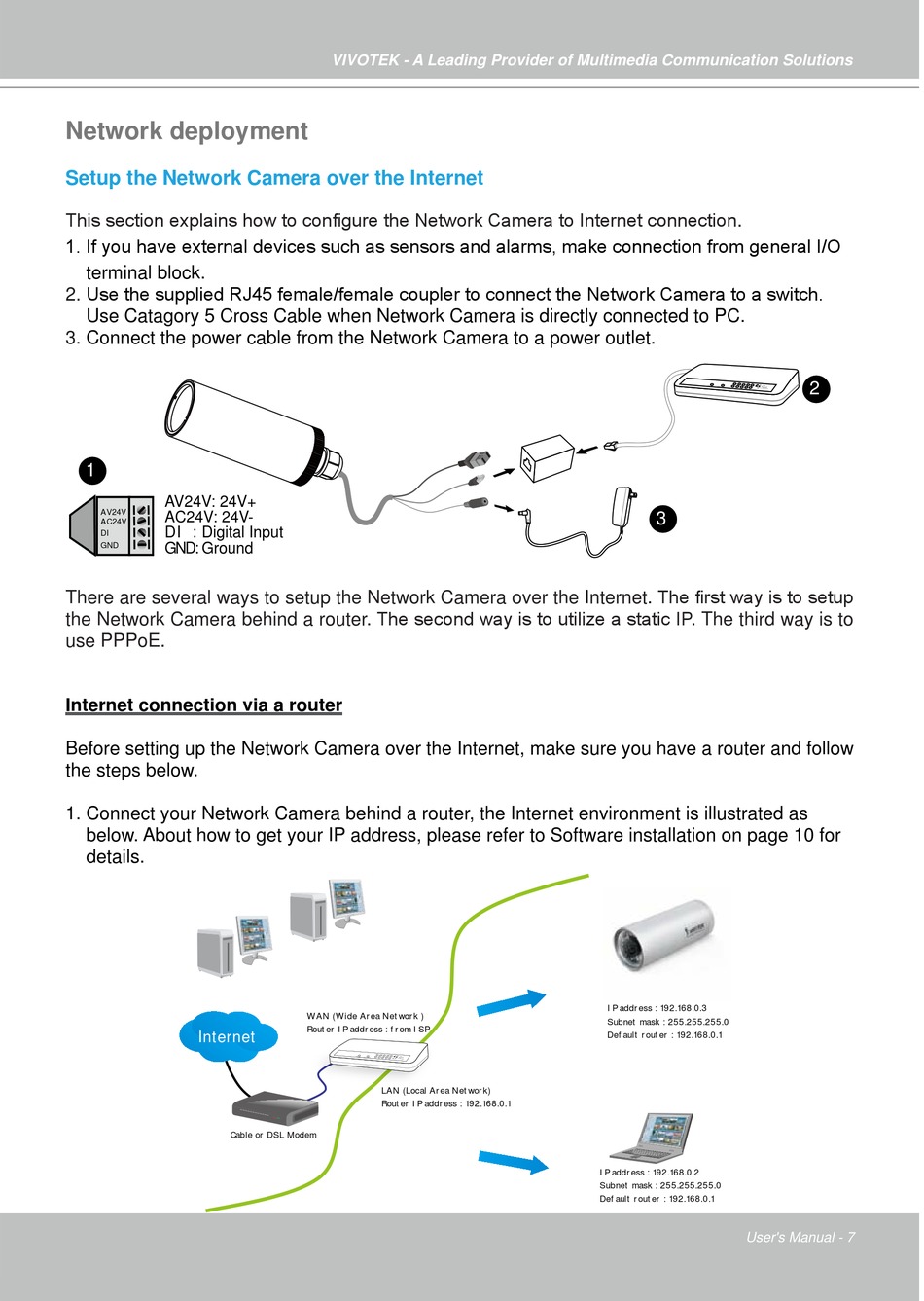

Network deployment

Setup the Network Camera over the Internet
This section explains how to configure the Network Camera to Internet
1. If you have external devices such as sensors and alarms, make connection from general I/O
terminal block�
Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch.
2�
Use Catagory 5 Cross Cable when Network Camera is directly connected to PC�
3� Connect the power cable from the Network Camera to a power outlet�
1
AV24V: 24V+
AV24V
AC24V: 24V-
AC24V
DI : Digital Input
DI
GND
GND: Ground
There are several ways to setup the Network Camera over the
the Network Camera behind a
use PPPoE�
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow
the steps below�
1� Connect your Network Camera behind a router, the Internet environment is illustrated as
below� About how to get your IP address, please refer to Software installation on page 10 for
details�
Internet
Cable or DSL Modem
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
The second way is to utilize a static
router�
WAN (Wide Area Network )
Router IP address : from ISP
LAN (Local Area Network)
Router IP address : 192.168.0.1
connection�
3
The first way is to setup
Internet�
IP�
The third way is to
IP address : 192.168.0.3
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
IP address : 192.168.0.2
Subnet mask : 255.255.255.0
Default router : 192.168.0.1
User's Manual - 7
