Installation

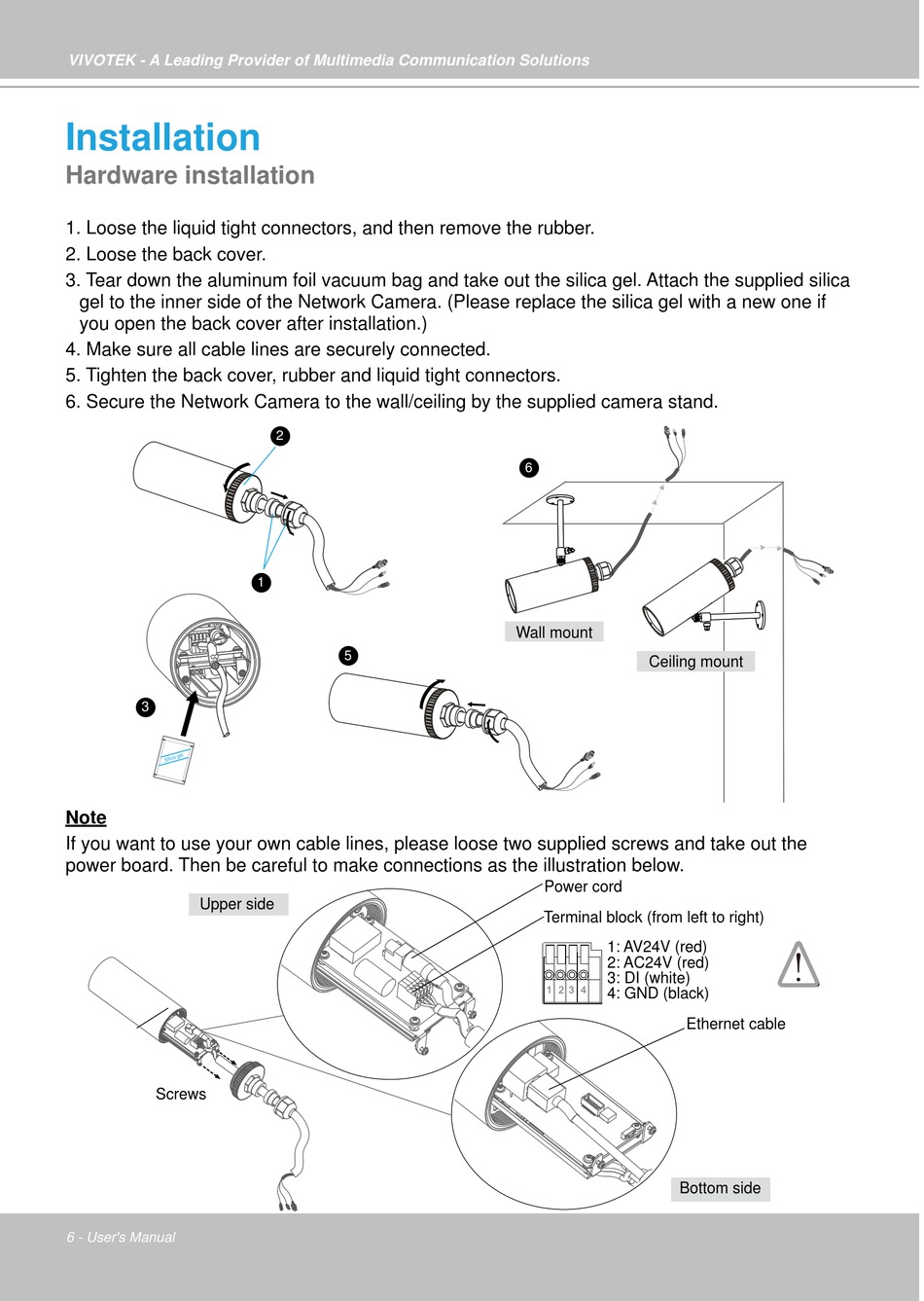

Hardware installation

1� Loose the liquid tight connectors, and then remove the rubber�
2� Loose the back cover�
3� Tear down the aluminum foil vacuum bag and take out the silica gel� Attach the supplied silica
gel to the inner side of the Network Camera� (Please replace the silica gel with a new one if
you open the back cover after installation�)
4� Make sure all cable lines are securely connected�
5� Tighten the back cover, rubber and liquid tight connectors�
6� Secure the Network Camera to the wall/ceiling by the supplied camera stand�
3
Note
If you want to use your own cable lines, please loose two supplied screws and take out the
power board� Then be careful to make connections as the illustration below�
Upper side
Screws
6 - User's Manual
2
1
5
6
Wall mount
Ceiling mount
Power cord
Terminal block (from left to right)
1: AV24V (red)
2: AC24V (red)
3: DI (white)
4: GND (black)
Ethernet cable
Bottom side
