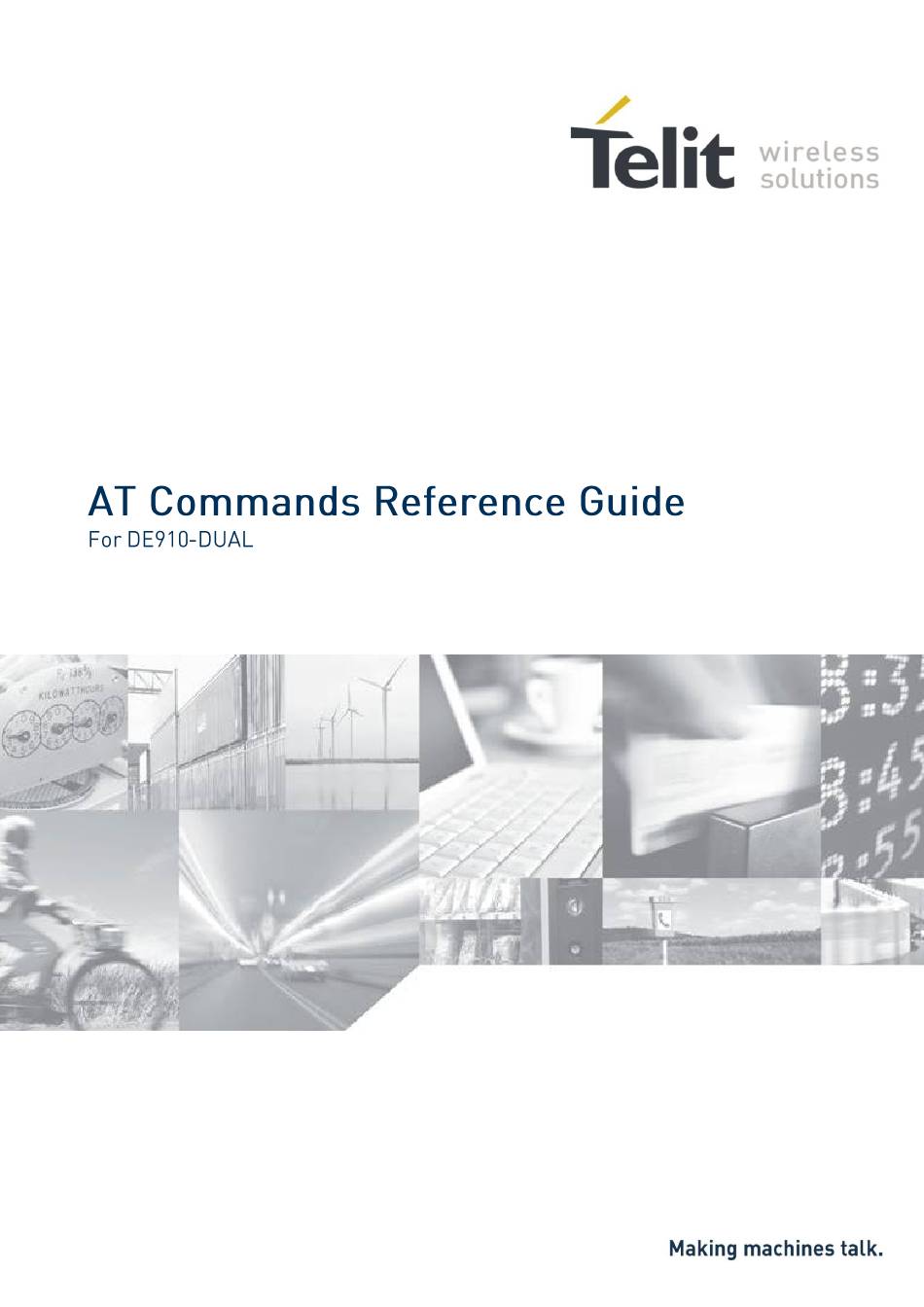

Page 1 80392ST10102A Rev.2 – 2012-07-03...
Page 2 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 PRODUCT DE910-DUAL Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 2 of 261...
Page 3 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE Notice While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein.
Page 4 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Usage and Disclosure Restrictions License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement.
Page 5 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 1. Introduction ........................7 1.1. Scope ............................ 7 1.2. Audience ..........................7 1.3. Contact Information, Support ..................... 7 1.4. Document Organization ...................... 7 1.5. Text Conventions ......................... 8 1.6. Related Documents ......................8 2.
Page 6 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 3.5.4.7. Commands for Battery Charger ....................88 3.5.5. Partially 3GPP TS 27.005 AT Commands for SMS and CBS ............89 3.5.5.1. General Configuration ........................ 89 3.5.5.2. Message Configuration ......................91 3.5.5.3.
Page 7 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 This document provides a detailed specification and a comprehensive listing of all AT commands supported by the DE910-DUAL. Readers of this document should be familiar with Telit modules and the means of controlling them using AT Commands.
Page 8 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Chapter 3: “AT Commands” The core of this reference guides. Danger – This information MUST be followed or catastrophic equipment failure or bodily injury may occur. Caution or Warning – Alerts the user to important points about integrating the module., If these points are not followed;...
Page 9 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 This document describes all AT commands implemented on the Telit wireless module DE910- DUAL. Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 9 of 261...
Page 10 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 The Telit wireless module family can be controlled via the serial interface using the standard AT commands . The Telit wireless module family is compliant with: 1. TIA/EIA/707-A.3 AT Command. 2. Partial Hayes standard AT command set.
Page 11 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 The syntax rules followed by the Telit implementation of both Hayes AT commands and GSM/WCDMA commands are very similar to those of standard basic and extended AT commands. There are two types of extended command: Parameter type commands.
Page 12 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 A command line is made up of three elements: the prefix, the body and the termination character. The command line prefix consists of the characters “AT” or “at”, or, to repeat the execution of the previous command line, the characters “A/”...
Page 13 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 command cannot be performed for some reason, result code 4<CR> and no subsequent commands in the command line are processed. In case of errors depending on ME operation, ERROR (or 4) response may be replaced by +CME ERROR: <err>...
Page 14 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 This is NOT a command; it is the error response to +Cxxx 3gpp TS 27.007 commands. Syntax: +CME ERROR: <err>. Parameter: <err> - error code can be either numeric or verbose (see +CMEE).The possible values of <err>...
Page 15 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 This is NOT a command; it is the error response to +Cxxx SMS commands. Syntax: +CMS ERROR: <err> Parameter: <err> - numeric error code. The <err> values are reported in the table:...
Page 16 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Other Terminal problem Other terminal problem more first Other terminal problem more last SMS delivery postponed more first SMS delivery postponed more last Radio Interface Problems Numeric Format Meaning Radio if resource shortage...
Page 17 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 General Problems Numeric Format Meaning Unexpected parameter size SMS origination denied SMS termination denied Supplemental service not supported SMS not supported RESERVED 101 Missing expected parameter Missing mandatory parameter Unrecognized parameter value...
Page 18 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 The TA response, in case of verbose response format enabled, for the previous examples command line could be as shown below:  Information response to +CMD1? <CR><LF>+CMD1: 2,1,10<CR><LF>  Information response to +CMD1=? <CR><LF>+CMD1: (0-2),(0,1),(0-15)<CR><LF>...
Page 19 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Every command issued to the Telit modules returns a result response if response codes are enabled (default). The time needed to process the given command and return the response varies, depending on the command type. Commands that do not interact with the network, and involve only internal set up settings or readings typically have quicker response times than commands that require network interaction.
Page 20 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #TONE 5 (if no duration specified) #EMAILD #EMAILACT #SEMAIL 210 ( context activation + DNS resolution ) #SKTD 140 (DNS resolution + timeout set with AT#SKTCT) #SKTOP 290 ( context activation + DNS resolution + timeout set with AT#...
Page 21 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 If the response codes are disabled and therefore the module does not report any response to the command, then at least the 20ms pause time shall be respected. During command mode, due to hardware limitations, under severe CPU load the serial port can lose some characters if placed in autobauding at high speeds.
Page 22 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 The Telit wireless modules store the values set by several commands in the internal non- volatile memory (NVM), allowing this setting to remain even after power off. In the NVM these values are set either as factory profile or as user profiles: there are two customizable user profiles and one factory profile in the NVM of the device.
Page 23 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ECAM, #SMOV, #SKIPESC, #E2ESC #CFLO +CALM, +CRSL, +CMUT, +CLVL, +VTD, #PCMTXG #PCMRXG #DVICFG, #CAP, #SRS, #SRP, #STM, #DVI, #SHFEC, #HSMICG, #SHFSD, #SPKMUT, #E2SLRI, #DAC, #PSEL, #HFRECG #HSRECG, #SHFAGC, #SHSAGC, #SHSEC, #SHSNR,...
Page 24 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 The following table lists the AT command set and matches the availability of every single command versus the Telit wireless module family. Page COMMAND Verizon Sprint Aeris Function Command Line General Format – Command Line Prefixes ...
Page 25 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Page COMMAND Verizon Sprint Aeris Function    &K Flow Control    &S Data Set Ready (DSR) Control    Ring (RI) Control    +IPR Fixed DTE Interface Rate ...
Page 26 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Page COMMAND Verizon Sprint Aeris Function    +CREG Network Registration Report    +CLIP Calling Line Identification Presentation    +CLIR Calling Line Identification Restriction  ...
Page 27 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Page COMMAND Verizon Sprint Aeris Function    #TEMPMON Temperature monitor    #GPIO General Purpose Input/output Pin Control    #SLED STAT_LED GPIO Setting   ...
Page 28 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Page COMMAND Verizon Sprint Aeris Function    #PCMTXG PCM Tx Volume    #PCMRXG PCM Rx Volume    #SHFAGCRX Handsfree RX AGC Value tuning  ...
Page 29 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Page COMMAND Verizon Sprint Aeris Function    #E2SLRI Socket Listen Ring Indicator    #FRWL Firewall Setup    #GDATAVOL GPRS Data Volume    #ICMP ICMP Support ...
Page 30 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Page COMMAND Verizon Sprint Aeris Function    #CRXD RX Diversity for CDMA    #HDRPS High Data Rate Protocol Suit Custom AT Commands – Verizon Specific AT commands ...
Page 31 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 AT - Starting A Command Line The prefix AT, or at, is a two-character abbreviation (ATtention), always used to start a command line to be sent from TE to TA Reference 3GPP TS 27.007...
Page 32 Set command sets the AT command interface style depending on parameter <v>. AT#SELINT=<v> Parameter: <v> - AT command interface 2 - switches the AT command interface style of the product, to DE910-DUAL family Read command reports the current interface style. AT#SELINT? Test command reports the available range of values for parameter <v>.
Page 33 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #HWREV - Hardware revision Execution command returns the device Hardware revision identification code AT#HWREV without command echo. AT#HWREV? Test command returns the OK result code. &F - Set To Factory-Defined Configuration Execution command sets the configuration parameters to default values specified by AT&F[<value>]...
Page 34 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Z - Soft Reset Execution command loads the base section of the specified user profile and the ATZ[<n>] extended section of the default factory profile. Parameter: <n> 0..1 - user profile number Note: any call in progress will be terminated.
Page 35 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &Y - Default Reset Basic Profile Designation Execution command defines the basic profiles that will be loaded on start up. AT&Y[<n>] Parameter: <n> 0..1 - profile (default is 0): the wireless module is able to store 2 complete configurations (see &W).
Page 36 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &W - Store Current Configuration Execution command stores on profile <n> the complete configuration of the device. AT&W[<n>] Parameter: <n> 0..1 - profile Note: if parameter is omitted, the command has the same behaviour of AT&W0.
Page 37 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &N - Display Internal Phonebook Stored Numbers Execution command returns the telephone number stored at the <n> position in the AT&N[<n>] internal memory. Parameter: <n> - phonebook record number Note: if parameter <n> is omitted then all the internal records are shown.
Page 38 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +GSN - Serial Number Execution command returns the device board serial number in 8-digit decimal. AT+GSN Note: The number returned is not the IMSI, it is only the board number Reference V.25ter...
Page 39 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &V3 - Extended S Registers Display <reg0> <dec> <hex> <reg1> <dec> <hex> where <regn> - S register number 000..005 <dec> - current value in decimal notation <hex> - current value in hexadecimal notation &V2 - Display Last Connection Statistics...
Page 40 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +GCI - Country Of Installation Set command selects the installation country code according to AT+GCI=<code> ITU-T.35 Annex A. AT+GCI? Read command reports the currently selected country code. AT+GCI=? Test command reports the supported country codes.
Page 41 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 E - Command Echo echoed back to the DTE before the response is given. Note: if parameter is omitted, the command has the same behaviour of ATE0 Reference V25ter Q - Quiet Result Codes ATQ[<n>]...
Page 42 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 V - Response Format Set command determines the contents of the header and trailer transmitted with ATV[<n>] result codes and information responses. It also determines if result codes are transmitted in a numeric form or an alphanumeric form (see [§3.2.3 Information Responses And Result Codes] for the table of result codes).
Page 43 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 X - Extended Result Codes Set command selects the result code messages subset used by the modem to inform ATX[<n>] the DTE of the result of the commands. Parameter: <n> 0 - send only OK, CONNECT, RING, NO CARRIER, ERROR, NO ANSWER results.
Page 44 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &C - Data Carrier Detect (DCD) Control 1 - DCD follows the Carrier detect status: if carrier is detected DCD is high, otherwise DCD is low. (factory default) 2 - DCD off while disconnecting Note: if parameter is omitted, the command has the same behaviour of AT&C0...
Page 45 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 \Q - Standard Flow Control 0 - no flow control 1 – software bi-directional with filtering (XON/XOFF) 2 - hardware mono-directional flow control (only CTS active) 3 - hardware bi-directional flow control (both RTS/CTS active) (factory default) Note: if parameter is omitted, the command has the same behaviour as AT\Q0 Note: Hardware flow control (AT\Q3) is not active in command mode.
Page 46 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &S - Data Set Ready (DSR) Control Parameter: <n> 0 - always High 1 - follows the Data traffic channel indication. 2 - High when connected 3 - High when device is ready to receive commands (factory default).
Page 47 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +IPR - Fixed DTE Interface Rate Set command specifies the DTE speed (UART only) at which the device accepts AT+IPR=<rate> commands during command mode operations; it may be used to fix the DTE-DCE interface speed.
Page 48 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +IFC - DTE-Modem Local Flow Control Set command selects the flow control behaviour of the serial port in both directions: AT+IFC=<by_te>, <by_ta> from DTE to modem (<by_ta> option) and from modem to DTE (<by_te>) Parameters: <by_te>...
Page 49 Set command defines the asynchronous character framing to be used when [,<parity>] autobauding is disabled. The DE910-DUAL family supports only the 8 Data, 1 Stop setting. Parameters: <format> - determines the number of bits in the data bits, the presence of a parity bit, and the number of stop bits in the start-stop frame.
Page 50 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 D – Dial Execution command starts a call to the phone number given as parameter. ATD<number>[;] If “;” is present, a voice call to the given number is performed, regardless of the current value of the connection mode set by +FCLASS command.
Page 51 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 T - Tone Dial Set command has no effect is included only for backward compatibility with landline modems. Reference V25ter. P - Pulse Dial Set command has no effect is included only for backward compatibility with landline modems.
Page 52 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 &G - Guard Tone AT&G Set command has no effect is included only for backward compatibility with landline modems. &Q - Sync/Async Mode AT&Q Set command has no effect is included only for backward compatibility with landline modems.
Page 53 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +MS - Modulation Selection AT+MS= Set command has no effect is included only for backward compatibility with <carrier> landline modems. [,<automode> [,<min_rate> Parameters: <carrier> - a string which specifies the preferred modem carrier to use in [,<max_rate>]]]...
Page 54 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 AT+DS=<n> Set command sets the V42 compression parameter. Command has no effect, supported only for the purpose of cross-technology compatibility within products supporting Telit Unified AT-commands. Parameter: <n> 0 – no compression, currently the only supported value. Returns OK.
Page 55 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +DR - Data Compression Reporting Reference V25ter \B - Transmit Break To Remote AT\B Execution command has no effect and is included only for backward compatibility with landline modems \K - Break Handling AT\K[<n>]...
Page 56 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Basic commands that begin with the letter “S” are known as “S-Parameters”. The number following the “S” indicates the “parameter number” being referenced. If the number is not recognized as a valid parameter number, an ERROR result code is issued.
Page 57 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 S0 - Number Of Rings To Auto Answer Set command sets the number of rings required before device automatically ATS0=[<n>] answers an incoming call. Parameter: <n> - number of rings 0 - auto answer disabled (factory default) 1..255 - number of rings required before automatic answer.
Page 58 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 S3 - Command Line Termination Character Set command sets the value of the character either recognized by the device as ATS3=[<char>] command line terminator or generated by the device as part of the header, trailer, and terminator for result codes and information text, along with S4 parameter.
Page 59 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 S5 - Command Line Editing Character Read command returns the current value of S5 parameter. ATS5? Note: the format of the numbers in output is always 3 digits, left-filled with 0s...
Page 60 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 S12 - Escape Prompt Delay Set command sets: ATS12=[<time>] 1) the minimum period, before receipt of the first character of the three escape character sequence, during which no other character has to be detected in order to accept it as valid first character;...
Page 61 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 S38 -Delay Before Forced Hang Up ATS38=[<delay>] Execution command has no effect and is included only for backward compatibility with landline modems. ATS38? Read command returns the current value of S38 parameter.
Page 62 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +ES – Error Control Selection disconnect. Note: Execution command (AT+ES<CR>) return the OK result code AT+ES? Read command report current V.42 error control setting value in the format +ES: <orig_req>,<orig_fallback>,<ans_fallback> AT+ES=? Test command returns all supported values of the <orig_req>, <orig_fallback>,...
Page 63 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CGMI - Request Manufacturer Identification Execution command returns the device manufacturer identification code without AT+CGMI command echo. AT+CGMI=? Test command returns OK result code. Reference 3GPP TS 27.007 +CGMM - Request Model Identification...
Page 64 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSCS - Select TE Character Set Set command sets the current character set used by the device. AT+CSCS= [<chset>] Parameter: <chset> - character set “IRA” - international reference alphabet (ITU-T T.50) Read command returns the current value of the active character set.
Page 65 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Note: The +CMUX command exist the QualcommTM command table and the original function is setting the multiplex option. Reference CL93-V0327-1 F Note: If <rev> is omitted, it is assumed to have the same value as <fwd>.
Page 66 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CRC - Cellular Result Codes Set command controls whether or not the extended format of incoming call AT+CRC= indication is used. [<mode>] Parameter: <mode> 0 - disables extended format reporting (factory default)
Page 67 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CNUM - Subscriber Number Execution command returns the MSISDN in the format: AT+CNUM +CNUM: <alpha>,<number>,<type>[<CR><LF> +CNUM: <alpha>,<number>,<type>[…]] where: <alpha> - alphanumeric string associated to <number>; used character set should be the one selected with +CSCS.
Page 68 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CREG - Network Registration Report 0 - disable network registration unsolicited result code (factory default) 1 - enable network registration unsolicited result code 2 - enable network registration unsolicited result code with network system identification data If <mode>=1, network registration result code reports:...
Page 69 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CLIP - Calling Line Identification Presentation 0 - disables CLI indication (factory default) 1 - enables CLI indication If enabled the device reports after each RING the response: +CLIP: <number>,<type>,””,128,<alpha>,<CLI_validity> where: <number>...
Page 70 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CLIR - Calling Line Identification Restriction For compatibility with UC864, Read command returns +CLIR: 0,2 AT+CLIR? For compatibility with UC864, Test command returns +CLIR: (0-2) AT+CLIR=? Reference 3GPP TS 27.007 +CCWA - Call Waiting Sets the presentation of an unsolicited result code of the call waiting supplementary AT+CCWA=[<n>]...
Page 71 2 - dialling (MO call) 3 - alerting (MO call) 4 - incoming (MT call) 5 - waiting (MT call) Note: 3(alerting) and 5(waiting) are not supported for DE910-DUAL <mode> - call type 0 - voice 1 - data 9 - unknown <mpty>...
Page 72 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPAS - Phone Activity Status AT+CPAS Execution command reports the device status in the form: +CPAS: <pas> Where: <pas> - phone activity status 0 - ready (device allows commands from TA/TE)
Page 73 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CFUN - Set Phone Functionality Set command selects the level of functionality in the ME. AT+CFUN= [<fun>[,<rst>]] Parameters: <fun> - is the power saving function mode 0 - minimum functionality, NON-CYCLIC SLEEP mode: in this mode, the AT interface is not accessible.
Page 74 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSQ - Signal Quality Execution command reports received signal quality indicators in the form: AT+CSQ +CSQ: <rssi>,<fer> where <rssi> - received signal strength indication 0 - (-113) dBm or less 1 - (-111) dBm 2..30 - (-109)dBm..(-53)dBm / 2 dBm per step...
Page 75 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPBS - Select Phonebook Memory Storage Note: For <storage>="MC": if there are more than one-missed calls from the same number the read command will return only the last call. AT+CPBS=? Test command returns the supported range of values for the parameters <storage>.
Page 76 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPBR - Read Phonebook Entries <e_text > - Email alphanumeric text; used character set should be the one selected with command +CSCS <time> - Date and time in clock seconds <duration> - Duration of the call Note: if "MC"...
Page 77 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPBF - Find Phonebook Entries Parameter: <findtext> - string type; used character set should be the one selected with command +CSCS. The command returns a report in the form: [+CPBF: <index1>,<number>,<type>,<text>,<e_text> [<CR><LF>...
Page 78 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPBF - Find Phonebook Entries Searching for everything in phone book, and finding all entries AT+CPBF="" +CPBF: 1,"01048771234",129,"James","example@telit.com" +CPBF: 2,"0169998888",129,"Jane","" +CPBF: 7,"0115556666",129,"Juliet","" +CPBF: 5,"0181111234",129,"Kevin","" Reference 3GPP TS 27.007 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved...
Page 79 Note: if either <number>, <type> , <text> and <e_text> are omitted, the phonebook entry in location <index> is deleted. Note: In DE910-DUAL Sprint case, the index 1 has been always occupied by own phone number. So to change index 1 you have to change the own phone number.
Page 80 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPBW - Write Phonebook Entry Reference 3GPP TS 27.007 Example AT+CPBW=? +CPBW: (1-100),40,(128-255),20 AT+CPBW=6,"18651896699",129,"John","ex@telit.com" Note Remember to select the PB storage with +CPBS command before issuing PB commands. +CCLK - Clock Management Set command sets the real-time clock of the ME.
Page 81 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CALA - Alarm Management settings. It is possible to set up a recurrent alarm for one or more days in the week. <time>[,<n>[,<type> [,<text>[,<recurr> Currently just one alarm can be set.
Page 82 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CALA - Alarm Management RI output pin. The RI output pin remains High until next #WAKE issue or until a 90s timer expires. If the device is in "alarm mode" and it does not receive the #WAKE command within 90s.
Page 83 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CALM - Alert Sound Mode 2 - stealth mode; no sound will be generated by the device Note: if silent mode is selected then incoming calls will not produce alerting sounds but only the unsolicited messages RING or +CRING.
Page 84 AT+CLVL=? Test command reports <level> supported values range in the format: +CLVL: (0-max) Note DE910-DUAL does not support Analog Audio. And +CLVL will be no effect. Instead of +CLVL, refer to #PCMRXG. Reference 3GPP TS 27.007 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved...
Page 85 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMUT - Microphone Mute Control Set command enables/disables the muting of the microphone audio line during a AT+CMUT=<n> voice call. Parameter: <n> 0 - mute off, microphone active (factory default) 1 - mute on, microphone muted.
Page 86 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMEE - Report Mobile Equipment Error AT+CMEE=[<n>] Set command enables/disables the report of result code: +CME ERROR: <err> as an indication of an error relating to the +Cxxx commands issued. When enabled, device related errors cause the +CME ERROR: <err> final result code instead of the default ERROR final result code.
Page 87 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +VTS - DTMF Tones Transmission AT+VTS= Execution command allows the transmission of DTMF tones. <dtmfstring> [,duration] Parameters: <dtmfstring> - String of <dtmf>s, i.e. ASCII characters in the set (0-9), #,* the string can be a <dtmf>s long;...
Page 88 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 + CBC - Battery Charge AT+CBC Execution command returns the current Battery Charge status in the format: +CBC: <bcs>,<bcl> where: <bcs> - battery status 0 - ME is powered by the battery...
Page 89 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSMS - Select Message Service AT+CSMS= Set command selects messaging service <service>. It returns the types of messages <service> supported by the ME: For compatibility with UC864, Parameter <service> is available only 2.
Page 90 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSMS - Select Message Service AT+CSMS? +CSMS: 2,1,1,0 +CPMS - Preferred Message Storage Set command selects memory storages <memr>, <memw> to be used for reading, AT+CPMS= <memr>[,<memw> writing, sending and storing SMs.
Page 91 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CPMS - Preferred Message Storage AT+CPMS? +CPMS: "ME",5,99,"ME",5,99 +CMGF - Message Format Set command selects the format of messages used with send, list, read and write AT+CMGF= [<mode>] commands. Parameter: <mode>...
Page 92 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSMP - Set Text Mode Parameters <priority> - Priority Note: The priority is different with every carrier. In case of Sprint and Aeris.Net: 0 - Normal (factory default) 1 - Interactive...
Page 93 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSDH - Show Text Mode Parameters 1 - show the values in result codes Read command reports the current setting in the format: AT+CSDH? +CSDH: <show> AT+CSDH=? Test command reports the supported range of values for parameter <show>...
Page 94 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CSAS - Save Settings Note: If parameter is omitted the settings are saved to profile 0 in the non-volatile memory. AT+CSAS=? Test command returns the possible range of values for the parameter <profile>.
Page 95 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CNMI - New Message Indications To Terminal Equipment <mt> - The information written in italics will be present depending on +CSDH last setting. Unsolicited result codes buffering option 0 - No Indication (factory default) 1 - Indicate like below +CMTI: <memr>,<index>...
Page 96 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CNMI - New Message Indications To Terminal Equipment Read command returns the current parameter settings for +CNMI command in the AT+CNMI? form: +CNMI: <mt> AT+CNMI=? Test command reports the supported range of values for the +CNMI command parameters.
Page 97 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGL - List Messages Each message to be listed is represented in the format: +CMGL: <index>,<stat>,””,<length><CR><LF><pdu> Case of received message from base station : <PDU>: <orig_num><date><tele_id><priority><enc_type><length><data> Case of sending message to base station: <PDU>: <da><callback><tele_id><priority><enc_type><length><data>...
Page 98 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGL - List Messages <priority> - Priority. Note: The priority is different with every carrier. In case of Sprint and Aeris.Net: 0 - Normal (factory default) 1 - Interactive 2 - Urgent...
Page 99 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGL - List Messages <addr_len: 7byte> <type_addr:128> 1091346554F3 <Destination_addr: 01194356453> <addr_len: 7byte> <type_addr:128> 1096224658F1 <Callback_Number: 01692264851> 1002 <Teleservice_id: 4098(decimal)> <priority: normal > <encoding_type: octet > <data_len: 10> 61616161616161616161 <data: aaaaaaaaaa> <PDU Mode>...
Page 100 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGL - List Messages AT+CMGL="ALL" +CMGL: 0,"STO UNSENT","9194397977","", +CMGL: 1,"STO UNSENT","9194397977","", +CMGL: 2,"STO UNSENT","9194397977","", +CMGL: 3,"STO UNSENT","9194397976","", +CMGL: 4,"STO UNSENT","9194397976","", Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved...
Page 101 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGR - Read Message Execution command reports the message with location value <index> from AT+CMGR= <index> <memr> message storage (<memr> is the message storage for read and delete SMs as last settings of command +CPMS).
Page 102 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGR - Read Message R><LF><data> where: <stat> - status of the message "REC UNREAD" - new received message unread "REC READ" - received message read "STO UNSENT" - message stored not yet sent "STO SENT"...
Page 103 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGR - Read Message 080804094727 <Date: 08/08/04,09:47:27> 1002 <Teleservice_id: 4098(decimal)> <priority: urgent > <encoding_type: ascii > <data_len: 37> C3870E1C3870E1C3870E1C3870E1C3870E1C3870E1C3870E1C3870E1C3870E 1C20 <user_data: aaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaaa> Else: at+cmgr=31 +CMGR: 2,"",23 07801091346554F307801091346554F3100200000a61616161616161616161 <addr_len: 7byte> <type_addr:128> <Text Mode>...
Page 104 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGS - Send Message (PDU Mode) (PDU Mode) AT+CMGS= Execution command sends to the network a message. <length> After command line is terminated with <CR>, the device responds sending a four character sequence prompt: <CR><LF><greater_than><space>...
Page 105 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGS - Send Message <addr_len: 7byte> <type_addr: 128> 1091346554F3 <Destination_address:01194356453> <addr_len: 7byte> <type_addr: 128> 1096224658F1 <callback_address:01692264851> 1002 <Teleservice_id: 4098(decimal)> <priority: normal > <encoding_type: octet > <data_len: 22> 62626262626262626262626262626262626262626262 <user_data: bbbbbbbbbbbbbbbbbbbbbb> AT+CMGR=20 +CMGR: 2,"",31...
Page 106 Note: if message sending fails for some reason, an error code is reported. Note: The limit of user data is 160 characters. Note: DE910-DUAL has different output format from other GC-family. Note: To discard SMS, press the “ESC” key, an “OK” response will be returned.
Page 107 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMSS - Send Message From Storage Execution command sends to the network a message that is already stored in the AT+CMSS= <index>[,<da> <memw> storage (see +CPMS) at the location <index>. [,<toda>]] Parameters: <index>...
Page 108 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGW - Write Message To Memory Execution command writes in the <memw> memory storage a new message. AT+CMGW= <length> [,<stat>] Parameter: <length> - length in bytes of the PDU to be written.
Page 109 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGW - Write Message To Memory <data_len: 22> 62626262626262626262626262626262626262626262 <user_data: bbbbbbbbbbbbbbbbbbbbbb> (Text Mode) (Text Mode) AT+CMGW[=<da> Execution command writes in the <memw> memory storage a new message. [,<toda> Parameters: [,<stat>]]] <da> - destination address, string type represented in the currently selected character set (see +CSCS);...
Page 110 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGW - Write Message To Memory Note: To discard SMS, press the “ESC” key, an “OK” response will be returned. Test command returns the OK result code. AT+CMGW=? – Example TEXT...
Page 111 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CMGD - Delete Message Note: if the location to be deleted is empty, an error message is reported. AT+CMGD=? Test command shows the valid memory locations and optionally the supported values of <delflag>.
Page 112 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CGMI - Manufacturer Identification Execution command returns the device manufacturer identification code with AT#CGMI command echo. AT#CGMI=? Test command returns the OK result code. Example AT#CGMI #CGMI: Telit #CGMM - Model Identification...
Page 113 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CGSN - Product Serial Number Identification Execution command returns the device electronic serial number (ESN) or the AT#CGSN mobile equipment identifier (MEID) with command echo. Note: This command returns 11-digit decimal of ESN. But, if MEID was entered to modem, this command returns 18-digit decimal of MEID Test command returns the OK result code.
Page 114 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHDN - Software Shutdown Execution command causes device detach from the network and shut down. AT#SHDN Before definitive shut down an OK response is returned. Note: after the issuing of this command any previous activity is terminated and the device will not respond to any further command.
Page 115 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #WAKE - Wake From Alarm Mode Execution command stops any eventually present alarm activity and, if the module AT#WAKE= [<opmode>] is in alarm mode, it exits the alarm mode and enters the normal operating mode.
Page 116 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #QTEMP - Query Temperature Overflow 0 - the device temperature is in the working range 1 - the device temperature is out of the working range Note: typical temperature working range is (-10°C..+55°C); anyway you are strongly recommended to consult the “Hardware User Guide”...
Page 117 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #TEMPMON - Temperature Monitor Set command sets the behavior of the module internal temperature monitor. AT#TEMPMON= <mod> Parameters: [,<urcmode> [,<action> [,<hyst_time> <mod> 0 - sets the command parameters. [,<GPIO>]]]] 1 - triggers the measurement of the module internal temperature, reporting the result in the format: #TEMPMEAS: <level>,<value>...
Page 118 Note: if the <GPIO> is specified <action> shall assume values from 4-7. Note: last <urcmode> settings are saved as extended profile parameters. And DE910-DUAL does not support <urcmode>=2,which is only for Automotive model. Note: last <action>, <hyst_time> and <GPIO> settings are global parameter...
Page 119 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #TEMPMON: <urcmode>,<action>[,<hyst_time>[,<GPIO>]] AT#TEMPMON=? Test command reports the supported range of values for parameters <mod>, <urcmode>, <action>, <hyst_time> and <GPIO> Note CDMA Limits (TBD) Extreme Temperature Lower Bound -30°C Operating Temperature Lower Bound -10°C...
Page 120 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #GPIO - General Purpose Input/output Pin Control <dir> - current direction setting for the GPIO<pin> <stat>  logic value read from pin GPIO<pin> in the case the pin <dir> is set to input;...
Page 121 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SLED - STAT_LED GPIO Setting Set command sets the behaviour of the STAT_LED GPIO AT#SLED=<mode> [,<on_duration> [,<off_duration>]] Parameters: <mode> - defines how the STAT_LED GPIO is handled 0 - GPIO tied Low...
Page 122 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SLED - STAT_LED GPIO Setting AT#SLED? #SLED: 3,50,50 AT#SLED=3,5,5 AT#SLED? #SLED: 3,5,5 #SLEDSAV - Save STAT_LED GPIO Setting AT#SLEDSAV Execution command saves STAT_LED setting in NVM. AT#SLED=? Test command returns OK result code.
Page 123 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #E2SMSRI - SMS Ring Indicator AT#E2SMSRI= Set command enables/disables the Ring Indicator pin response to an incoming SMS message. If enabled, a negative going pulse is generated on receipt of an incoming [<n>]...
Page 124 <value> - pin<adc> voltage, expressed in mV Parameters: <adc> - index of pin 1 - available for DE910-DUAL family <mode> - required action 2 - query ADC value <dir> - direction; its interpretation is currently not implemented 0 - no effect.
Page 125 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #DAC - Digital/Analog Converter Control AT#DAC= Set command enables/disables the DAC_OUT pin. [<enable> Parameters: [,<value>]] <enable> - enables/disables DAC output. 0 - disables pin; it is in high impedance status (factory default) 1 - enables pin;...
Page 126 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #VAUX- Auxiliary Voltage Output Control Set command enables/disables the Auxiliary Voltage pins output. AT#VAUX= [<n>,<stat>] Parameters: <n> - VAUX pin index 1 - there is currently just one VAUX pin <stat>...
Page 127 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #V24CFG - V24 Output Pins Configuration Set command sets the AT commands serial port (UART) interface output pins AT#V24CFG=<pin>, <mode> mode. Parameters: <pin> - AT commands serial port interface hardware pin:...
Page 128 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #V24 - V24 Output Pins Control Set command sets the AT commands serial port (UART) interface output pins state. AT#V24=<pin> [,<state>] Parameters: <pin> - AT commands serial port interface hardware pin:...
Page 129 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CBC- Battery And Charger Status Execution command returns the current Battery and Charger state in the format: AT#CBC #CBC: <ChargerState>,<BatteryVoltage> where: <ChargerState> - battery charger state 0 - charger not connected...
Page 130 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #DIALMODE - Dialing Mode #DIALMODE: <mode> Test command returns the range of values for parameter <mode> AT#DIALMODE=? #ACAL - Automatic Call Set command enables/disables the automatic call function. AT#ACAL= [<mode>] Parameter: <mode>...
Page 131 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ACALEXT - Extended Automatic Call Test command returns the range of available values for parameter <mode> and AT#ACALEXT=? <index> Note Issuing #ACALEXT causes the #ACAL <mode> to be changed. Issuing AT#ACAL=1 causes the #ACALEXT <index> to be set to default. It is...
Page 132 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ECAM - Extended Call Monitoring currently enabled or not, in the format: #ECAM: <onoff> AT#ECAM=? Test command returns the list of supported values for <onoff> #SMOV - SMS Overflow Set command enables/disables the SMS overflow signalling function.
Page 133 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CODEC - Audio Codec AT#CODEC= Set command sets the audio codec mode. [<codec>] Parameter: <codec> 0 - EVRC 1 - QCELP AT#CODEC? Read command returns current audio codec mode in the format: #CODEC: <codec>...
Page 134 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKIPESC - Skip Escape Sequence <mode> 0 - does not skip the escape sequence; its transmission is enabled (factory default). 1 - skips the escape sequence; its transmission is not enabled.
Page 135 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #GAUTH – PPP Connection Authentication Type #GAUTH: <type> Test command returns the range of supported values for parameter <type>. AT#GAUTH=? #RTCSTAT - RTC Status Set command resets the RTC status flag.
Page 136 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 3.5.6.1.35. #CFLO – Command Mode Flow Control AT#CFLO= Set command enables/disables the flow control in command mode. If enabled, <mode> current flow control is applied to both command mode and data mode.
Page 137 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #MONI - Cell Monitor where: <PNn> - Value of n (active/candidate/neighbor) pilot sets. <PNn_Str> - Pilot strength of n (active/candidate/neighbor )pilot sets. AT#MONI=? Test command returns the OK result code. Note Maximum value of parameter n is 3.
Page 138 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #I2CWR – Write to I2C If data are successfully sent, then the response is OK. If data sending fails for some reason, an error code is reported. Example if CheckAck is set and no Ack signal was received on the I2C bus E.g.
Page 139 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #I2CRD – Read from I2C NOTE: If data requested are more than data available in the device, dummy data ( normally 0x00 or 0xff ) will be dumped. NOTE: At the end of the execution GPIO will be restored to the original setting...
Page 140 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SRS - Select Ringer Sound Set command sets the ringer sound. AT#SRS= [<n>,<tout>] Parameters: <n> - ringing tone 0 - current ringing tone 1..max - ringing tone number, where max can be read by issuing the Test command AT#SRS=?.
Page 141 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SRP - Select Ringer Path Read command reports the set value of the parameter <n> in the format: AT#SRP? #SRP: <n>. AT#SRP=? Test command reports the supported values for the parameter <n>.
Page 142 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #TONE - Tone Playback Test command returns the supported range of values for parameters AT#TONE=? <tone> and <duration>. #TSVOL – Tone Classes Volume Set command is used to select the volume mode for one or more tone AT#TSVOL= <class>,...
Page 143 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #DVI - Digital Voiceband Interface AT#DVI=<mode> Set command enables/disables the Digital Voiceband Interface. [,<dviport>, Parameters: <clockmode>] <mode> - enables/disables the DVI. 1 - enable DVI; audio is forwarded to the DVI block <dviport>...
Page 144 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #DVICFG – DVI CONFIGURATION 2 : linear Note: #DVICFG parameters are saved in the extended profile AT#DVICFG? Read command reports the value of parameter in the format: #DVICFG: <clock>,<decoder pad>,<decoder format>, <encoder pad>,<encoder format>...
Page 145 Read command returns the current handset microphone input gain, in the format: #HSMICG: <level> Note DE910-DUAL does not support Analog Audio. And #HSMICG will be no effect. Instead of #HSMICG, refer to #PCMTXG. Test command returns the supported range of values of parameter <level>.
Page 146 AT#HSRECG? Read command returns the current handset analog output gain, in the format: #HSRECG: <level> DE910-DUAL does not support Analog Audio. And #HSRECG will be no effect. Note Instead of #HSRECG, refer to #PCMRXG. Test command returns the supported range of values of parameter <level>.
Page 147 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PRST - Audio Profile Factory Configuration Execution command resets the actual audio parameters in the NVM of the device to AT#PRST the default set. It is not allowed if active audio profile is 0.
Page 148 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PSAV - Audio Profile Configuration Save AT#PSAV=? Test command returns the OK result code. Example AT#PSAV Current audio profile is saved in NVM #PSEL - Audio Profile Selection Set command selects the active audio profile AT#PSEL=<prof>...
Page 149 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PSET - Audio Profile Setting #PSET:<scal_in>,<scal_out>,<side_tone_atten>,<adaption_speed>, <filter_length>,<rxtxrelation>,<nr_atten>,<nr_w_0>,<nr_w_1>, <add_atten>,<min_atten>,<max_atten> It is not allowed if active audio profile is 0. AT#PSET=? Test command returns the supported range of values for the audio parameters.
Page 150 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHSAGC - Handset Automatic Gain Control AT#SHSAGC = Set command enables/disables the automatic gain control function on audio handset input. <mode> Parameter: <mode> 0 - disables automatic gain control for handset mode (default) 1 - enables automatic gain control for handset mode Note: This parameter is saved in NVM issuing AT&W command.
Page 151 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHSNR - Handset Noise Reduction Note: This parameter is saved in NVM issuing AT&W command. AT#SHSNR? Read command reports whether the noise reduction function on audio handset input is currently enabled or not, in the format: #SHSNR: <mode>...
Page 152 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PCMTXG – DVI Microphone Gain AT#PCMTXG=<TX_VOL> Set command sets the DVI (PCM) Audio TX gain Parameter: <TX_VOL> : PCM TX volume in TX path TX VOL RANGE : -5000(-50 dB) ~ 1200(+12 dB) Note: meaning of a TX_VOL is 1/100 dB step.
Page 153 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHFAGCRX – Handsfree RX AGC Value tuning It has no effect and is included only for backward compatibility. AT#SHFAGCRX= <agc_static_gain>,<a gc_aig>, Parameter: <agc_static_gain> <agc_exp_thres>,<ag <agc_aig> c_exp_slope>, <agc_exp_thres> <agc_compr_thres>, <agc_exp_slope> <agc_compr_slope> <agc_compr_thres>...
Page 154 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHSAGCRX – Handset RX AGC Value tuning AT#SHSAGCRX= Set command sets the handset RX AGC value tuning <agc_static_gain>,<a gc_aig>, Parameter: <agc_exp_thres>,<ag <agc_static_gain> precompressor static gain. This is the gain applied to the input samples when c_exp_slope>,...
Page 155 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHSAGCTX – Handset TX AGC Value tuning AT#SHSAGCTX= Set command sets the handset TX AGC value tuning <agc_static_gain>,<a gc_aig>, Parameter: <agc_exp_thres>,<ag <agc_static_gain> precompressor static gain. This is the gain applied to the input samples when c_exp_slope>,...
Page 156 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SRXAGC – RX AGC Enable AT#SRXAGC= Set command sets the RX AGC enabling <mode> Parameter: <mode> 0 - disables rx agc (default) 1 - enables rx agc Note: RX AGC enabling makes RX level decreasing Note: these values are automatically saved in NVM.
Page 157 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 3.5.6.2.36. #SHSFRX - Handset RX filter coefficients values AT#SHSFRX= It has no effect and is included only for backward compatibility. <tap0>,<tap1>,<tap2>,<tap3>, Parameter: <tap4>,<tap5>,<tap6> <tap0> <tap1> <tap2> <tap3> <tap4> <tap5> <tap6> Note: these values are automatically saved in NVM.
Page 158 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SHFFRX - Handsfree RX filter coefficients values AT#SHFFRX= It has no effect and is included only for backward compatibility. <tap0>,<tap1>,<tap2>,<tap3>, Parameter: <tap4>,<tap5>,<tap6> <tap0> <tap1> <tap2> <tap3> <tap4> <tap5> <tap6> Note: these values are automatically saved in NVM.
Page 159 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SS - Socket Status Execution command reports the current status of the sockets in the format: AT#SS #SS: <connId>,<state>,<locIP>,<locPort>,<remIP>,<remPort> [<CR><LF><connId>,<state>,<locIP>,<locPort>,<remIP>,<remPort> […]] where: <connId> - socket connection identifier 1..6 <state> - actual state of the socket: 0 - Socket Closed.
Page 160 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SI - Socket Info AT#SI[=<connId>] Execution command is used to get information about socket data traffic. Parameters: <connId> - socket connection identifier 1..6 The response format is: #SI: <connId>,<sent>,<received>,<buff_in>,<ack_waiting> where: <connId>...
Page 161 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SI - Socket Info 10 byte waiting to be read and 50 bytes waiting to be acknowledged from the remote side. AT#SI=1 #SI: 1,123,400,10,50 We have information only about socket number 1 Reproduction forbidden without Telit Communications S.p.A.
Page 162 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SGACT - Context Activation Execution command is used to activate or deactivate the specified PDP context. AT#SGACT=<cid>, <stat>[,<userId>[, <pwd>]] Parameters: <cid> - PDP context identifier 1 - numeric parameter which specifies a particular PDP context definition <stat>...
Page 163 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SH - Socket Shutdown This command is used to close a socket. AT#SH=<connId> Parameter: <connId> - socket connection identifier 1..6 Note: a socket connection can be closed only when it is in suspended mode (with pending data too) and incoming connection mode.
Page 164 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SCFG - Socket Configuration <CR><LF> . . . #SCFG: <connId6>,<cid6>,<pktsz6>,<maxTo6>,<connTo6>,<txTo6> <CR><LF> Test command returns the range of supported values for all the sub parameters. AT#SCFG=? Example AT#SCFG=? #SCFG:(1-6),(1),(0,1-1500),(0,1-65535),(10-1200),(0,1-255) AT#SCFG? #SCFG: 1,1,300,90,600,50...
Page 165 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SCFGEXT - Socket Configuration Extended [,<unused_B>]] SRING : <connId> where: <connId> - socket connection identifier, as before 1 - data amount mode: SRING : <connId>,<recData> where: <connId> - as before <recData> - amount of data received on the socket connection 2 - data view mode: SRING : <connId>,<recData>,<data>...
Page 166 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SCFGEXT - Socket Configuration Extended Socket 3 set with data amount sring, hex data mode and no keepalive. AT#SCFGEXT? #SCFGEXT: 1,2,0,30,0,0 #SCFGEXT: 2,0,0,0,0,0 #SCFGEXT: 3,1,1,0,0,0 #SCFGEXT: 4,0,0,0,0,0 #SCFGEXT: 5,0,0,0,0,0 #SCFGEXT: 6,0,0,0,0,0 #CGPADDR –...
Page 167 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SD - Socket Dial <connId> - socket connection identifier [,<closureType> [,<lPort> 1..6 [,<connMode>]]] <txProt> - transmission protocol 0 - TCP 1 - UDP <rPort> - remote host port to contact 1..65535 <IPaddr>...
Page 168 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SD - Socket Dial Test command reports the range of values for all the parameters. AT#SD=? Open socket 1 in online mode Example AT#SD=1,0,80,”www.google.com”,0,0,0 CONNECT … Open socket 1 in command mode AT#SD=1,0,80,”www.google.com”,0,0,1...
Page 169 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SL - Socket Listen specified port. <listenState>, <listenPort> [,<lingerT>] Parameters: <connId> - socket connection identifier 1..6 <listenState> - 0 - closes socket listening 1 - starts socket listening <listenPort> - local listening port 1..65535...
Page 170 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SLUDP – UDP Socket Listen This command opens/closes a socket listening for an incoming connection on a AT#SLUDP= <connId>, specified port. <listenState>, <listenPort> Parameters: [,<lingerT>] <connId> - socket connection identifier 1..6 <listenState>...
Page 171 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SRECV – Received Data in Command Mode Execution command permits the user to read data arrived through a connected AT#SRECV= socket, but buffered and not yet read because the module entered command mode <connId>,...
Page 172 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SRECV – Received Data in Command Mode #SSEND – Send Data in Command Mode AT#SSEND= Execution command permits, while the module is in command mode, to send data <connId> through a connected socket.
Page 173 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SSENDEXT – Send Data in Command Mode extended 1..6 <bytestosend> - number of bytes to be sent Please refer to test command for range The device responds to the command with the prompt ‘> ’ <greater_than><space>...
Page 174 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 174 of 261...
Page 175 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #FTPTO - FTP Time-Out AT#FTPTO= Set command sets the time-out used when opening either the FTP control channel [<tout>] or the FTP traffic channel. Parameter: <tout> - time-out in 100 ms units 100..5000 - hundreds of ms (factory default is 100)
Page 176 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #FTPCLOSE - FTP Close Execution command closes an FTP connection. AT#FTPCLOSE Test command returns the OK result code. AT#FTPCLOSE=? #FTPPUT - FTP Put Execution command, issued during an FTP connection, opens a data connection and AT#FTPPUT= [<filename>]...
Page 177 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #FTPTYPE - FTP Type Set command, issued during an FTP connection, sets the file transfer type. AT#FTPTYPE= [<type>] Parameter: <type> - file transfer type: 0 - binary 1 - ascii Note: The command causes an ERROR result code to be returned if no FTP connection has been opened yet.
Page 178 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #FTPPWD - FTP Print Working Directory Test command returns the OK result code. AT#FTPPWD=? #FTPCWD - FTP Change Working Directory AT#FTPCWD= Execution command, issued during an FTP connection, changes the working [<dirname>]...
Page 179 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #USERID - Authentication User ID specific value based on carrier’s specification). Note: this set command is only for authentication information of Simple IP system. Note: if a wireless service provider supports only Simple IP data network system such as SK telecom in Korea you need to set this information for data connection.
Page 180 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PASSW - Authentication Password connection. Note : if a wireless service provider supports Mobile IP preferred(like Verizon or Verizon MVNO) or Mobile IP only data network system(like Sprint or Sprint MVNO) you do not need to set this information because this information is set by a network via OTA or other method based on carrier’s specification at an initial data connection.
Page 181 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PKTSZ - Packet Size ->value automatically chosen by device #DSTO -Data Sending Time-Out AT#DSTO= Set command sets the maximum time that the module awaits before sending [<tout>] anyway a packet whose size is less than the default one.
Page 182 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTTO - Socket Inactivity Time-Out Test command returns the allowed values for parameter <tout>. AT#SKTTO=? Example AT#SKTTO=30 ->(30 sec. time-out) AT#SKTTO? #SKTTO: 30 Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved...
Page 183 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTSET - Socket Definition AT#SKTSET= Set command sets the socket parameters values. [<socket type>, Parameters: <remote port>, <remote addr>, <socket type> - socket protocol type [<closure type>], 0 - TCP (factory default) [<local port>]]...
Page 184 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTOP - Socket Open Execution command activates the context number 1, proceeds with the AT#SKTOP authentication with the user ID and password previously set by #USERID and #PASSW commands, and opens a socket connection with the host specified in the #SKTSET command.
Page 185 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CACHEDNS - DNS Response Caching 0 - caching disabled; it cleans the cache too 1 - caching enabled Note: the validity period of each cached entry (i.e. how long a DNS response remains valid) is determined by a value called the Time To Live (TTL), set by the administrator of the DNS server handing out the response.
Page 186 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #DNS – Manual DNS Selection issuing AT#DNS=… raises an error. Read command returns the manual DNS servers settings in the format: AT#DNS? #DNS: <cid>,<primary>,<secondary> AT#DNS=? Test command reports the supported range of values for the <cid>...
Page 187 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTSAV - Socket Parameters Save - Remote Port - Remote Address - TCP Connection Time-Out Note: User ID and Password will not be affected by this command execution. It means that they are not saved in NVM at all.
Page 188 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTRST - Socket Parameters Reset Execution command resets the actual socket parameters in the NVM of the device AT#SKTRST to the default ones. The socket parameters to reset are: - User ID...
Page 189 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CDMADC – CDMA Data Connection where: <status> 0 - CDMA PDP context deactivated 1 - CDMA PDP context activated 2 - CDMA PDP context activation pending. Test command returns the allowed values for parameter <mode>.
Page 190 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTD - Socket Dial Note: the resolution of the host name is done when opening the socket, therefore if an invalid host name is given to the #SKTD command, then an error message will be issued.
Page 191 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTL - Socket Listen Command returns the OK result code if successful. Note: the command to be successful requests that: - the authentication parameters are set (#USERID, #PASSW) - the CDMA coverage is enough to permit a connection...
Page 192 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SKTL - Socket Listen Start listening AT#SKTL=1,0,1024 AT#SKTL=1,0,1024,255 Receive connection requests +CONN FROM: 192.164.2.1 CONNECT exchange data with the remote host send escape sequence NO CARRIER Now listen is not anymore active...
Page 193 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #E2SLRI - Socket Listen Ring Indicator Test command returns the allowed values for parameter <status>. AT#E2SLRI=? #FRWL - Firewall Setup AT#FRWL= Execution command controls the internal firewall settings. [<action>, <ip_address>, Parameters: <net mask>]...
Page 194 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #FRWL - Firewall Setup Note For outgoing connections made with #SKTOP and #SKTD the remote host is dynamically inserted into the ACCEPT chain for all the connection duration. Therefore, the #FRWL command shall be used only for defining the #SKTL behaviour, deciding which hosts are allowed to connect to the local device.
Page 195 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ICMP – ICMP Ping Support AT#ICMP=<mode> Set command enables/disables the ICMP Ping support. Parameter: <mode> 0 - disable ICMP Ping support (default) 1 - enable firewalled ICMP Ping support: the module is sending a proper ECHO_REPLY only to a subset of IP Addresses pinging it;...
Page 196 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PING – Ping Request <timeout> - The timeout, in 100 ms units, waiting a single Echo Reply: 1-600 (default 50) <ttl> - Time to live: 1-255 (default 128) AT#PING=? Test command reports the supported range of values for the #PING command...
Page 197 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #TCPREASS – TCP Reassembly AT#TCPREASS= Set command enables/disables the TCP reassembly feature, in order to <n> handle fragmented TCP packets. Parameter: <n> 1 - enable TCP reassembly feature(default) Read command returns whether the TCP reassembly feature is enabled or...
Page 198 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ESMTP - E-mail SMTP Server AT#ESMTP= Set command sets the SMTP server address, used for E-mail sending. [<smtp>] SMTP server can be specified as IP address or as nick name. Parameter: <smtp>...
Page 199 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #EUSER - E-mail Authentication User Name Set command sets the user identification string to be used during the authentication AT#EUSER= step of the SMTP. [<e-user>] Parameter: <e-user> - e-mail authentication User ID, string type.
Page 200 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #EPASSW - E-mail Authentication Password Set command sets the password string to be used during the authentication step of AT#EPASSW= [<e-pwd>] the SMTP. Parameter: <e-pwd> - e-mail authentication password, string type.
Page 201 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SEMAIL - E-mail Sending With CDMA Context Activation ERROR:<err> response before issuing further commands. Test command returns the OK result code. AT#SEMAIL=? Example AT#SEMAIL="me@myaddress.com","subject of the mail",0 >message body… this is the text of the mail message…...
Page 202 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #EMAILD - E-mail Sending Execution command sends an e-mail message if CDMA context has already been AT#EMAILD= [<da>[, activated with AT#SGACT=1,1 or AT#EMAILACT=1 <subj>[,<att>]]] Parameters: <da> - destination address, string type.
Page 203 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ESAV - E-mail Parameters Save E-mail SMTP server AT#ESAV=? Test command returns the OK result code. Note If some parameters have not been previously specified then a default value will be taken.
Page 204 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #EMAILMSG - SMTP Read Message Execution command returns the last response from SMTP server. AT#EMAILMSG Test command returns the OK result code. AT#EMAILMSG=? Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved...
Page 205 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $GPSP - GPS Controller Power Management Set command allows to manage power-up or down of the GPS controller AT$GPSP=<status> Parameter: <status> 0 - GPS controller is powered down (default) 1 - GPS controller is powered up Note: the current setting is stored through $GPSSAV Read command reports the current value of the <status>...
Page 206 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $GPSR - GPS Reset mode only. Test command reports the range of supported values for parameter <reset_type> AT$GPSR=? Example AT$GPSR=0 Note $GPSAT - GPS Antenna LNA Control Test command reports the range of supported values for parameter <type>...
Page 207 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $GPSNMUN - Unsolicited NMEA Data Configuration 3 - dedicated NMEA data stream; it is not possible to send AT commands; with the escape sequence ‘+++’ the user can return to command mode –...
Page 208 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $GPSNMUN - Unsolicited NMEA Data Configuration $GPSACP - Get Acquired Position Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 208 of 261...
Page 209 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $GPSACP - Get Acquired Position $GPSSAV - Save GPS Parameters Configuration Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 209 of 261...
Page 210 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $GPSSAV - Save GPS Parameters Configuration $GPSRST - Restore To Default GPS Parameters “ ” $GPSPORT - Change GPS Port from DATA to NMEA $GPSPATH - Select GPS Antenna Path Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved...
Page 211 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 – – $GPSCLRX – Clear GPS Data Resets all parameters related with GPS as following: - GPS Almanac Data - GPS Ephemeris Data - LBS User Plane PDE IP Address Test command returns $GPSLOCK –...
Page 212 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Parameter: <mode> 0 – GPS Unlock 1 – Mobile initiated call is locked 2 – Mobile Terminated call is locked. – Note: Read command reports the current value of the <mode>...
Page 213 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CAI – Common Air Interface parameters _prev>,<in_use_prev>,<rssi>,<ecio>,<tx_adj>,<rx_state>,<rx_rate>,<tx_rate >,<service_opt>,<slot_index>,<fer>,<voice_priv>,<band> Parameter: <sid> - Integer value of current system ID <nid> - Integer value of current network ID <bsid> - Integer value of current base station ID <packetid>...
Page 214 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CAI – Common Air Interface parameters Example AT#CAI? #CAI: 4376,30,522,30,350,330,6,6,6,-85,-5,0,2,0,0,0,2,0,0,1 AT#CAI=? #MODEM – Modem Configure parameters AT#MODEM Set/Read command returns the modem configuration parameters of the module. [=<index>]? Parameter: <index> 0 .. 13 - To get specific modem configuration parameter value of the module #MODEM: <mdn>,<msin>,<vbatt>,<temp>,<systemtime>,<calltime>,<totalc...
Page 215 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #MODEM – Modem Configure parameters <lock> - Current Lock Status 0: Not Locked 1: Registration Lock <prlver> - Current PRL Version <deepsleep> - Current Deep Sleep Status 0: Wake Up 1: Deep Sleep...
Page 216 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ENG – Mobile NAM parameters 15 – CDMA Secondary Channel(A) 16 – CDMA Secondary Channel(B) 17 – SID-NID pair 18 – The Preferred Forward & Reverse RC value 19 – Slot Mode...
Page 217 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ENG – Mobile NAM parameters Example AT#ENG? #ENG: 6,310,00,9,1,1,1,42,2,1234567890,9135069409,5,4,283,384,691,777,(4139,655 35),(0,0),0 AT#ENG=9? #ENG: 1234567890 AT#ENG=1:400,2:06 AT#ENG=1,2? #ENG: 400,06 #MODE – Change Operational Mode of Modem AT#MODE This command changes the operational mode of the modem [=<mode>]?
Page 218 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #MODE – Change Operational Mode of Modem AT#MODE=ONLINE AT#MODE=RESET AT#MODE=PWROFF #NOTI – CDMA Notification AT#NOTI= Set command sets to enable or disable related CDMA notification. <index>,<onoff> Parameter: <index> - CDMA notification selection 0 –...
Page 219 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #NOTI – CDMA Notification the output when the module moves between Domestic area and International area regarding data roaming. 15 – "#N11" the output when N11 digits dialled by user 16 – "#SERVICE"...
Page 220 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #NOTI – CDMA Notification #NOTI: 1,1,1,1,1,1,0,1,1,1,1,1,1,1,1,1,1,1 $MDN– Change Operational Mode of Modem This command manipulates the Mobile Directory Number of the module. AT$MDN=<mdn> Parameter: <mdn> - The mobile directory number expressed as a decimal phone-number.
Page 221 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +SERVICE – Notification of Service Parameter: <serv> 0 – No Service 1 – 1xRTT Service 2 – EVDO Release 0 3 – EVDO Release A 4 – GPRS(Not Support) Test command returns #SVCSTAT –...
Page 222 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #AKEY – Set the Authentication key AT#AKEY= Set command sets the Authentication key and Authentication key checksum value. <nam>, Parameter: <akey_high10>, < nam > - Nam number. <akey_low10>, <akey_high10> - High 10 digits of A-Key.
Page 223 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PREFRC – Preferred Radio Configuration AT#PREFRC= Set command sets the preferred radio configuration. <for_rc>,<rev_rc> Parameter: <for_rc> - integer forward radio configuration <rev_rc> - integer reverse radio configuration Note: This command is used to set the preferred RC for the forward and reverse channel.
Page 224 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #VOICEPRIV – Voice Privacy Setting AT#VOICEPRIV? #VOICEPRIV: 0 AT#VOICEPRIV=1 AT#VOICEPRIV? #VOICEPRIV: 1 #PREFVOC – Vocoder Setting Value Reading or Writing AT#PREFVOC= Set command sets vocoder setting value. <evrc>,<so1>, Parameter: <so2>,<so3> <evrc> - The mode of EVRC 0 –...
Page 225 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #PREFVOC – Vocoder Setting Value Reading or Writing AT#PREFVOC? #PREFVOC: 1,3,3,3 AT#PREFVOC=0,32768,32768,32768 AT#PREFVOC? #PREFVOC: 0,32768,32768,32768 #OTASPEN – OTASP Setting mode Parameter: <mode> 0 - disables OTASP 1 - enables Read command...
Page 226 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Example AT+CFG=? AT+CFG? +CFG: "" AT+CFG="data" AT+CFG? +CFG: "data" +CRM – RM Interface Setting “ ” “ ” “ ” “ ” <value> – – – Read command Test command reports the range of the parameter.
Page 227 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIP: 2 AT$QCMIP=0 AT+CRM=0 AT+CRM? +CRM: 0 AT$QCMIP=2 AT+CRM? +CRM: 2 +CTA – Data Inactivity Timer AT+CTA= Set command sets Um packet data inactivity timer <n> Parameter: <n> - Um packet data inactivity timer: 0 - Traffic Channel not released during inactivity periods.
Page 228 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +CTA – Data Inactivity Timer AT+CTA=30 AT+CTA? +CTA: 30 +PZID – Packet Zone ID AT+PZID? Displays the current <packet_zone_id> in the Extended System Parameters Message or the In-Traffic System Parameters Message.
Page 229 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #TESTORI – Test Origination Set command originates a(loopback) test call according to <idx > parameter. AT#TESTORI= <svc_opt>[,<num>] Parameter: < svc_opt > Service option for test call: – Rate Set 1 Loopback Service Option(Serivce Option: 0x02) –...
Page 230 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #CRXD – RX Diversity for CDMA Read command reports the current configuration, in the format: AT#CRXD? #CRXD: <1x rxd>,<evdo rxd> Reports the range of supported values for parameter <1x rxd>,<evdo rxd>...
Page 231 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #HDRPS – High Data Rate Protocol Suit 3 – Connection setup state. 4 – Suspends state. 5 – Connection setup suspend state. <Con state> 0 – Inactivity state. 1 – Connected state.
Page 232 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #MEIDESN – This command reports the MEID or the ESN of the module. Read command returns the MEID or the ESN of the module in format: AT#MEIDESN? #MEIDESN: <meid>,<esn_dec>,<esn_hex> Parameter: <meid> - string 14-digit decimal of MEID <esn_dec>...
Page 233 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ALERTSND – Alert Sound Setting ’ [<index>,<onoff>…] Parameter: <index> <onoff> Note: Number of Index can be increased later Note: Read command returns current alert sound setting in the format: #ALERTSND: <onoff(for index 1)>,<onoff(for index 2)>, …...
Page 234 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #EMERGALERT – Emergency Call Tone Setting Parameter: <mode> 0: Disable the alert tone for emergency dialing. (default) Read command reports current Emergency call tone setting in the format: Reports the range of supported values for parameter < mode >...
Page 235 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #NAMLOCK – Lock NAM Parameter: <n> 0: Disable NAM LOCK (default) 1: Enable NAM LOCK Read command returns the current NAM LOCK setting in the format: Reports the range of supported values for parameter < n >...
Page 236 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +VCMGR - Read Message Execution command reports the message with location value <index> from AT+VCMGR= <index> <memr> message storage (<memr> is the message storage for read and delete SMs as last settings of command +CPMS).
Page 237 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +VCMGR - Read Message <enc_type> - Encoding type of message. 0 - 8-bit Octet 2 - 7-bit ASCII 4 - 16-bit Unicode <length> - Length of message. <data> - Message data.
Page 238 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +VCMGL - List Messages Each message to be listed is represented in the format (the information written in italics will be present depending on +CSDH last setting): If there is at least a Received message or Sent/Unsent message to be listed the...
Page 239 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 +VCMGL - List Messages date as against AT+CMGL AT+VCMGL=? Test command returns a list of supported <stat>s Example #SMSMOEN – SMS Mobile Origination AT#SMSMOEN This command sets which SMS MO is available or not.
Page 240 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SMSSO – Service Option for SMS #SMSSO: (0,6,14) AT#SMSSO? #SMSSO: 6 AT#SMSSO=14 #SMSPSIZ – Set Payload Length This command set max payload length of SMS. AT#SMSPSIZ =<length> Parameter: <length> - Max payload length of SMS 0-220 (default is 160) Read command reports the current value of the parameter <...
Page 241 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #SMSAC – Select transport method to send SMS <method> - Transport method 0 - Traffic Channel (default) 1 - Access Channel AT#SMSAC? Read command reports the current value of the parameter < method >.
Page 242 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $PRL – Preferred Roaming List Read command returns the current device PRL id <id> in format: AT$PRL? $PRL: <id> AT$PRL=? Test command returns the OK result code. Example AT$PRL=? AT$PRL? $PRL: 10052 $RESET –...
Page 243 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #DEFAULTBAND – Set Default Band PRL has a PREF ONLY setting set to FALSE, When it is set to FALSE, the mobile station’s System select setting shall provide the options of Home Only, Automatic- A, and Automatic-B.
Page 244 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ERI – Enhanced Roaming Indicator <icn_mode> - Icon Mode. If <ind_id>=0~2, <icn_mode>=0. <call_prmt_id> - Call Prompt ID. If <ind_id>=0~2, <call_prmt_id>=0. <alert_id> - Alert ID. 0 - Verizon Wireless. 1 - Network Extender.
Page 245 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 #ERI – Enhanced Roaming Indicator #ERIDATA – Enhanced Roaming Indicator Version AT#ERIDATA? Read command returns the current device ERI Version <eri_data_ver> in format: #ERIDATA: <eri_data_ver> Note: ERI file not include or invalid ERI file in the current device, <eri_data_ver>=”None”.
Page 246 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPNAI – Network Access Identifier Returns the range of parameters. AT$QCMIPNAI=? $QCMIPNAI: (20,21,23-7E),(0,1) Note: 1st parameter of $QCMIPNAI always returns (20,21,23-7E) which is the rang e of printable ASCII characters. The maximum size is 70bytes.
Page 247 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPPHA – Primary Home Agent Address AT$QCMIPPHA=255.255.255.255,0 AT$QCMIPPHA? $QCMIPPHA: 255.255.255.255,0 AT$QCMIPPHA=63.168.238.41,1 AT$QCMIPPHA? $QCMIPPHA: 63.168.238.41,1 $QCMIPSHA – Secondary Home Agent Address This command sets the secondary home agent address. AT$QCMIPSHA= <address>,<store_nv> Parameter: <address>...
Page 248 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPSHA – Secondary Home Agent Address AT$QCMIPSHA=63.168.238.41,1 AT$QCMIPSHA? $QCMIPSHA: 63.168.238.41,1 $QCMIPHA – Home Address AT$QCMIPHA= This command sets the home address. <address>,<store_nv> Parameter: <address> - IP address IP address of home address.
Page 249 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPMHSSX – set the MIP password This command sets the MIP password. AT$QCMIPMHSSX= <password>,<store_nv> Parameter: <password> - Password <store_nv> - Data store option 0: store in RAM 1: store in NV...
Page 250 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPMASSX – AAA server shared secret $QCMIPMASSX: <set> <set> - setting status Set – parameter is set Unset – parameter is not set Note: the value is not displayed. AT$QCMIPMHSSX=? Returns the range of parameters.
Page 251 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPMHSPI – set the MIP security parameter index AT$QCMIPMHSPI? $QCMIPMHSPI: 3,1 AT$QCMIPMHSPI=4,0 AT$QCMIPMHSPI? $QCMIPMHSPI: 4,0 $QCMIPMASPI – set the MIP AAA server security parameter index AT$QCMIPMASPI= This command sets the MIP AAA server security parameter index.
Page 252 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPRT – Reverse tunnelling preference This command sets the reverse tunneling preference. AT$QCMIPRT= <rev_tun>,<store_nv> Parameter: <rev_tun> - Reverse tunneling preference 0 : disable 1 : enable <store_nv> - Data store option...
Page 253 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIP – Enable/Disable mobile IP network that does not support Mobile IP, the mobile will drop the session and inform the upper layers of the failure (for example, by dropping DCD to a laptop).
Page 254 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPP – active MIP user profile selection used by users to configure Dial-Up Networking AT$QCMIPP? Read command returns the current status in format: $QCMIPP: <index> AT$QCMIPP=? Returns the range of parameters.
Page 255 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPEP – current MIP profile $QCMIPGETP – profile information This command returns all information corresponding to the specified profile AT$QCMIPGETP= number. <n> Parameter: <n> Profile number, 0-5. Note: If no profile number is entered, all information corresponding to the currently active profile is returned.
Page 256 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPMASS – MN-AAA shared secrets This command sets the MN-AAA shared secrets for the currently active MIP AT$QCMIPMASS= profile. <val>,<store_nv> Parameter: <val> - Shared secret data (Max size is 16bytes) Note: Double quotes are only required if the string contains a comma.
Page 257 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMIPMHSS – MN-HA shared secrets AT$QCMIPMHSS? Displays the current setting AT$QCMIPMHSS=? Returns the range of parameters. $QCMIPMHSS: (20,21,23-7E),(0,1) Example AT$QCMIPMHSS? $QCMIPMHSS: Unset AT$QCMIPMHSS=secret data AT$QCMIPMHSS? $QCMIPMHSS: Set AT$QCMIPMHSS=? $QCMIPMHSS: (20,21,23-7E),(0,1) $QCMDR – the medium data rate setting This command changes the medium data rate settings.
Page 258 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 $QCMDR – the medium data rate setting AT$QCMDRr? $QCMDR: 3 AT$QCMDR=3 The following AT Command list can be aborted, while executing the AT Command +FRS +FRH +FRM +CLCC +COPN +CLIP +CLIR NOTE: If DTE transmit any character before receiving the response to the issued AT Command, this makes current AT Command to be aborted.
Page 259 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 ARFCN Absolute Radio Frequency Channel Number Attention command BCCH Allocation BCCH Broadcast Control Channel Cell Allocation Cell Broadcast Message Cell Broadcast Service Current Call Meter CLIR Calling Line Identification Restriction Clear To Send...
Page 260 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Simple Mail Transport Protocol SMTP Terminal Adapter Transmission Control Protocol Terminal Equipment User Datagram Protocol Unstructured Supplementary Service Data USSD Coordinated Universal Time Vertical dilution of precision VDOP Course over ground and ground speed Reproduction forbidden without Telit Communications S.p.A.
Page 261 DE910-DUAL AT commands reference guide 80392ST10102A Rev.2 – 2012-07-03 Revision Date Changes 2011-11-29 Release for Beta samples 2012-03-28 Release for Verizon 2012-07-03 Verizon TA update Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 261 of 261...

Telit Wireless Solutions DE910-DUAL Reference Manual

Quick Links

Need help?

Questions and answers

Related Manuals for Telit Wireless Solutions DE910-DUAL

Summary of Contents for Telit Wireless Solutions DE910-DUAL
