Quantum Q-LOGIC 3e Manual page 21

Auxillary Functions continued

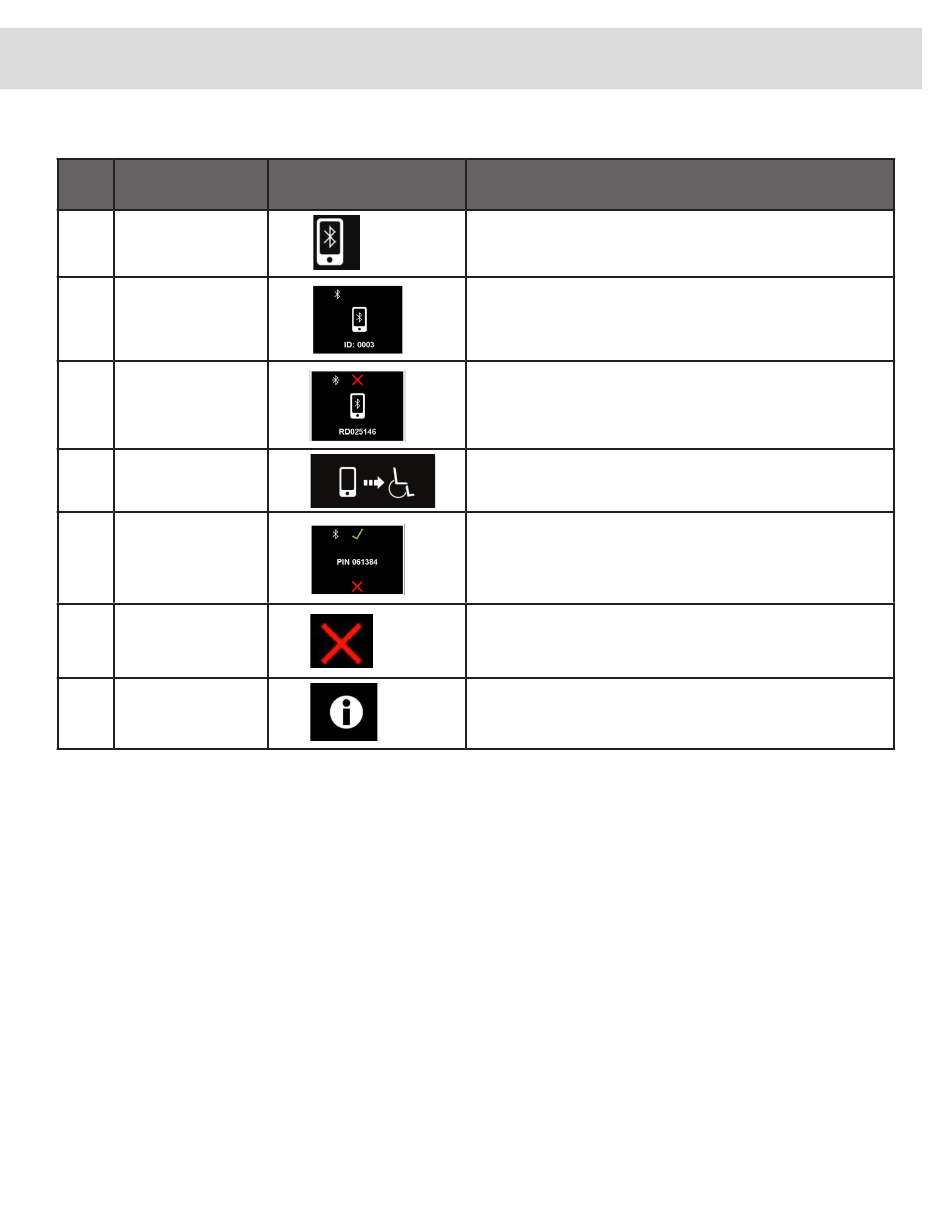

Item Icon Name
M12 BT Programming
M13 BT Connection ID
M14 BT Connection
M16 BT Access confirm
M17 BT key confirm
M18 Abort
M19 Provider information
Icon Visual
Wireless Bluetooth programming access icon (tablet/phone).
Shows Power Chair Bluetooth Identification number
Bluetooth connected push up to abort. Device ID connected on
bottom.
Icon shows symbolic chair with a dotted line to the tablet/phone
device.
Icon shows symbolic key. Shown as well:
C2: "BT visible'.
C3: 'Select'
C4: System ID (font size as used for battery)
Key number
Shown as well:
M: 'BT programming' icon
T1-T3: Paired device name
C2: 'BT connected'
Information menu icon leading to provider information page, shown
as well: Select/Next/Previous.
