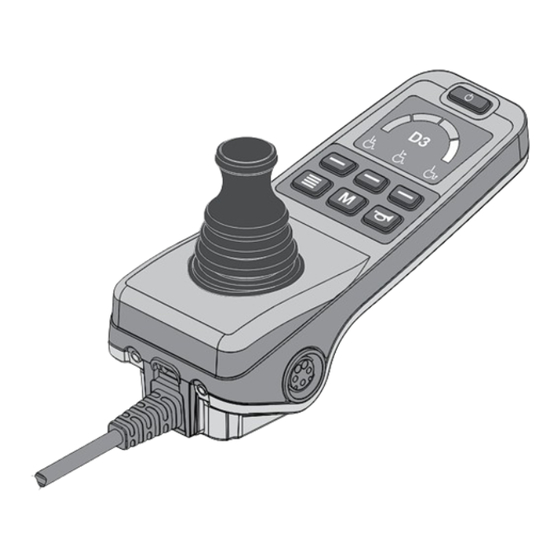

- Page 2 IDENTIFICATION KEY Power Button Joystick LCD Screen Soft Keys Horn Button Mode Button Page Button XLR Charger Port XLR Charger Port On/Off Mode Jacks USB-C Charger Port © Copyright 2020 INFMANU5154/Rev A/May 2020...
- Page 3 IDENTIFICATION KEY Attendant Control On/Off Button Battery Condition Meter Actuator Indicators Mode LED Mode Button Joystick On/Off and Mode Jacks...
- Page 4 WARNING! 60529). Indicates a potentially hazardous condition/situation. NOTE: The Q-Logic 3e Controller and its components Failure to follow designated procedures can cause either are not made with natural rubber latex. Consult with the personal injury, component damage, or malfunction. On manufacturer regarding any after-market accessories.
-
Page 5: Table Of Contents
The Q-Logic 3e Controller ........6 completely. Precautionary Guidelines ........6 Read and follow the instructions in Operating the Q-Logic 3e Controller ..... 6 the owner's manual. On/Off Button ............. 6 Joystick ..............6 Avoid exposure to rain, snow, ice, Lock/Unlock Procedure .......... -
Page 6: The Q-Logic 3E Controller
Operating the Q-Logic 3e Controller NOTE: This will take several seconds. The Q-Logic 3e hand control is used to operate your power chair and all of its components. 3. Move the joystick to the full reverse position until you hear a beep. -
Page 7: Keypad
The page button is used to cycle through the soft key pages. 1. Push the On/Off Button once to power on the chair and the controller. NOTE: The soft key pages can be changed by your Quantum 2. Press the light soft keys button once to activate the front Rehab Provider. -
Page 8: Lcd Screen
BASIC OPERATION INSTRUCTIONS LCD Screen The Q-Logic 3e provides the user with easily intuited feedback information via the LCD screen. The top left corner of the screen will indicate any drive restrictions. No icon Full drive speed Inhibit Status Indicator... -
Page 9: Drive Profile Selection
BASIC OPERATION INSTRUCTIONS Drive Profile Selection Your Q-Logic 3e Controller may be programmed for up to four drive profiles that allow the system to be custom-tailored to your environment. Profiles 1 – 3 may be selected by pressing the Mode button. The selected profile is displayed on the Drive Screen. -
Page 10: Ilevel Feature (Optional)
Failure to seat actuator. heed this warning can result in the power chair tipping over. To select and adjust the seat elevation using the Q-Logic 3e Always fasten the positioning belt when operating the Controller: power chair. - Page 11 BASIC OPERATION INSTRUCTIONS Reduced speed Safe Elevation restriction Full drive lockout Definitions of Indicators 1a - Safe Elevation 1b - Reduced speed restriction 1c - Full drive lockout iLevel not engaged Figure 2. Q-Logic 3e Controller Indicators...
-
Page 12: Settings Screen
The following pages explain the various screens you will use 1. Push the Mode button, until setting screen is displayed. with the Q-Logic 3e Controller. Contact your Quantum Rehab 2. Push the joystick up to enter the available setting Provider with any questions you may have. -
Page 13: Usb Charging
BASIC OPERATION INSTRUCTIONS USB Charging Port NOTE: This product has been tested for Electromagnetic The Q-Logic 3e hand control includes a USB-C port for and Radio Frequency Interference (EMI/RFI) and has met charging small devices. standard requirements. Please refer to the Consumer Safety Guide for more information regarding EMI/RFI. -
Page 14: Attendant Control
Attendant Control Thermal Rollback For more information on this applications, contact your The Q-Logic 3e Controller is equipped with a thermal rollback Quantum Rehab Provider. circuit that monitors the temperature of the power chair's motors and controller. If either exceeds the safe operating... -
Page 15: Battery Life Indicator
BASIC OPERATION INSTRUCTIONS Battery Life Indicator Q-Logic 3e Error Codes The Q-Logic 3e Controller system uses pop-ups to indicate The Q-Logic 3e Controller displays two types of messages: warning and error. See figure 4. the remaining battery life of the power chair. The system will show information screens when the battery voltage is at 50%, 30%, and 15%. -
Page 16: Care And Maintenance
16 BASIC OPERATION INSTRUCTIONS Care and Maintenance Refer to your power chair owner's manual for proper cleaning and disposal instructions. Temperature Some of the parts of your power chair are susceptible to extreme changes in temperature. Always keep your power chair between the temperatures of 18°F (-8°C) and 122°F (50°C). -
Page 17: Graphic User Interface Icons
BASIC OPERATION INSTRUCTIONS Graphic User Interface - General System Item Icon Name Icon visual Comments Power Shown when power cycle is required. Indicates a required action/input. Cycle DB backup Shows when system is backing up any changes made. DB restore Shows when system is restoring parameters from Power base. - Page 18 BASIC OPERATION INSTRUCTIONS GUI Icons - Drive Item Icon Name Icon visual Comments D1.1 Drive 1 to 4 Shown while in drive profile. 4 profiles. Example: D1. D1.2 Drive Indoor Icon to represent drive profile as opposed to Dx, must be programmed slow;...
- Page 19 BASIC OPERATION INSTRUCTIONS Seat Seatback Seating Rear (legs) Feet (legs) Seat Icons Item Icon Name Icon Visual Comments Main Seat Tilt Seating and seatback icon, both highlighted. Direction arrows, Forward forward highlighted. Main Seat Tilt Seating and seatback icon, both highlighted. Direction arrows, Backward backward highlighted.
- Page 20 BASIC OPERATION INSTRUCTIONS Seat Icons continuted Item Icon Name Icon Visual Comments Seat right leg up. Seat left leg up remains in place Seat right leg down. Seat left leg remains in place.. Auxillary Functions Item Icon Name Icon Visual Comments Settings Settings menu icon, selected with forward input.
- Page 21 BASIC OPERATION INSTRUCTIONS Auxillary Functions continued Item Icon Name Icon Visual Comments BT Programming Wireless Bluetooth programming access icon (tablet/phone). BT Connection ID Shows Power Chair Bluetooth Identification number BT Connection Bluetooth connected push up to abort. Device ID connected on bottom.
- Page 22 BASIC OPERATION INSTRUCTIONS Soft Key Functions The seat soft key icons will correspond to the respective seat screen icons. Item Icon Name Icon Visual Comments Speed up Allows to adjust upwards (in steps) max profile; speed down on Drive X (speed arc). Speed down Allows to adjust downwards adjust (in steps) max profile speed shown on Drive X (speed arc).
- Page 23 Warning will show iLevel icon and a level ground line integrated into warning icon. Warning Traction error Warning will show a traction control (ABS) icon integrated into warning icon for Quantum 4Front. Encoder Active Shows encoder enabled on drive screen. Encoder Error...
- Page 24 24 BASIC OPERATION INSTRUCTIONS...
- Page 25 BASIC OPERATION INSTRUCTIONS...
- Page 28 B.V. 401 York Avenue (Authorised EU Representative) Duryea, PA 18642 De Zwaan 3 www.quantumrehab.com 1601 MS Enkhuizen The Netherlands Canada www.quantumrehab.eu 5096 South Service Road Italy Beamsville, Ontario L0R 1B3 Via del Progresso, ang. Via del Lavoro www.quantumrehab.com Loc. Prato della Corte 00065 Fiano Romano (RM) Australia www.quantumrehab-italia.it...
