Quantum Q-LOGIC 3e Manual page 18

18 BASIC OPERATION INSTRUCTIONS

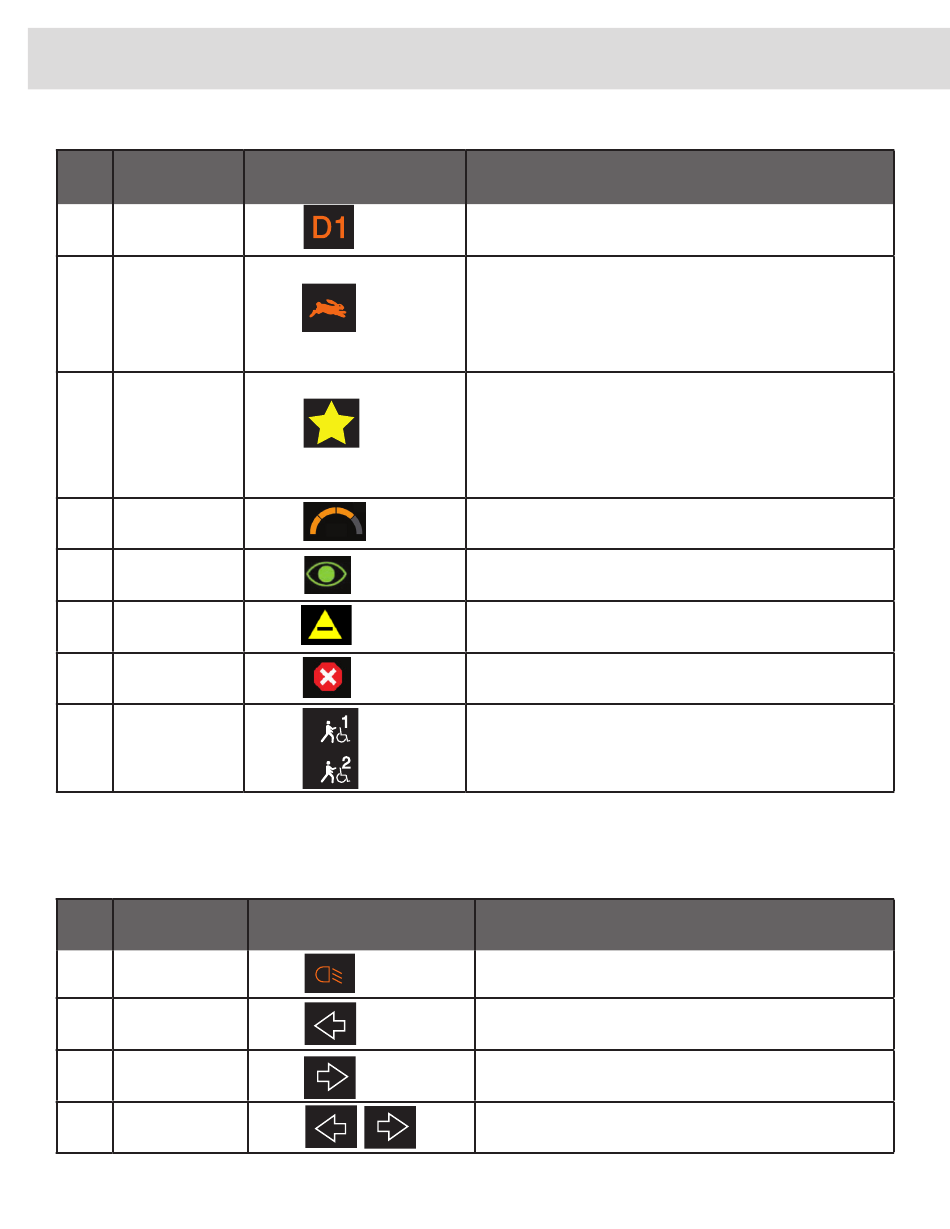

GUI Icons - Drive
Item Icon Name
D1.1 Drive 1 to 4
D1.2 Drive Indoor
slow; Drive indoor
moderate; Drive
outdoor fast; Drive
school; Drive work;
Drive ramp; Drive
sport
D1.3 Drive green circle;
Drive purple
pentagon; Drive
white square; Drive
red triangle; Drive
blue cross; Drive
yellow star
D2 Drive 5 - 100
D4 iLevel
D5 Drive restricted
D6 Drive Inhibited
D7 Attendant Drive
1/2
Lights, Indicators, Hazard
Item Icon Name
L1 Light on
L2 Indicator left on
L3 Indicator right on
L4 Hazzard on
Icon visual
Shown while in drive profile. 4 profiles. Example: D1.
Icon to represent drive profile as opposed to Dx, must be programmed
by the dealer. Outdoor fast icon shown.
Icon to represent drive profile as opposed to Dx, must be programmed
by dealer. Yellow star symbol shown.
Shows reachable profile speed with speed adjust setting. 19 items.
Example. 60%.
Shown if iLevel drive mode is active while seat is elevated. Shown in
drive and seat screens.
Shown if a drive speed restriction of any source is active. Shown in
drive and seat screens.
Shown if driving is inhibited. Shown in drive and seat screens.
The attendant drive has 2 profiles.
Icon shows while light status "on". No icon shows if light status
"off."
Icon shows while left indicator "on". Shall alternate on and off. No
icon shows if left indicator "off."
Icon shows while right indicator "on". Will alternate on and off. No
icon shows if right indicator "off."
Icons show while hazard status "on". Will alternate on and off. No
icons show if hazard "off." Use indicator icons.
